3849236 Hose Assembly | Genuine Volvo Penta Part

🔧 Product Description

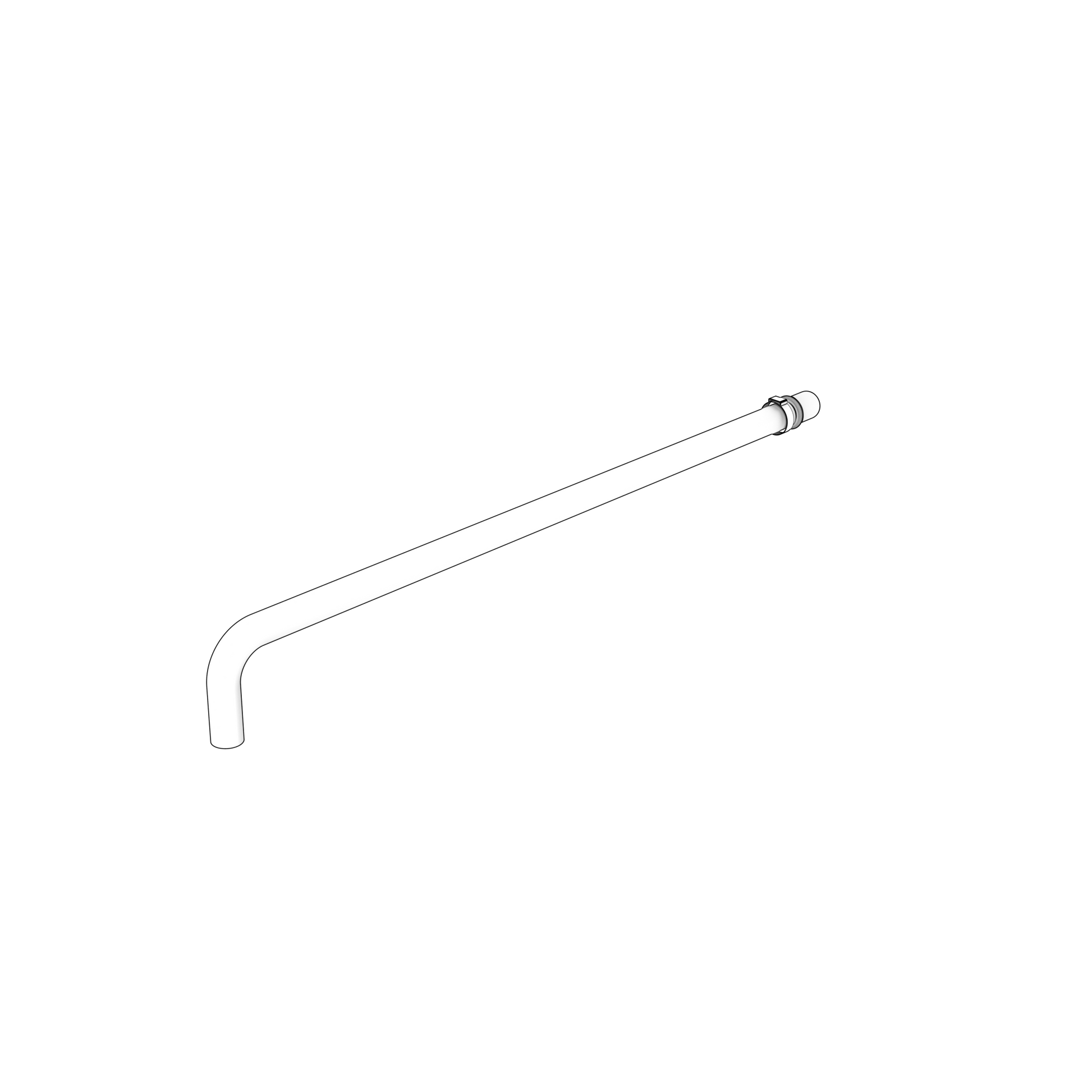

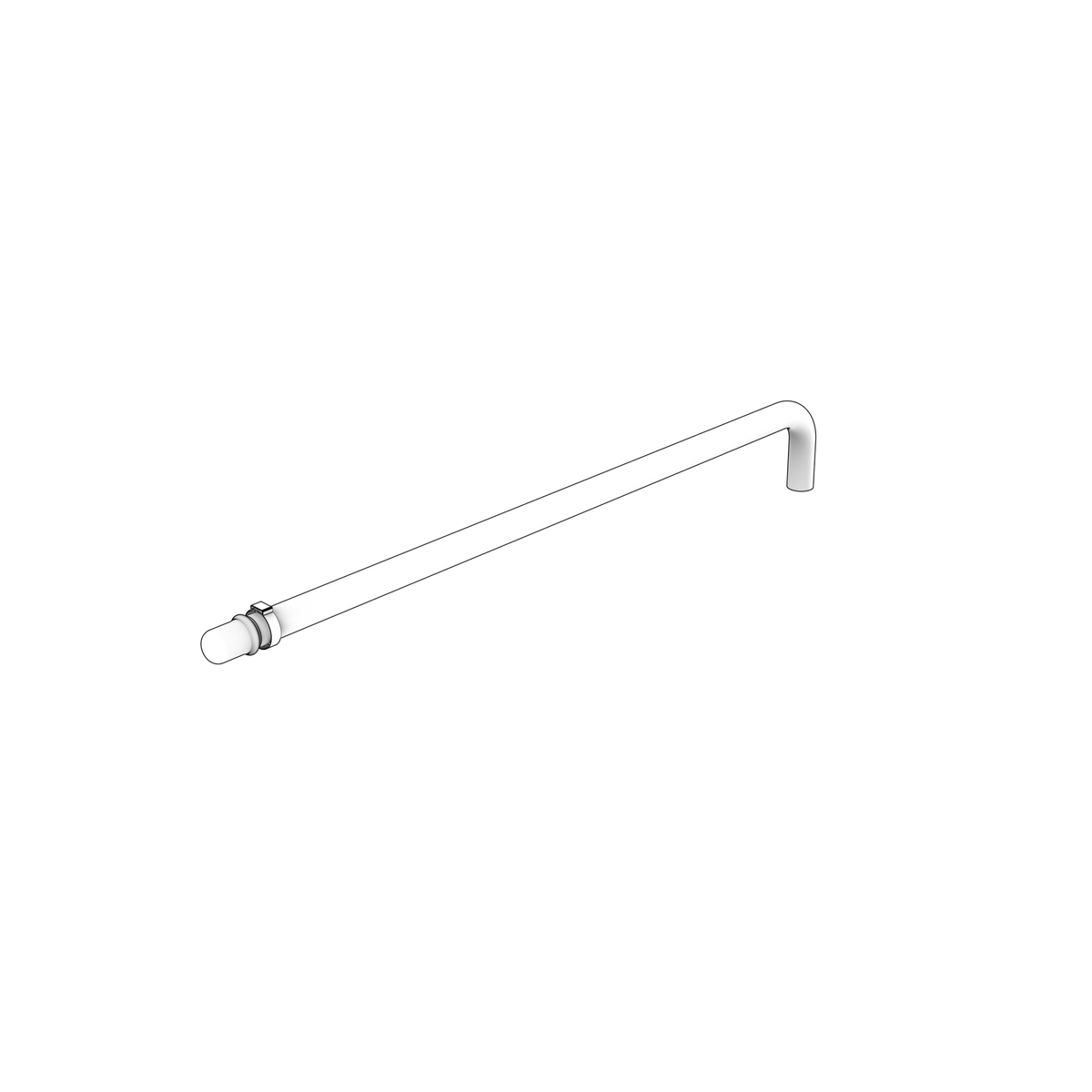

Genuine Volvo Penta oil hose assembly from the Lubricating and Oil System group, weighing 0.159 kg and listed for 123 applications across D-series engines, making it one of the most widely used items in this run. The catalogue note instructs that a non-return valve and a hose clamp should be ordered along with it.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.159 kg
• Order the non-return valve and hose clamp with it
• Lubricating and Oil System group
• 123 applications across D-series engines

🔌 Function

Carries oil along a flexible route between two points on the engine, taking up the movement a rigid pipe could not absorb.

⚠️ Common Signs of Failure

• Oil weeping or misting from a hose end
• Outer cover cracked, blistered or chafed
• Hose gone hard and brittle, or soft and swollen
• Oil trail on the engine below the hose run
• Oil pressure unsteady or dropping under load

🛠️ Service Notes

• The listing states that a non-return valve and a hose clamp should be ordered at the same time, so add both to the order rather than reusing the old ones
• Check the routing for chafe points and support the hose clear of hot surfaces before final tightening

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3885542 referenced in the part notes

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
