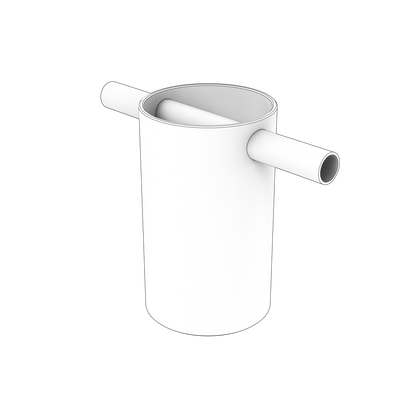

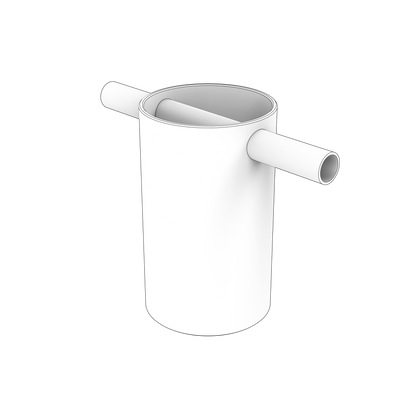

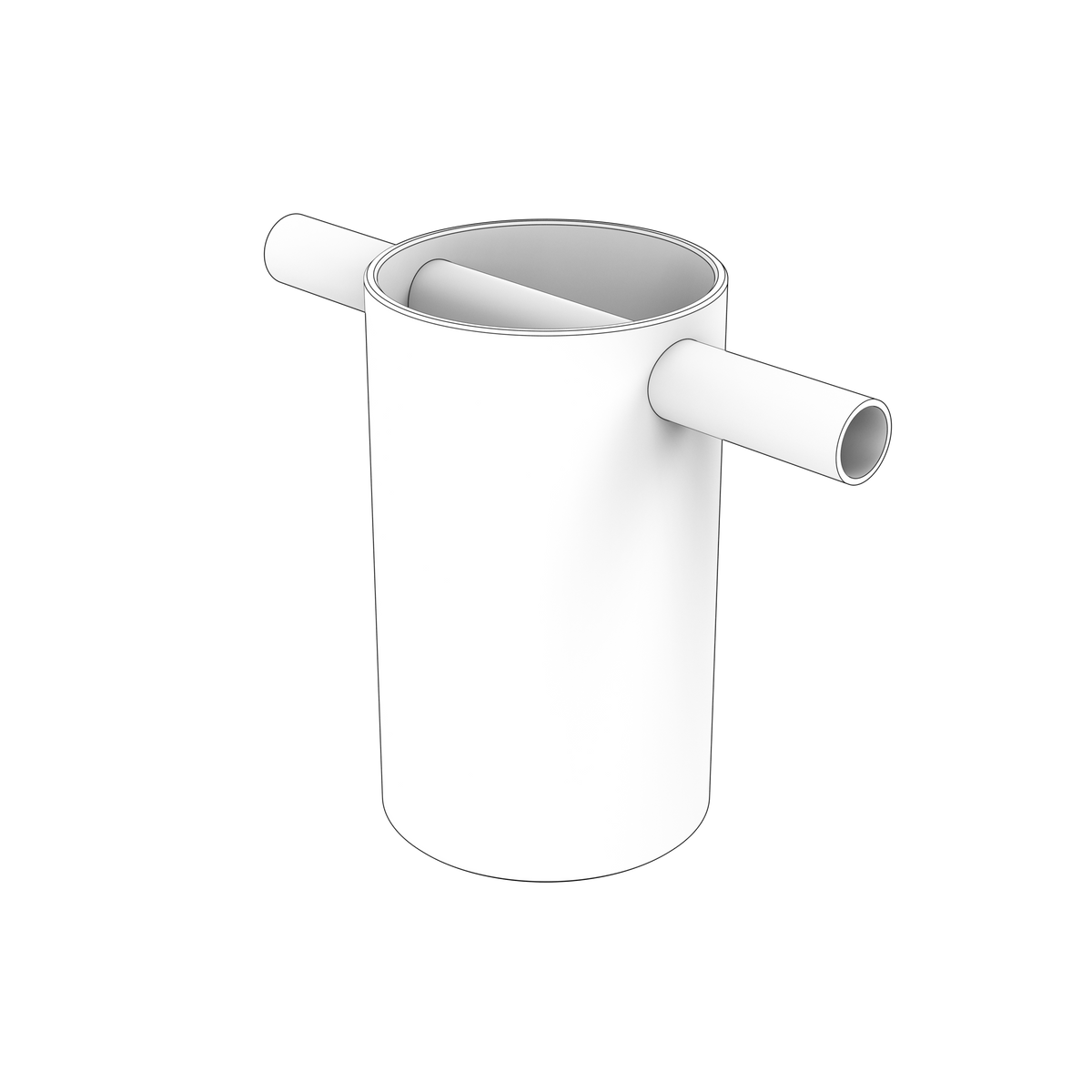

3849543 Fixture | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta fixture weighing 0.379 kg. Volvo Penta's special tools catalogue lists it on page 96 as a Fixture for the IPS-A, IPS-B, IPS-C, IPS-D, IPS-E and IPS-F pod drives, which replaces our earlier note that no applications were recorded. It is the lightest of the six fixtures in this run, all of which carry a published weight.

⚙️ Key Features

• Catalogued as a Fixture
• For IPS-A to IPS-F pod drives
• 0.379 kg
• Lightest of the six fixtures listed here
• Product-specific tool, not a universal one

🔌 Function

Holds a component in a known position while it is measured, pressed or assembled.

⚠️ Common Signs of Failure

• Locating faces worn or burred
• Bent or sprung after being levered against
• Locating pins or dowels worn loose
• Rust or pitting on the working surfaces

🛠️ Service Notes

• This is a workshop tool rather than a part fitted to the engine; use it only for the operation described in the workshop manual for your engine, and follow that procedure rather than improvising with it
• Inspect it before every use for bent or worn contact faces, damaged threads, cracks and previous makeshift repairs — a distorted fixture will give a false reading or let the component it holds move
• Never modify the fixture, pack it out, or use it to apply loads or leverage it was not made for; a slipping or overloaded fixture damages the component and is a safety risk
• Make sure it engages fully and squarely on the component and that any fasteners on the tool itself are tight before load is applied
• Clean it after use, wipe it lightly with oil, and store it dry so threads and machined faces stay true

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
