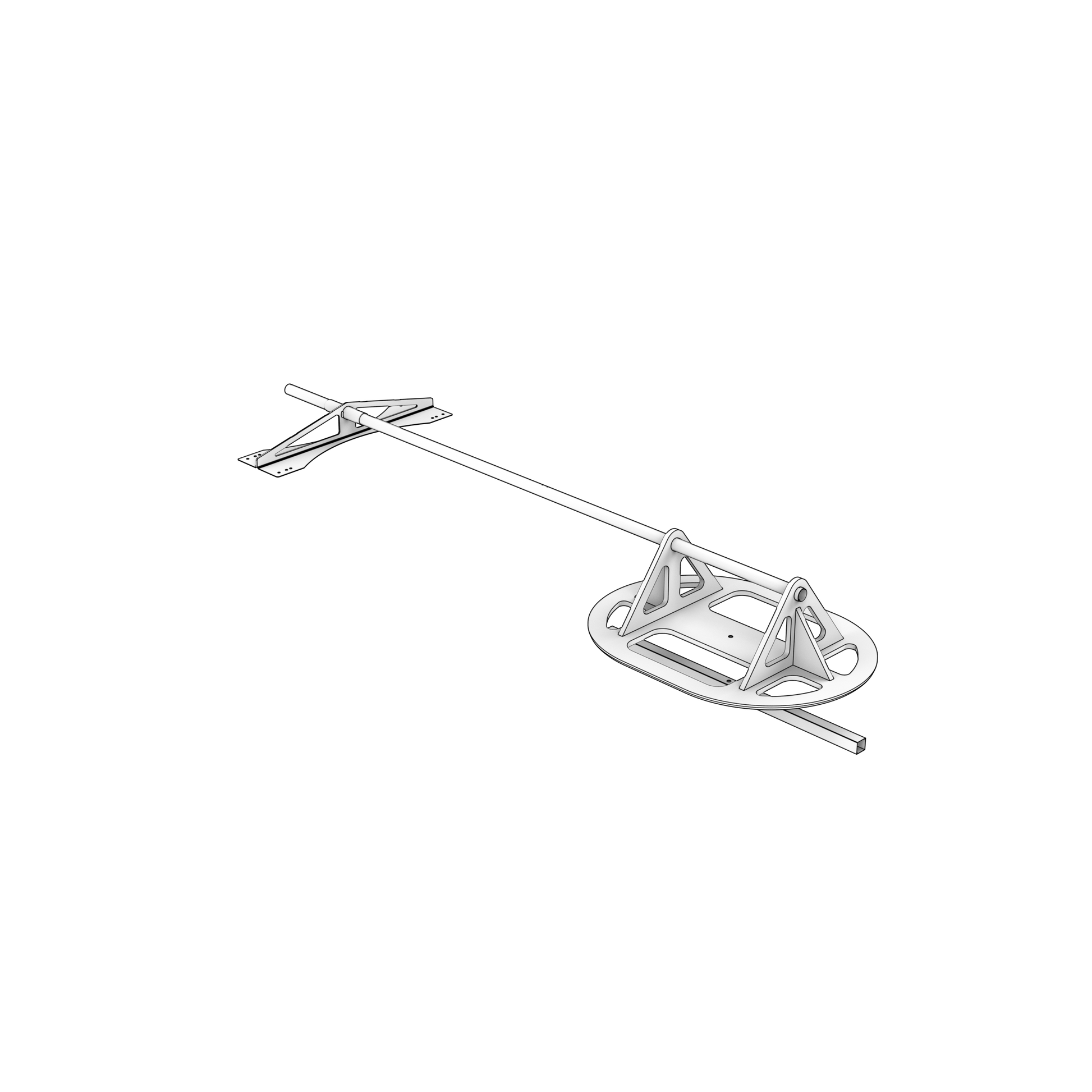

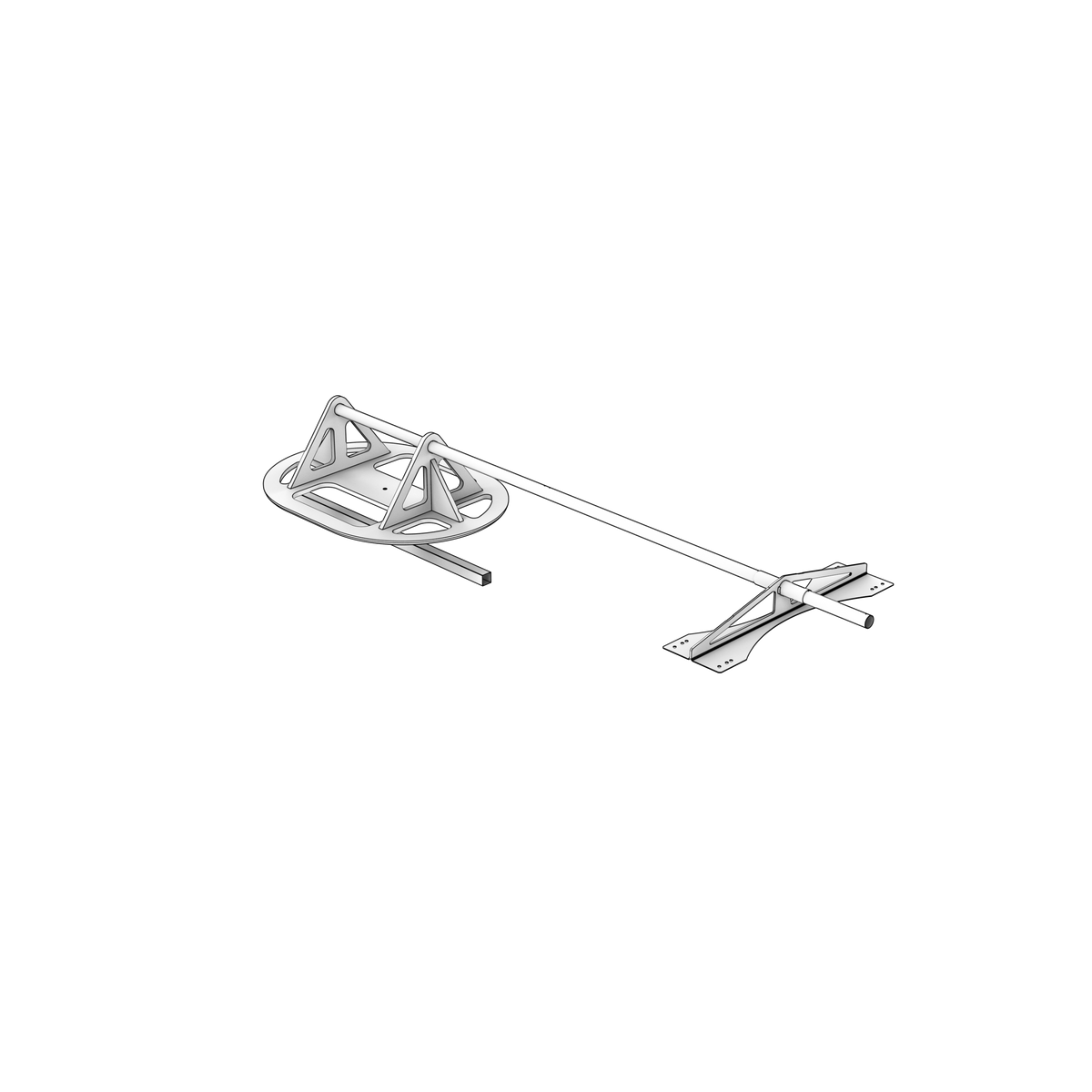

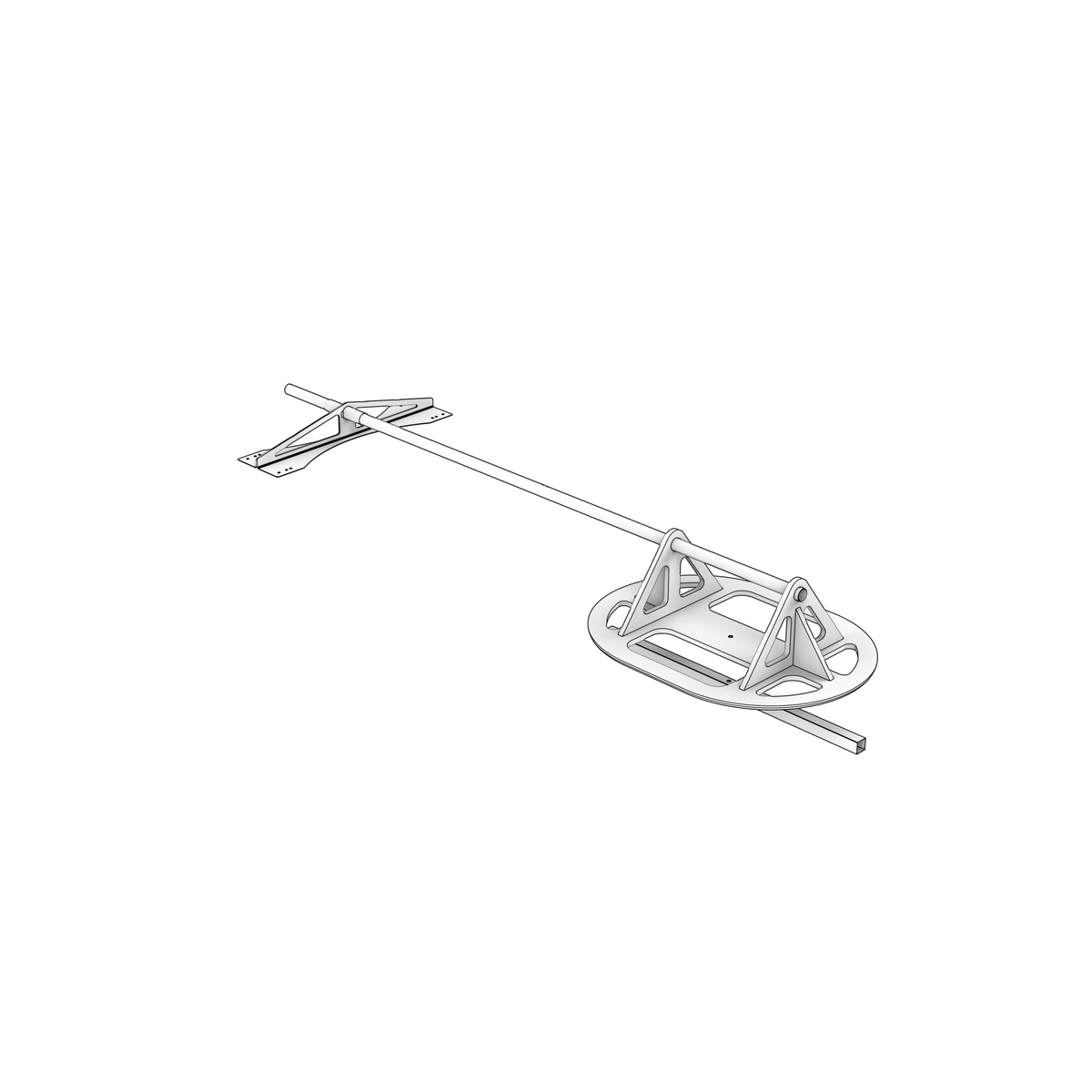

3849633 Drill jig | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta drill jig, listed at 74.843 kg with no engine models named against it. It is one of three drill jigs in this block, alongside 3594503 at 123.377 kg and 22584678 at 133.356 kg, and at this weight it is a freight item that needs handling arrangements.

⚙️ Key Features

• Drill jig, 74.843 kg
• No engine models listed against it
• One of three drill jigs listed here, with 3594503 and 22584678
• Freight item rather than a hand tool

🔌 Function

Holds the drill on the marked centres so holes are cut in the right place and square, without setting out by hand.

⚠️ Common Signs of Failure

• Drill bushes worn oversize, so the bit wanders off centre
• Frame bent or twisted after being dropped or overloaded
• Locating faces worn, so the jig no longer sits in one repeatable position
• Cracked welds at a load-bearing joint
• Rust on the locating and clamping faces after damp storage

🛠️ Service Notes

• Plan delivery, lifting and storage around the 74.843 kg shipping weight
• Order on the number the procedure names: the three drill jigs listed here differ in size, not in description

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
