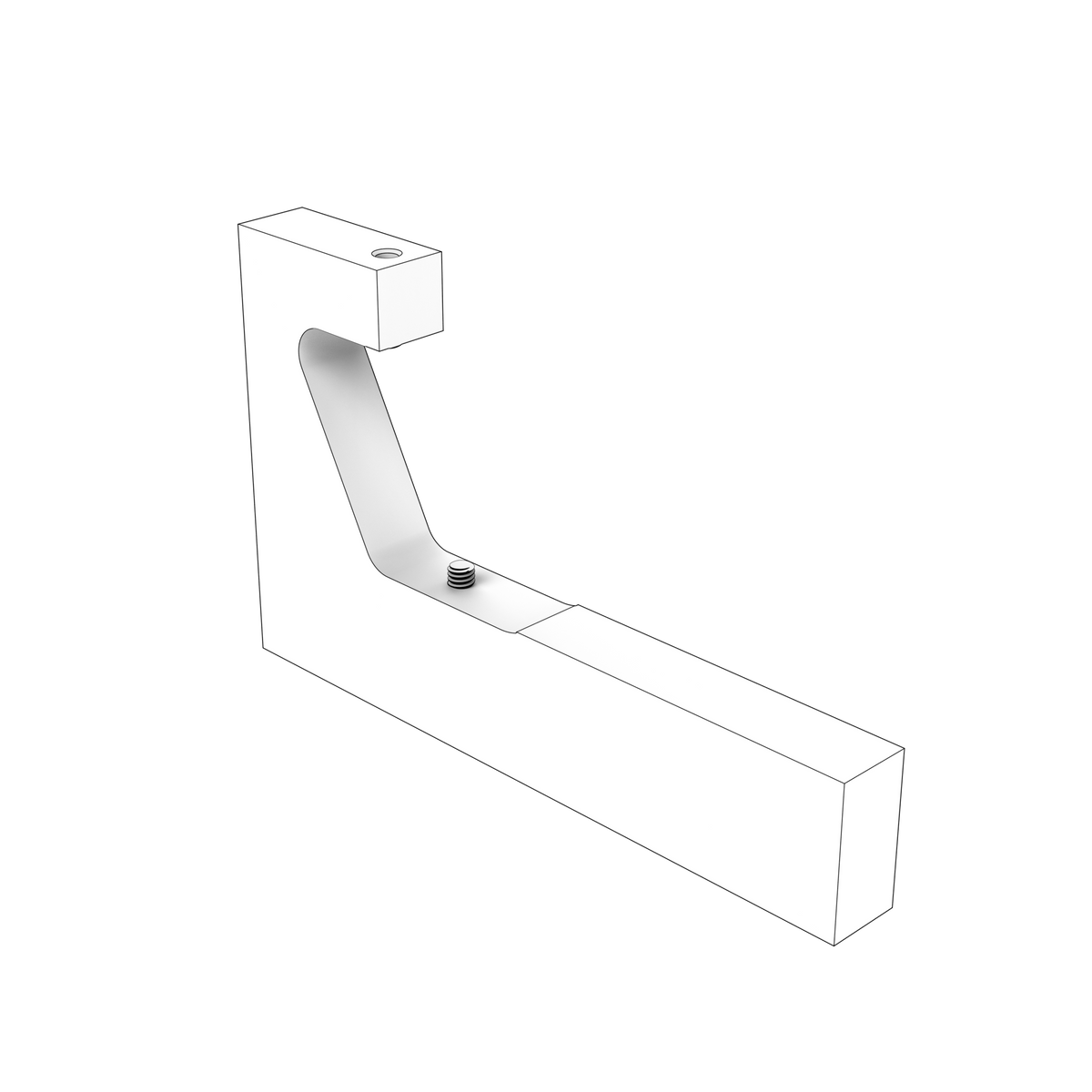

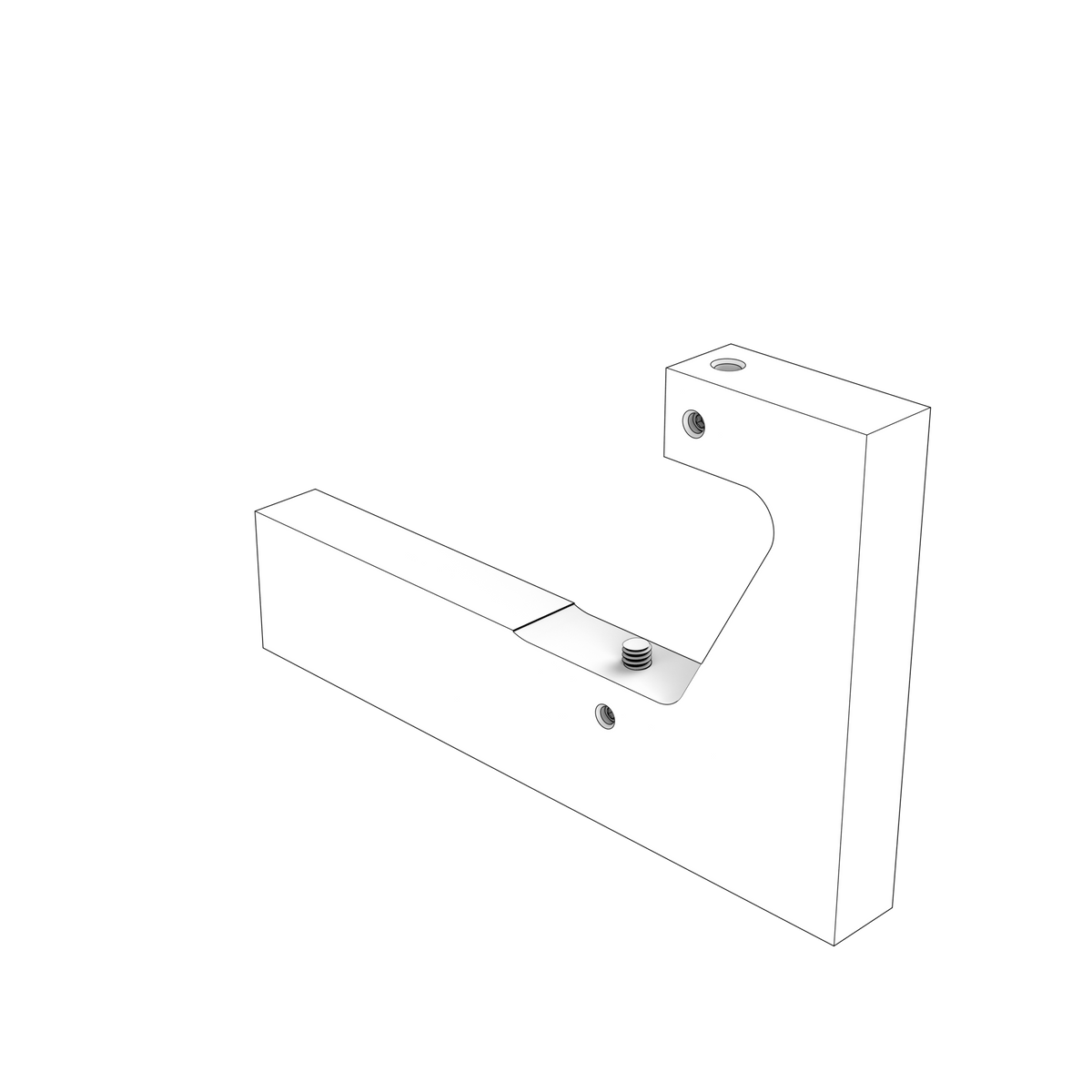

3849650 Tool | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta measuring tool weighing 0.397 kg, and the catalogue is specific about the job: on page 97 Volvo Penta lists it as a Measuring tool in the Overhaul class, used when measuring gear alignment. No product list is published against the number, so it is ordered against the procedure rather than against an engine.

⚙️ Key Features

• Used when measuring gear alignment
• Listed in the Overhaul tool class
• Catalogued as a Measuring tool
• 0.397 kg
• No product list published against this number

🔌 Function

Takes the gear alignment measurement the overhaul procedure calls for, giving a repeatable figure instead of a judgement by eye.

⚠️ Common Signs of Failure

• Measuring edge or contact face worn out of shape
• Distortion or a bow after being dropped or overloaded
• Locating features worn, giving a loose and inconsistent reading
• Rust on the measuring surfaces

🛠️ Service Notes

• A worn measuring face gives a plausible but wrong alignment figure, so check the contact surfaces before a reading is trusted
• Measuring tool 21244540 is the other measuring tool here, but it is in the Basic class - confirm which one your procedure names

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
