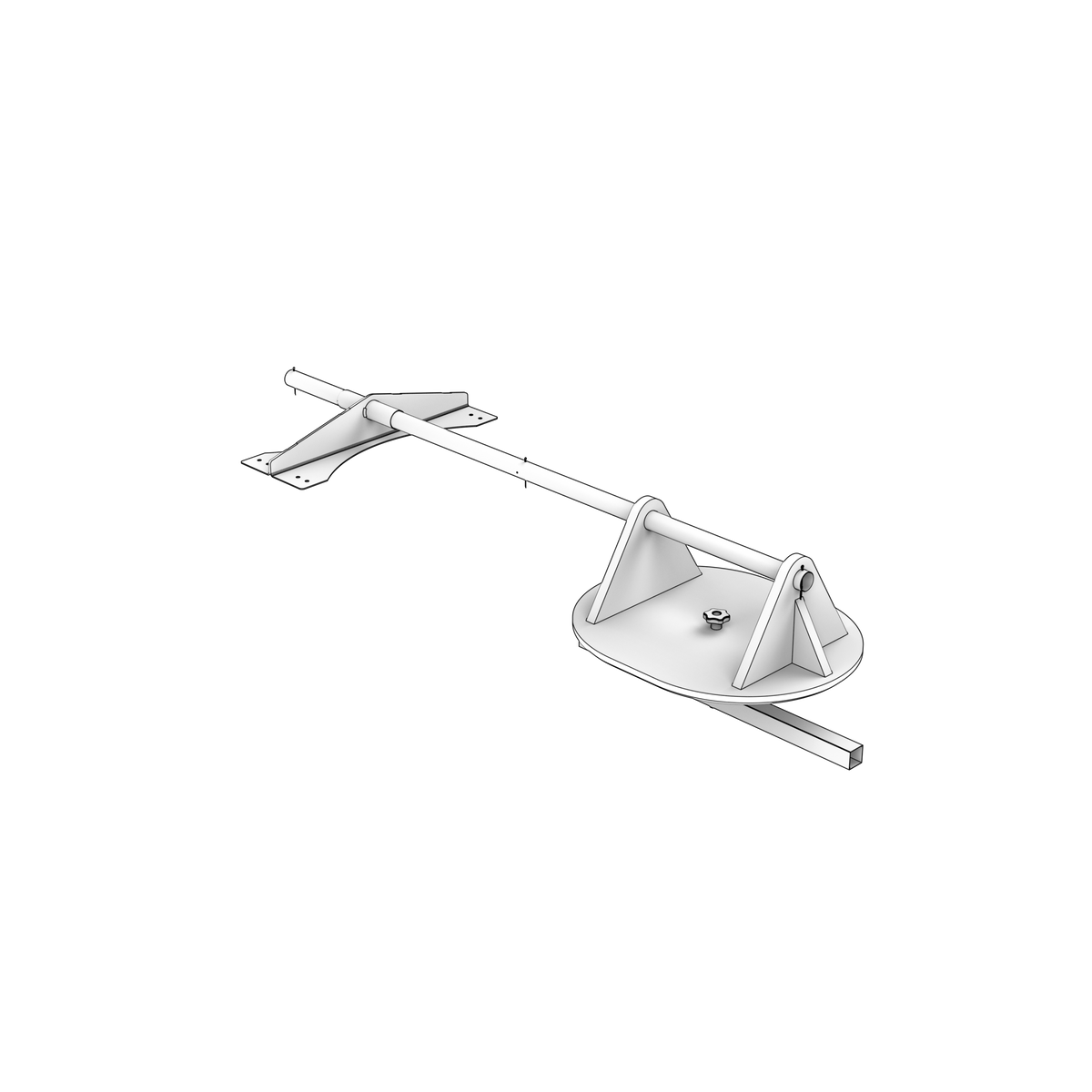

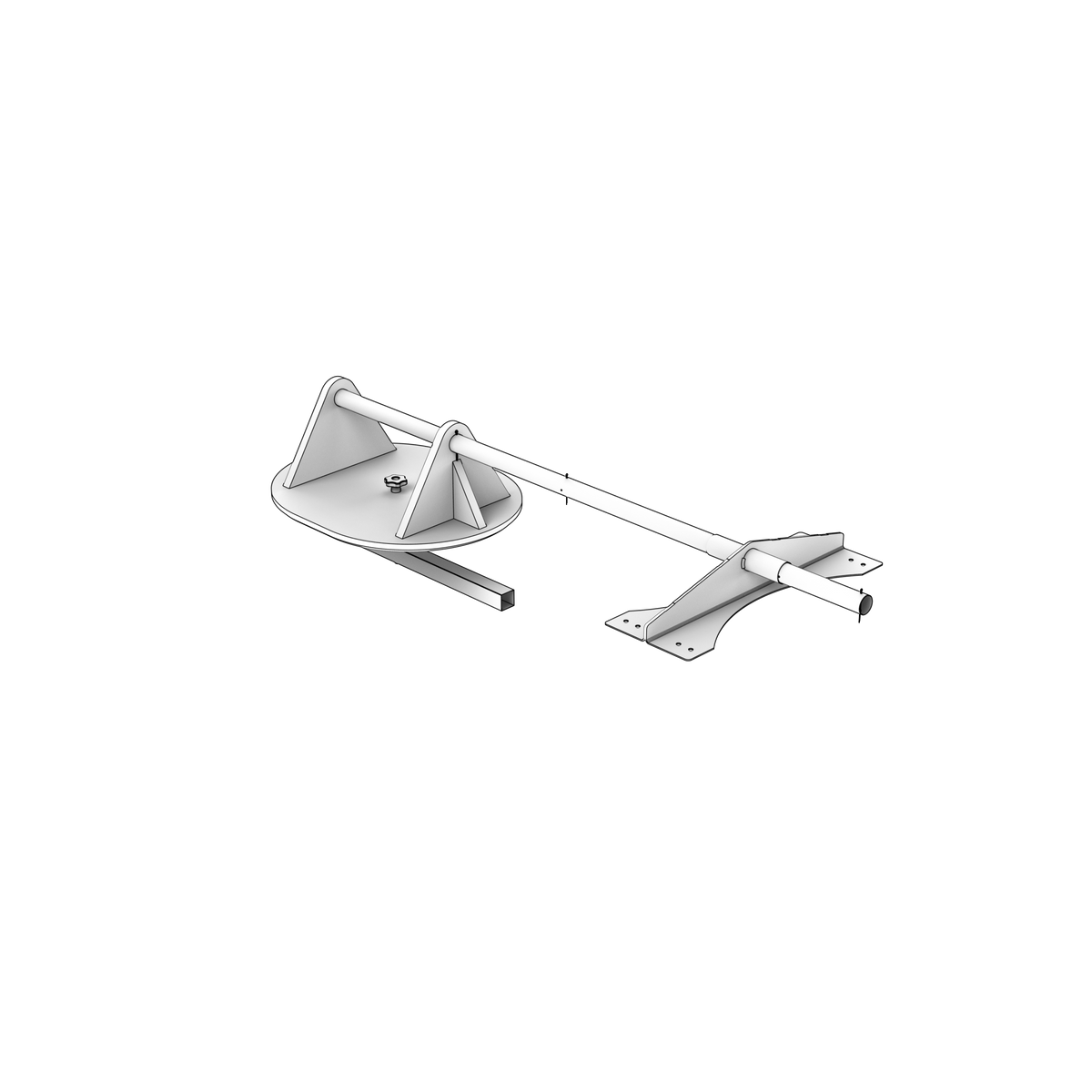

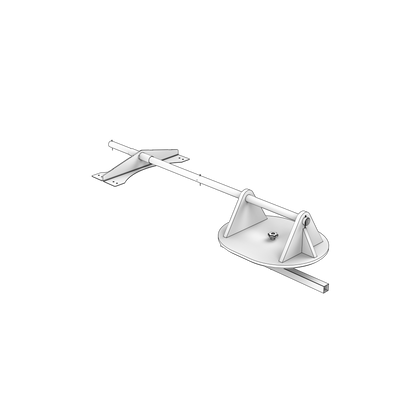

3849704 Drill jig | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta drill jig weighing 52.163 kg, a freight item at that weight. Volvo Penta's special tools catalogue lists it on page 99 as a Drill jig, with no product list, no tool class and no use note published against the number. It supersedes part number 885803. Worth knowing before you order: the catalogue lists a second drill jig, 3594470, immediately alongside it under the same designation, so confirm which of the two the procedure names.

⚙️ Key Features

• Catalogued as a Drill jig
• 52.163 kg, a freight item
• Supersedes 885803
• The catalogue lists a second drill jig, 3594470, alongside it
• No product list published against this number

🔌 Function

Locates and guides a drill so holes are put in the right place and at the right angle during an installation.

⚠️ Common Signs of Failure

• Guide bushes worn oval, so drilled holes come out oversize or off line
• Jig bent or sprung so it no longer sits flat on the work
• Location features worn or burred
• Rust across the jig after storage in a damp workshop

🛠️ Service Notes

• Older workshop documents may quote 885803 for this jig
• Inspect the guide bushes before use; a worn bush spoils the hole and the workpiece

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3849704 → Supersedes 885803

OEM / Related Numbers

• 885803 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
