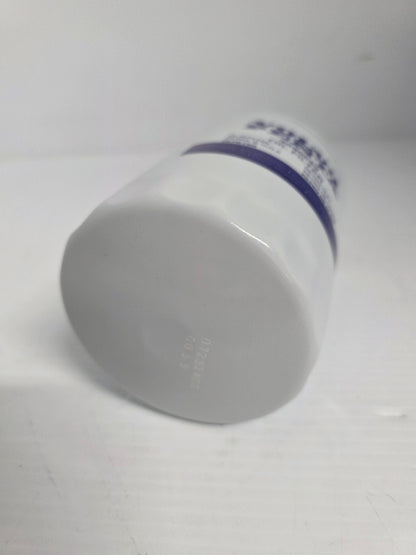

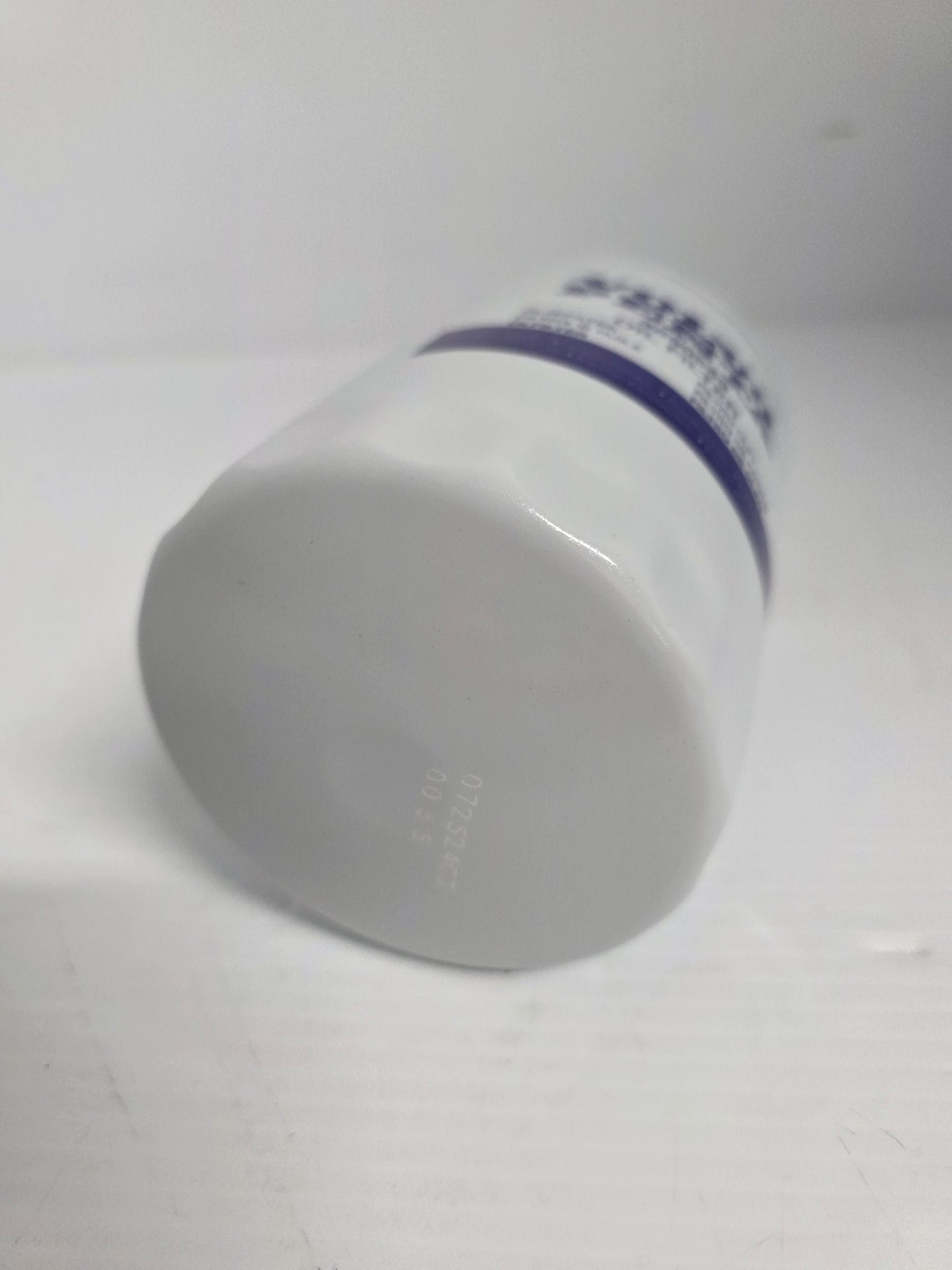

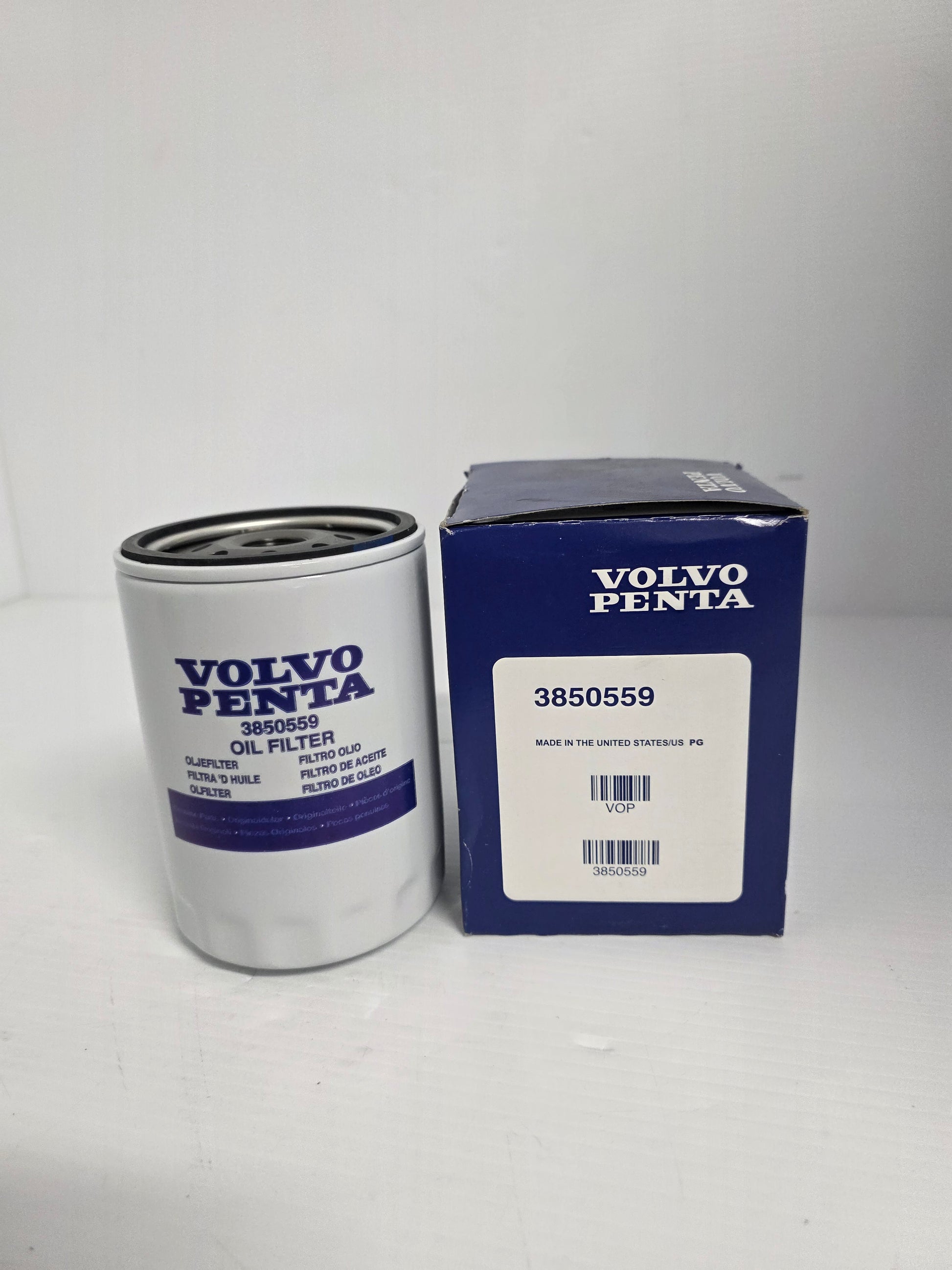

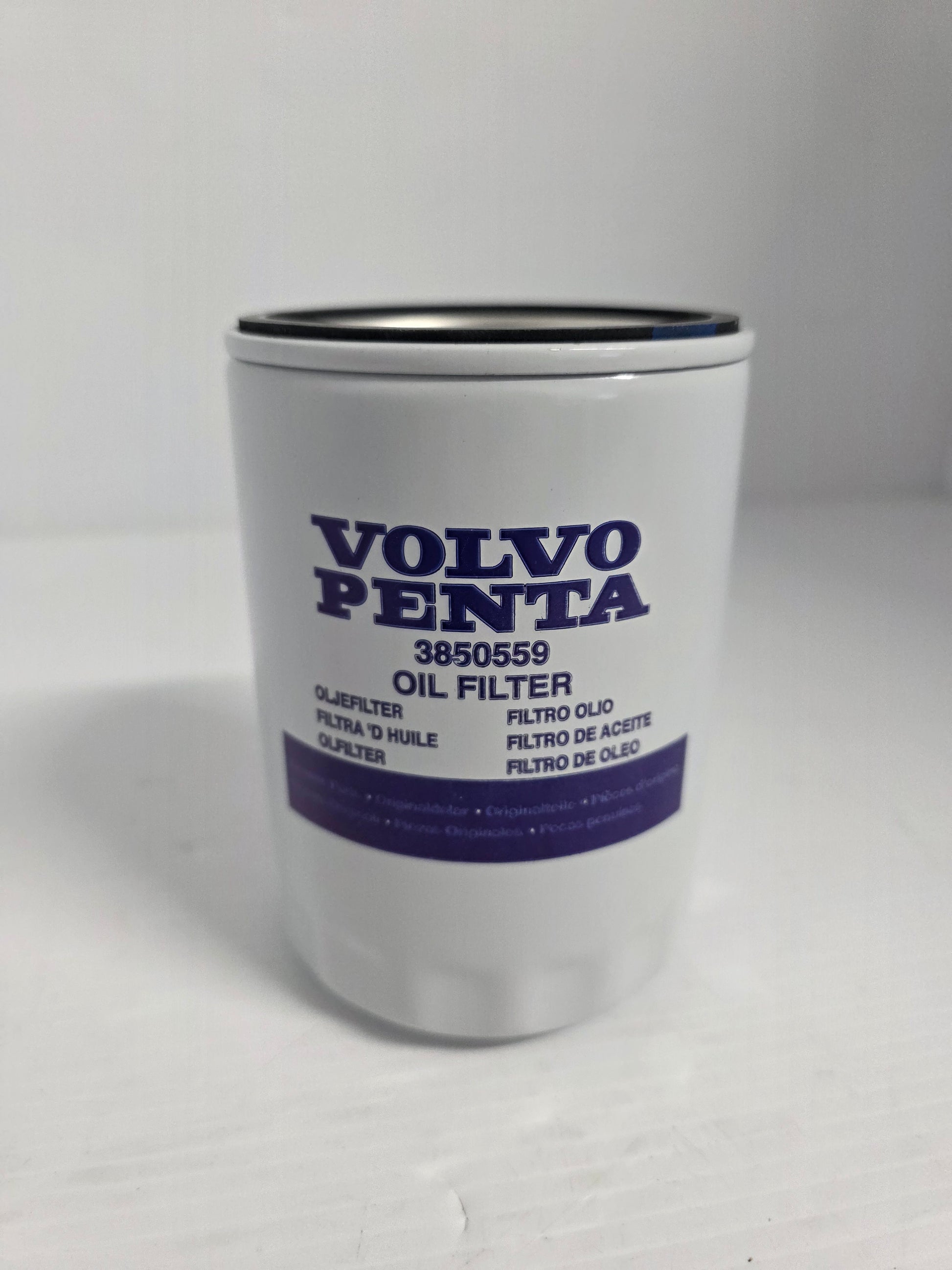

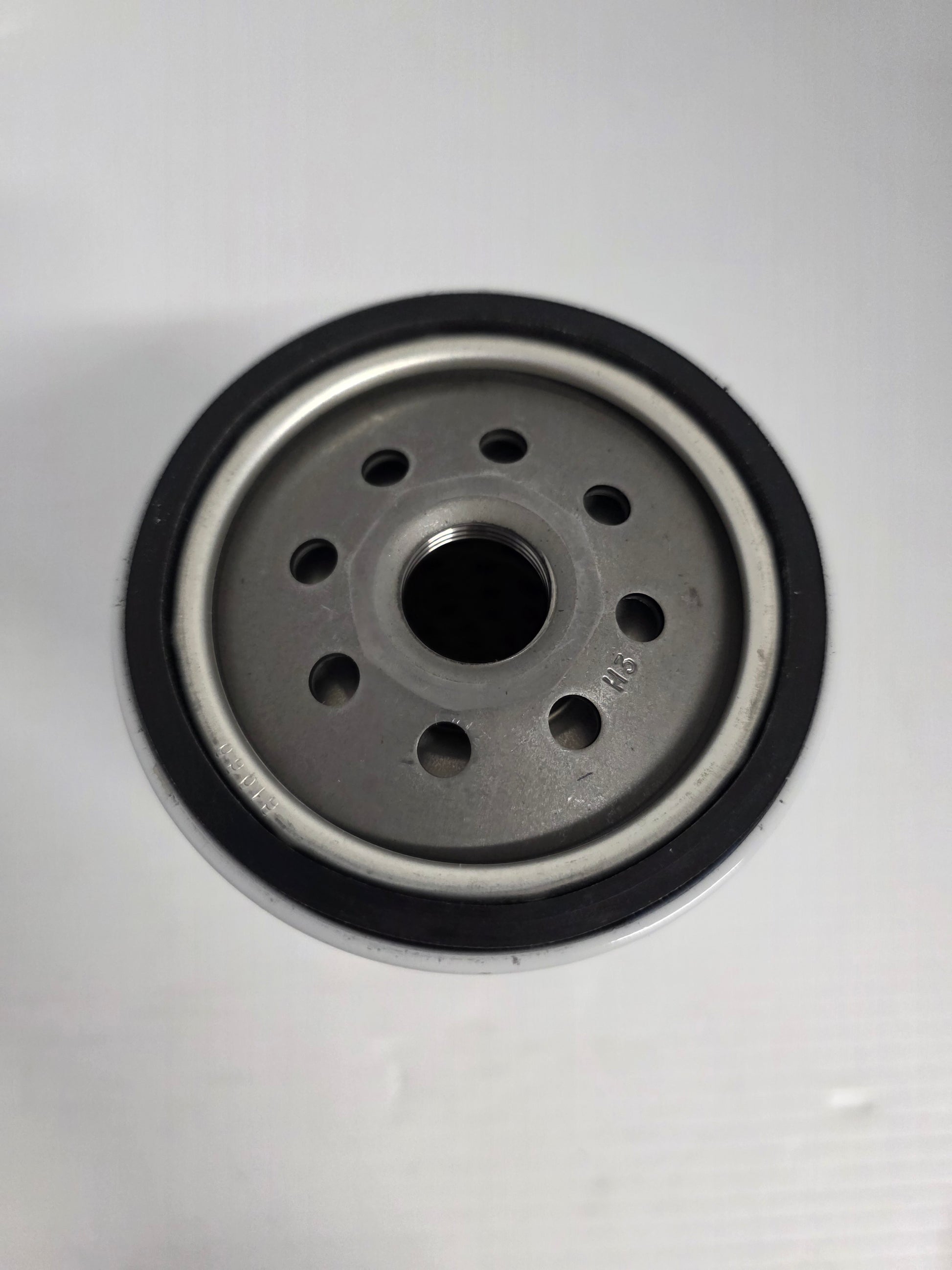

3850559 Filter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta spin-on oil filter measuring 130 mm in height, weighing 0.440 kg and listed for 167 applications. The accessories catalogue prints it as the oil filter for the big-block petrol engines - the 7.4GL, the 7.4Gi, GSi and DPX385, the 8.2GL, and the 8.2GSi and DPX415 - alongside fuel filter 3862228, thermostat 3853983 with its seal ring 3852071 and gasket 3852111, and the 4-pack of plugs 3851861. Height is the figure that separates it from the other spin-on filters in this range, so check the 130 mm against the filter you are removing.

🚤 Compatibility

• Engine Family: DPX

Full model list at the end of this description.

⚙️ Key Features

• 130 mm in height
• Oil filter for the 7.4GL, the 7.4Gi, GSi and DPX385, the 8.2GL, and the 8.2GSi and DPX415
• 0.440 kg
• Listed with fuel filter 3862228, thermostat 3853983 and spark plug pack 3851861
• 167 listed applications
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Oil filter
• Fits: 7.4GL; 7.4Gi, GSi, DPX385; 8.2GL; 8.2GSi, DPX415

🔌 Function

Traps wear metal and carbon from the engine oil so that only clean oil reaches the bearings.

⚠️ Common Signs of Failure

• Oil pressure lower than usual once the engine is warm
• Weeping around the filter sealing ring
• Filter body dented, split or corroded
• Dark, gritty oil well before the service interval
• Rattle at start-up where the filter has drained back

🛠️ Service Notes

• Check the 130 mm height against the old filter, as a taller or shorter body may foul the installation
• Oil the new seal and fit by hand only, without levering it up tight
• Refill, run up and recheck both level and joints for leaks
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• Baldwin: B6
• Bosch: 0 451 104 002
• Donaldson: P550025
• MANN-FILTER: W 920/54
• WIX: 51069

Aftermarket / Verified Equivalents

• Sierra: 18-7824

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1Gi-B, 8.1Gi-BF, 8.1GiI-A, 8.1GiI-B, 8.1GSi-A, 8.1GSiI-A, 8.1GXi-A, 8.1GXi-AF, 8.1GXiI-A, 7.4GiINCCCE, 7.4GiINCSCE, 7.4GiPEFS, 7.4GiPBYCCE, 7.4GiPLKDCE, 7.4GiPLKECE, 7.4GiPNCACE, 7.4GiPNCSCE, 7.4GiPNCBCE, 7.4GiPNCMCE, 7.4GiPWTR, 7.4GLINCS, 7.4GLPLKD, 7.4GLPLKE, 7.4GLPNCA, 7.4GLPNCB, 7.4GLPNCM, 7.4GLPNCS, 7.4GSiPBYCCE, 7.4GSiPEFS, 7.4GSiPWTR, 7.4GSiXNCM, 5.7GSiPWTR, 5.7GSiCPLKD, 5.7GSiI-A, 5.7GSiPBYCCE, 5.7GSiPEFS, 5.7GSiPLKD, 5.7GSiPLKE, 5.7GSPBYC, 5.7GSPEFS, 5.7GSPWTR, 5.7GXi-A, 5.7GXi-B, 5.7GXi-C, 5.7GXi-CF, 5.7GXi-D, 5.7GXi-DF, 5.7GXi-E, 5.7GXi-EF, 5.7GXi-F, 5.7GXi-FF, 5.7OSXi-D, 5.7OSXi-DF, 5.7GXiI-A, 5.7GXiI-B, 5.7GXiI-C, 5.7GXiI-D, 5.7GXiI-E, 5.7GXiI-F, 5.7OSi-A, 5.7OSi-AF, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-C, 5.7OSi-CF, 5.7OSXi-A, 5.7OSXi-AF, 5.7OSXi-B, 5.7OSXi-BF, 5.7OSXi-C, 5.7OSXi-CF, 5.0OSi-DF, 5.0OSi-E, 5.0OSi-EF, 5.7Gi-A, 5.7Gi-B, 5.7Gi-BF, 5.7Gi-C, 5.7Gi-CF, 5.7Gi-D, 5.7Gi-DF, 5.7Gi-E, 5.7Gi-EF, 5.7OSi-D, 5.7OSi-DF, 5.7GiI-A, 5.7GiI-B, 5.7GiI-C, 5.7GiI-D, 5.7GiI-E, 5.7GL-A, 5.7GL-B, 5.7GL-C, 5.7GL-D, 5.7GL-E, 5.0GiPBYCCE, 5.0GiPEFS, 5.0GiPWTR, 5.0GL-A, 5.0GL-B, 5.0GL-C, 5.0GXi-D, 5.0GXi-DF, 5.0GXi-E, 5.0GXi-EF, 5.0OSi-C, 5.0OSi-CF, 5.0OSi-D, 5.0GL-D, 5.0GL-E, 5.0GLPBYC, 5.0GLPEFS, 5.0GLPWTR, 5.0GXi-A, 5.0GXi-B, 5.0GXi-BF, 5.0GXi-C, 5.0GXi-CF, 5.0OSi-BF, 5.0OSi-B, 4.3GIPEFS, 4.3GL-A, 4.3GL-B, 4.3GL-C, 4.3GL-D, 4.3GLPEFS, 4.3GXi-A, 4.3GXi-B, 4.3GXi-BF, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3OSi-BF, 4.3OSi-B, 4.3OSi-C, 4.3OSi-CF, 4.3OSi-D, 4.3OSi-DF, 4.3OSi-E, 4.3OSi-EF, 8.2GSiPBYCCE, 8.2GSiPEFS, 8.2GSiPWTR, 8.2GSiXNCB, 7.4GIIHUBCE, 7.4GLIHUB, 7.4GLINCC, 7.4GSIINCS, 7.4GSIINCC
• Volvo Penta DPX420-CF, DPX420-DF, DPX420-A, DPX420-B, DPX420-BF
• Volvo Penta DPX375-A, DPX375-B, DPX375-BF, DPX375-CF
• Volvo Penta DPX385XBYDCE, DPX385XEFS, DPX385XLKE
• Volvo Penta DPX415XEFS, DPX415XLKE, DPX415XBYDCE
