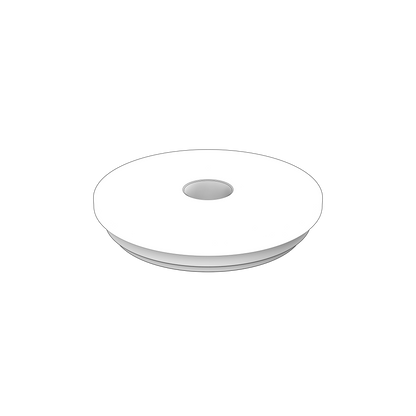

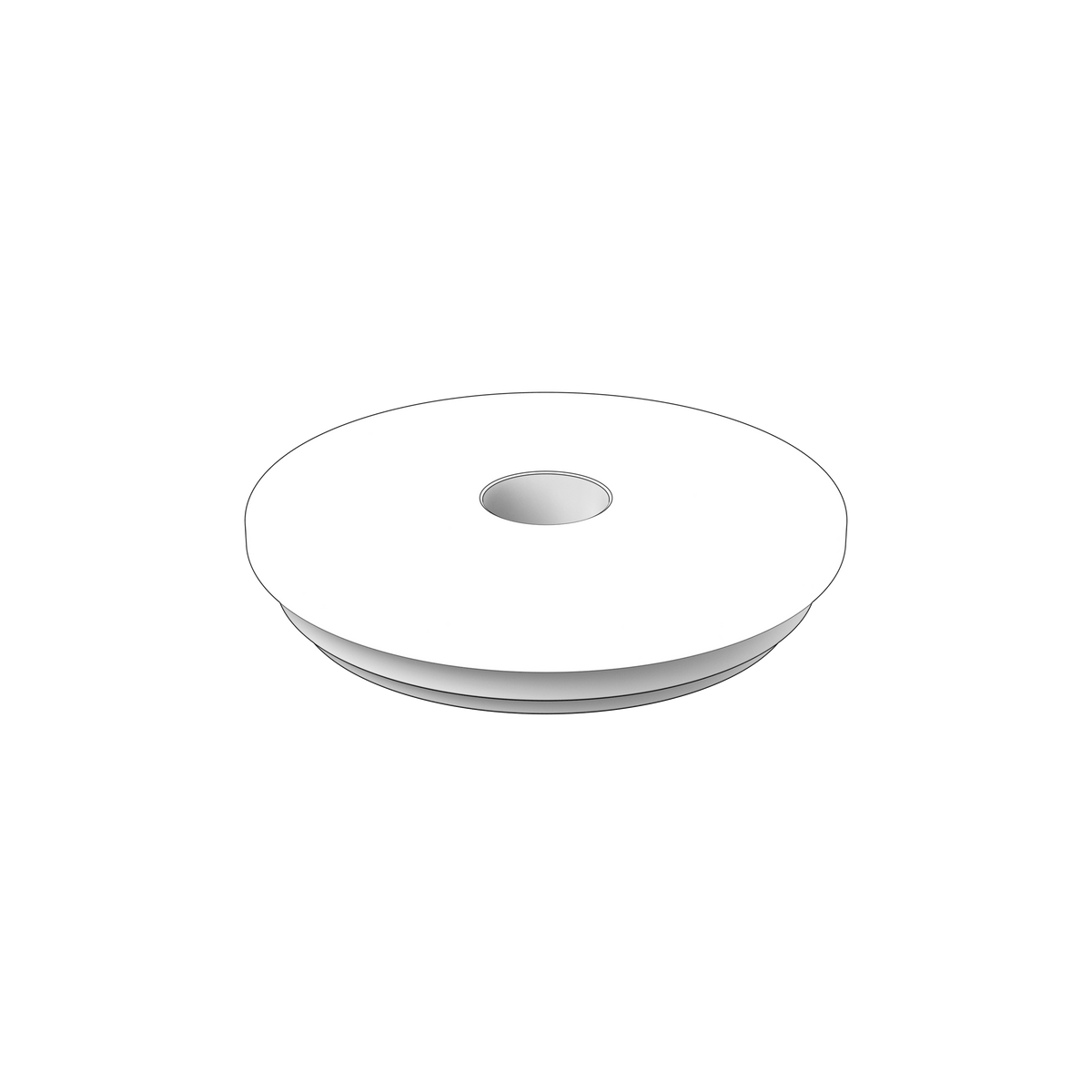

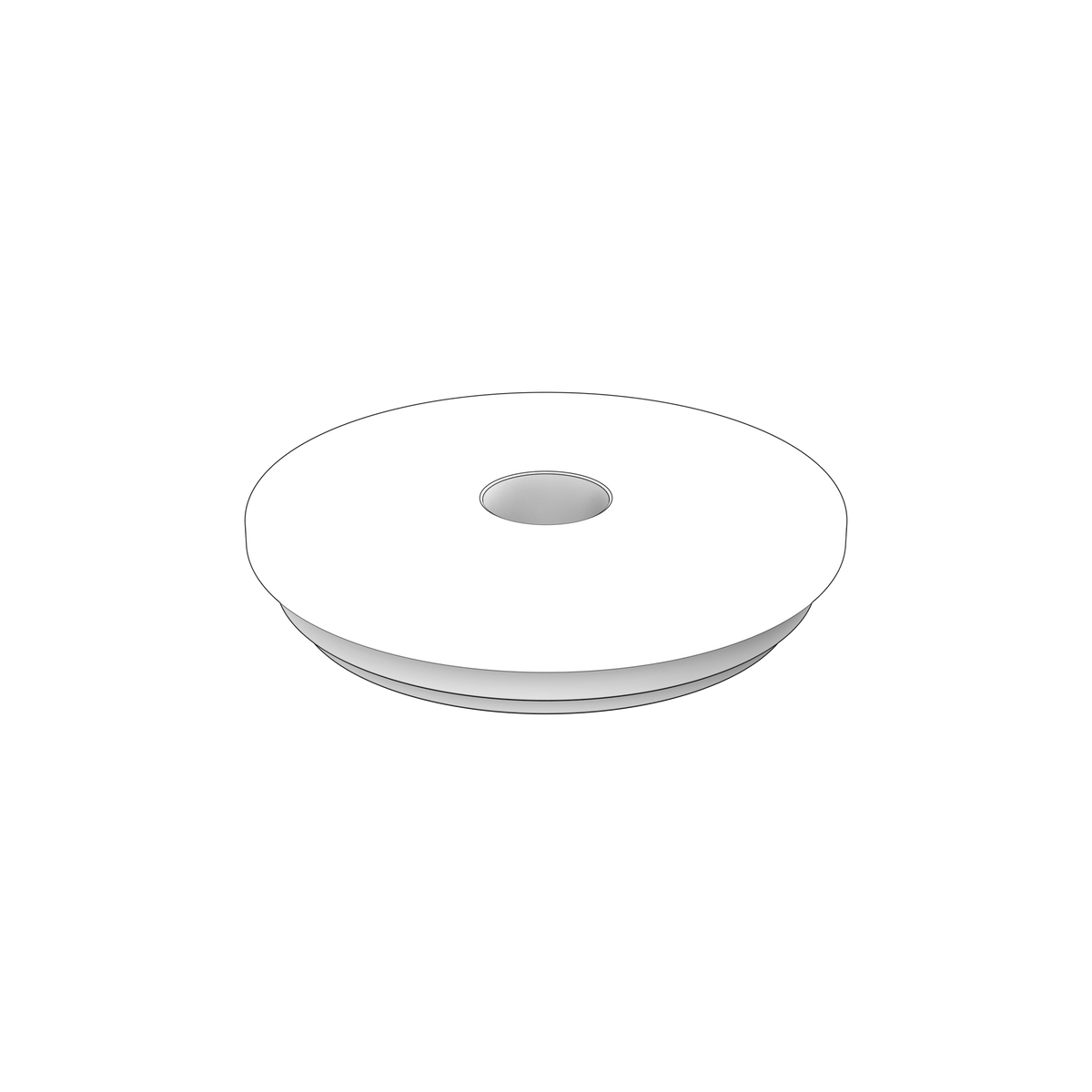

3850619 Guide sleeve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta guide sleeve, published at 0.708 kg. Volvo's own special tools listing records this number as a guide sleeve in the overhaul class and gives it named partners: it is used with puller 3850623 and adapter 3850621, and it is also called up by mounting tool 3855868 for installing the pinion bearing and by drift 3884360 for removing it. Our listing has carried it as a guide plate, so order by the part number rather than by the name. Guide sleeve 3849656 at 0.943 kg is the other one listed here.

⚙️ Key Features

• Listed by Volvo as a guide sleeve
• Used with puller 3850623 and adapter 3850621
• Also called up by 3855868 and 3884360 for pinion bearing work
• 0.708 kg
• Our listing has carried it as a guide plate, so order by number

🔌 Function

Holds the bearing or shaft on its correct centre line as it is drawn or driven, so it enters straight rather than picking up on the bore.

⚠️ Common Signs of Failure

• Guide faces worn, scored or burred
• Sleeve bent so it no longer aligns the work
• Cracks at a slot or hole
• Corrosion on the guiding surfaces

🛠️ Service Notes

• Four of the vertical shaft and pinion bearing tools here call for this sleeve, so it is worth holding if you do that work
• A scored guide face transfers those marks to the seal or shaft, so check it before use

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
