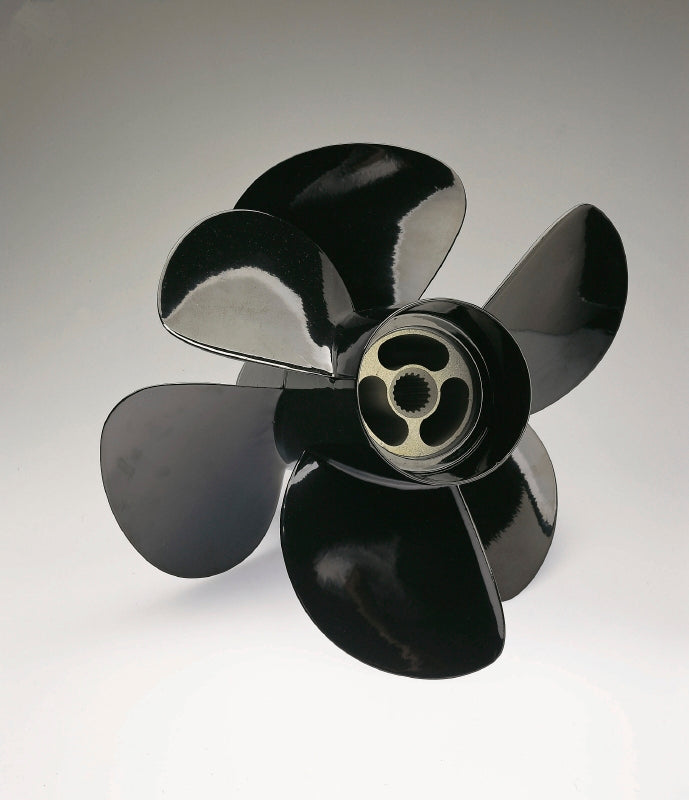

3851422 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type D is the earlier aluminium Duoprop range for Aquamatic DPS and DPS-A sterndrives with straight propeller-shaft splines. Volvo Penta has replaced the Type D propeller sets with Type I sets, but the Type D front and rear propellers are still sold individually as spare parts. This is the D2 front propeller; the matching rear propeller is 3851442 - no complete set number is listed in this dimension. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: D, XDP, V, DP, DPS
• HP Range: 130-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Duoprop Type D, dimension D2
• Front propeller
• Aluminium, for DPS and DPS-A drives with straight splines
• 7.983 kg
• 125 applications across D, XDP, V, DP and DPS
• Left-hand rotation
• Aluminium Duoprop propeller for DPS and DPS-A drives with straight splines.
• Sold individually as a spare part - the complete Type D sets have been replaced by Type I sets.
• Material: aluminium
• Fits: DPS, DPS-A (straight splines)
• Type: D2
• Set contains: rear 3851442

🔌 Function

Forms the forward half of a Duoprop counter-rotating pair, taking the larger share of the thrust and handing a straightened flow back to the rear propeller.

⚠️ Common Signs of Failure

• Vibration that builds with revs and eases when you throttle back
• Blade edges chipped, curled or bent after a strike
• Loss of top speed, or the engine over-revving against the same load
• Drive slipping under acceleration as the hub loses its grip
• Fishing line or weed wound tight behind the hub

🛠️ Service Notes

• The matching rear propeller in D2 is 3851442
• Do not mix Type D and Type I propellers - run the same type and the same size on the drive, and on both drives in a twin installation
• Volvo directs 6-cylinder diesel engines, engines over 240 hp and boats capable of more than 38 knots (45 mph) to the stainless steel Type F or FH propellers rather than an aluminium Duoprop
• To upgrade from Type D to Type I, consult a Volvo Penta dealer for advice on the right propeller size for the boat, drive and engine.
• Installation hardware for types D, I, IH, F and FH: rear propeller nut 21631162, front propeller nut 3851569.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1OSi-J, 8.1OSi-JF, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 4.3Gi-200-S
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta DP-S, DP-S1, DP-SM, DP-SMTD, DP-SMTD1, DP-SMTD3
• Volvo Penta DPS-A, DPS-A OXI
• Volvo Penta XDP-B, XDP-D3
• Volvo Penta V6-200-A
