3853431 Screw | Genuine Volvo Penta Part

🔧 Product Description

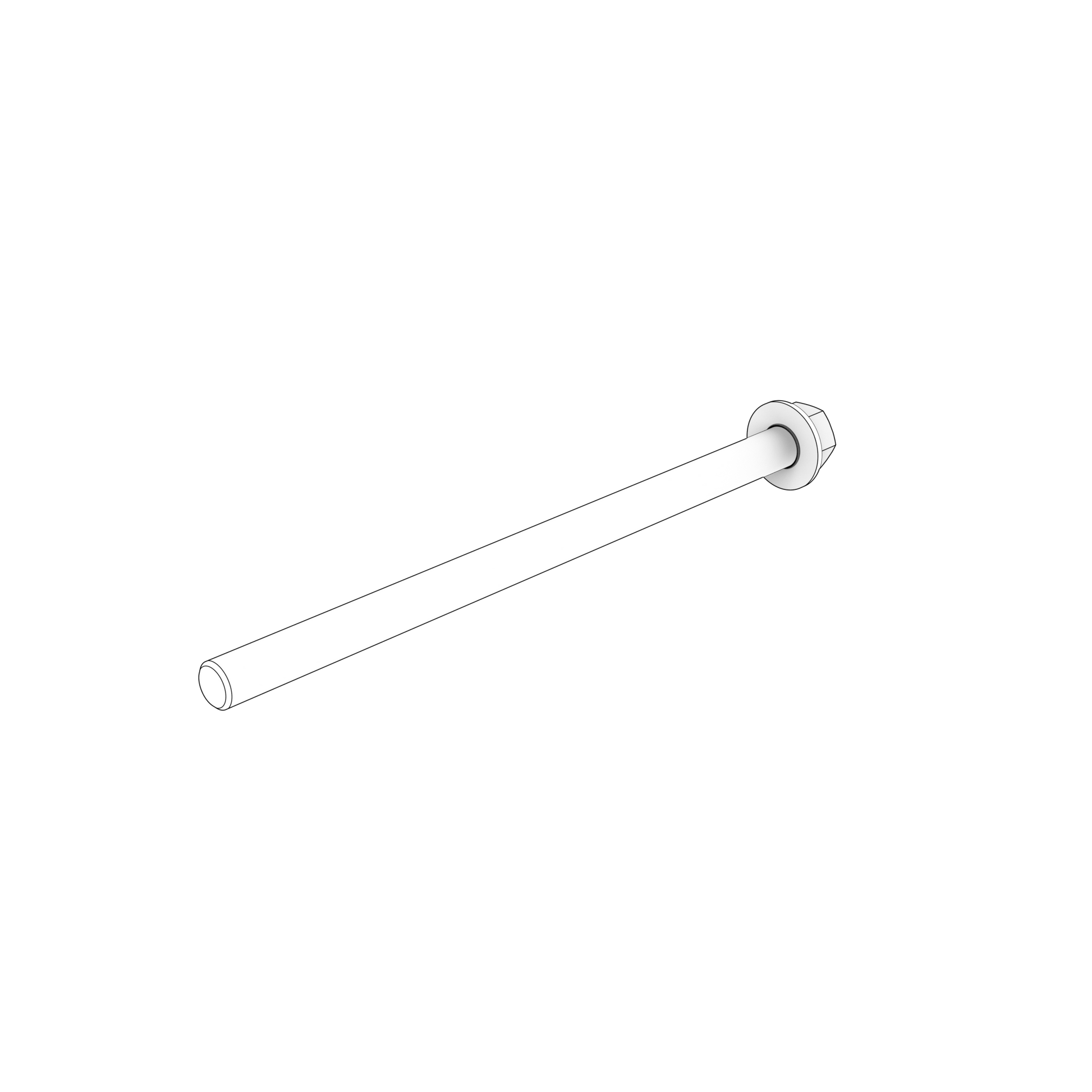

Genuine Volvo Penta screw 6.25 inches (159 mm) long, from the Inlet and Exhaust System group, weighing 0.059 kg and listed for 27 applications. It is the longer of the pair with screw 3853430 at 5.25 inches (133 mm), so measure the screw you removed before ordering.

🚤 Compatibility

Full model list at the end of this description.

⚙️ Key Features

• 6.25 inches (159 mm) long
• 0.059 kg
• Inlet and Exhaust System group
• 27 applications
• 159mm (Volvo assembly listing)

🔌 Function

Clamps a manifold, riser or exhaust component through a deep joint, with the length chosen so the thread engages fully.

⚠️ Common Signs of Failure

• Exhaust or inlet leak at the joint the screw clamps
• Screw seized in the casting by corrosion
• Thread wasted or stripped over the exposed length
• Head corners rounded from earlier removal
• Screw snapped on removal at the corroded section

🛠️ Service Notes

• This is the longer screw yet the published weight of 0.059 kg is lower than the 0.• Renew the joint gasket and check the tapped holes while the screws are out

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 3.0GLM-A, 3.0GLM-B, 3.0GLM-C, 3.0GLMMDA, 3.0GLP-A, 3.0GLP-B, 3.0GLP-C, 3.0GLP-D, 3.0GLP-E, 3.0GLP-J, 3.0GLP-N, 3.0GSM-A, 3.0GSM-B, 3.0GSMBYMCE, 3.0GSM-C, 3.0GSMLKD, 3.0GSMNCS, 3.0GSMWTR, 3.0GSP-A, 3.0GSP-B, 3.0GSPBYMCE, 3.0GSP-C, 3.0GSPEFS, 3.0GSPLKD, 3.0GSPMDA, 3.0GSPNCS, 3.0GSPWTR
