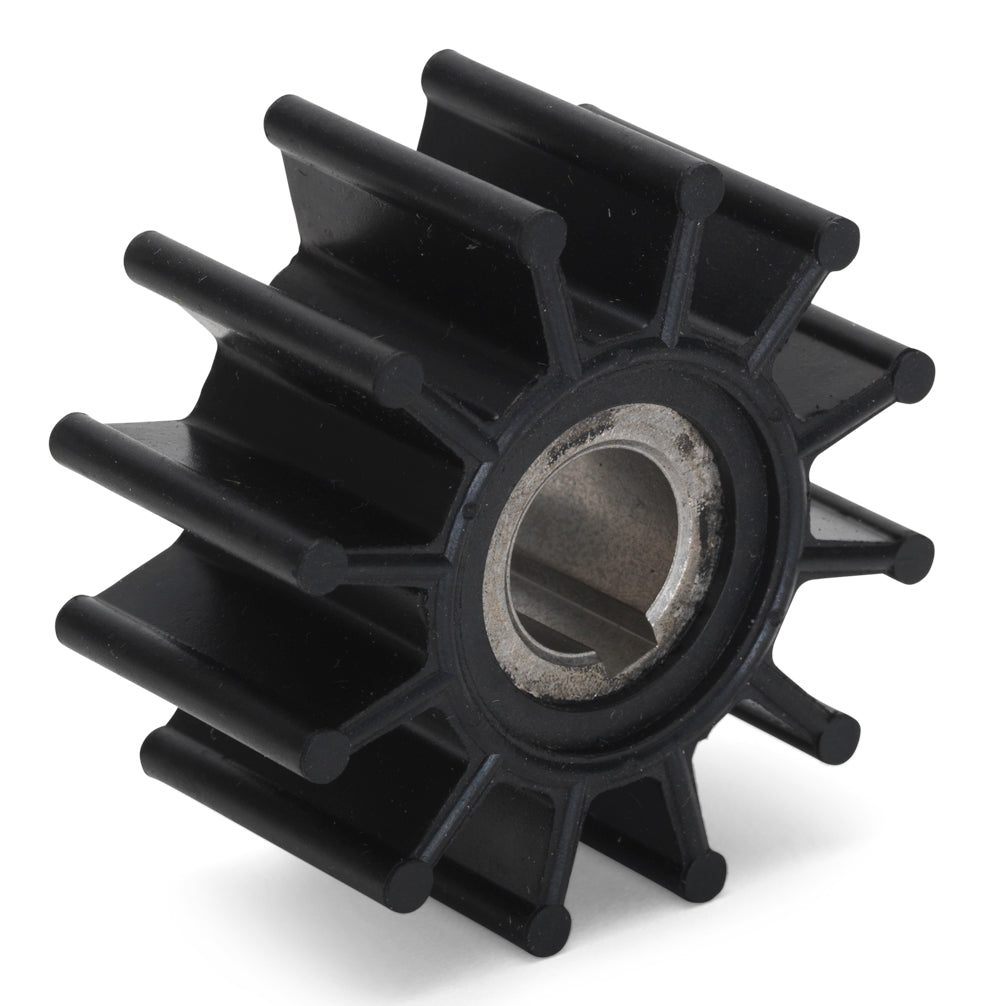

3854286 Impeller | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta raw water pump impeller for the Sherwood pump, weighing 0.086 kg and listed for 24 applications. It supersedes part number 835512. The accessories catalogue prints it as the impeller for the MD-code builds of the 7.4GL and for the 8.2GL, while the HU, NC and LK builds of the 7.4GL take impeller kit 21951346 instead - the build code in the engine designation is what decides. The same number is listed again as the impeller kit for the AQ225B, AQ225C and AQ255A.

🚤 Compatibility

Full model list at the end of this description.

⚙️ Key Features

• Listed for the MD-code 7.4GL builds and the 8.2GL, and for the AQ225B, AQ225C and AQ255A
• The HU, NC and LK builds of the 7.4GL take 21951346 instead
• 0.086 kg
• Supersedes 835512
• Impeller
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Listed in more than one role: Impeller, Impeller kit
• Role: Impeller
• Fits: 7.4GL (MD); 8.2GL; AQ225, AQ255, AQ260, BB225, BB260, BB261 (AQ225B/C and AQ255A)

🔌 Function

Sweeps its flexible vanes around the pump body to draw seawater through the engine's raw water circuit.

⚠️ Common Signs of Failure

• Weak or no water flow from the exhaust outlet
• Overheating or a temperature alarm under load
• Vanes torn, cracked, set or missing
• Rubber gone hard and glazed after a dry run
• Pieces of vane found downstream in the cooler or hoses

🛠️ Service Notes

• Read the build code in the engine designation before ordering - MD builds take this impeller and HU, NC and LK builds take 21951346
• A puller screw is listed for drawing the impeller out of the seawater pump without damaging the housing
• Recover every broken vane from downstream before running the engine again, and never run the pump dry even briefly
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3854286 → Supersedes 835512

OEM / Related Numbers

• 835512 earlier number superseded by this part

Other-Brand OEM Numbers

• Johnson Pump: 09-701B-1

Aftermarket / Verified Equivalents

• JMP: 7192-01
• Jabsco: 18838-0001
• Sherwood: 09959K
• Sierra: 18-3060
• Sierra: 18-3046
• Mallory: 9-45707
• GLM: 89620
• GLM: 89610
• Recmar: REC3854286

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.2GLIMDM, 5.8FLPMDA, 7.4GLIMDM, 7.4GLPMDA, 7.4GLPMDM, 5.7GLPMDA, 5.8FiPMDA, 5.8FiPMDM, 5.7GiIMDA, 5.7GiPMDA, 5.7GiPMDACE, 5.7GLIMDA, 5.0FLPMDA, 5.0FiPMDA, 5.0FiPMDM, 4.3GLMMDA, 4.3GLPMDA, 4.3GSPMDA, 3.0GLMMDA, 3.0GSMNCS, 3.0GSPMDA, 3.0GSPNCS, 8.2GLPMDA, 8.2GLPMDM
