38550-ZW5-003 Honda Tilt Relay | Genuine Used Part

38550-ZW5-003 Honda Tilt Relay | Genuine Used Part

$220.00 AUD
$220.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

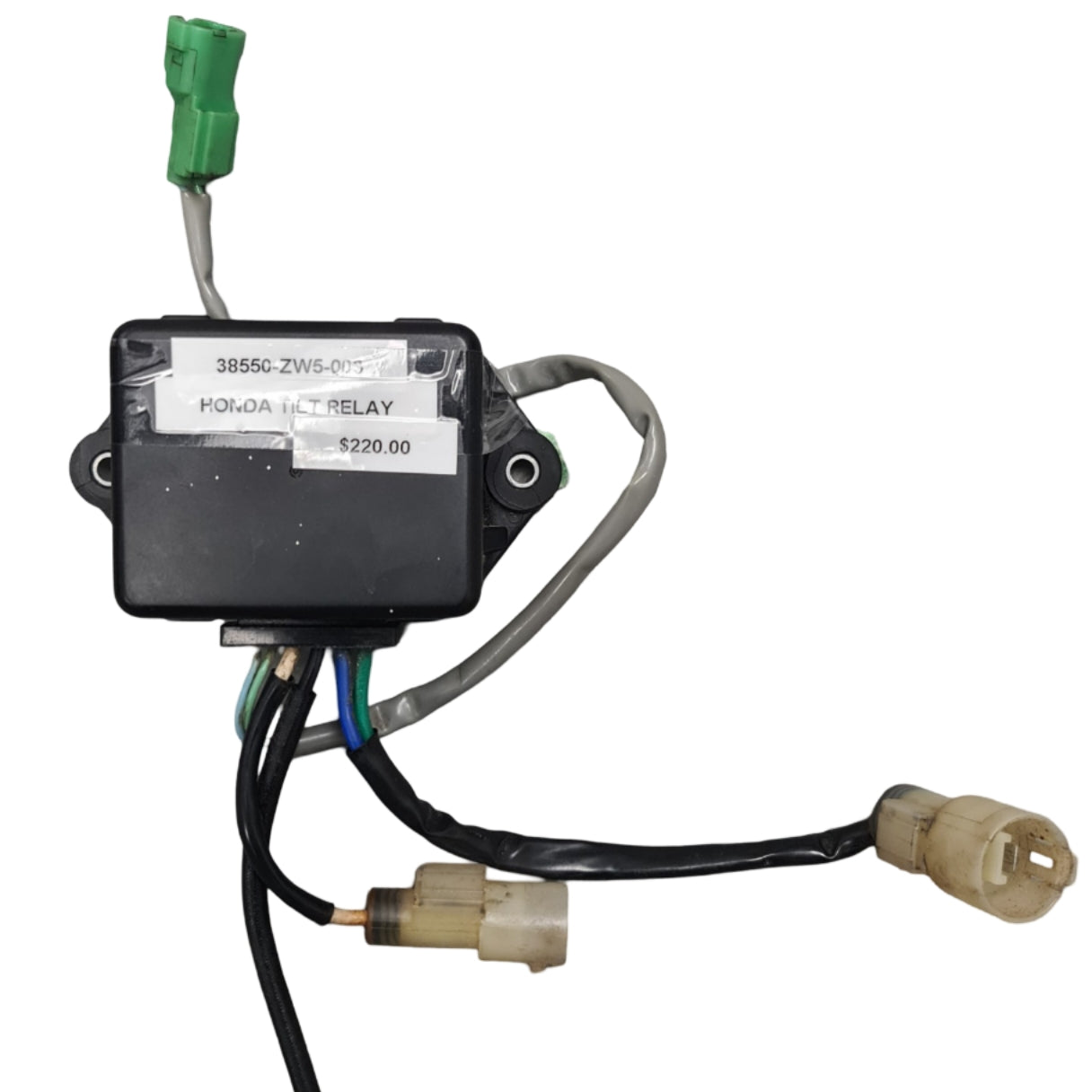

Genuine Honda Power Tilt Relay - Part Number: 38550-ZW5-003

A genuine Honda power tilt / trim relay used on selected Honda outboard trim and tilt systems. This relay switches high-current power to the tilt motor so the outboard can raise and lower under switch command.

⚙️ Key Features

  • Genuine Honda power tilt relay
  • Correct part number 38550-ZW5-003
  • Used in Honda tilt / trim electrical systems
  • Related to BF115 / BF130 electrical component family
  • Must be matched by relay plug and engine model

🚤 Compatibility

Commonly used on

  • Honda power tilt / trim relay circuits

Typically suits

  • Engine models:
  • Honda BF115A power tilt / trim relay applications
  • Honda BF130A power tilt / trim relay applications
  • Honda BF115 / BF130 four-stroke electrical systems where 38550-ZW5-003 is specified
  • HP Range: commonly 115HP - 130HP where specified
  • Engine Type: Honda four-stroke outboard
  • Year Range: approximately late-1990s through mid-2000s depending on model
  • Serial / Model Note: Honda fitment is model and frame-serial controlled. Confirm exact engine frame number, relay connector and trim-unit diagram.

🔌 Function

The relay switches high-current power to the trim / tilt motor when the trim switch is activated.

⚠️ Common Signs of Failure

  • Tilt motor does not run
  • Relay clicks but no trim movement
  • Trim works in one direction only
  • Intermittent trim operation
  • Burnt relay contacts
  • Melted or corroded relay plug
  • Trim motor tests correctly but relay output is missing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 38550-ZW5-003 current / listed Honda relay reference
  • 38550-ZW5-013 related Honda relay family reference where specified

OEM / Related Numbers

  • 38550-ZW5-003
  • 38550ZW5003
  • 38550-ZW5-013
  • Power tilt relay
  • Power trim relay
  • Tilt relay assembly

Aftermarket / Verified Equivalents

  • Aftermarket Honda tilt relay replacements are available by matching 38550-ZW5-003

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
