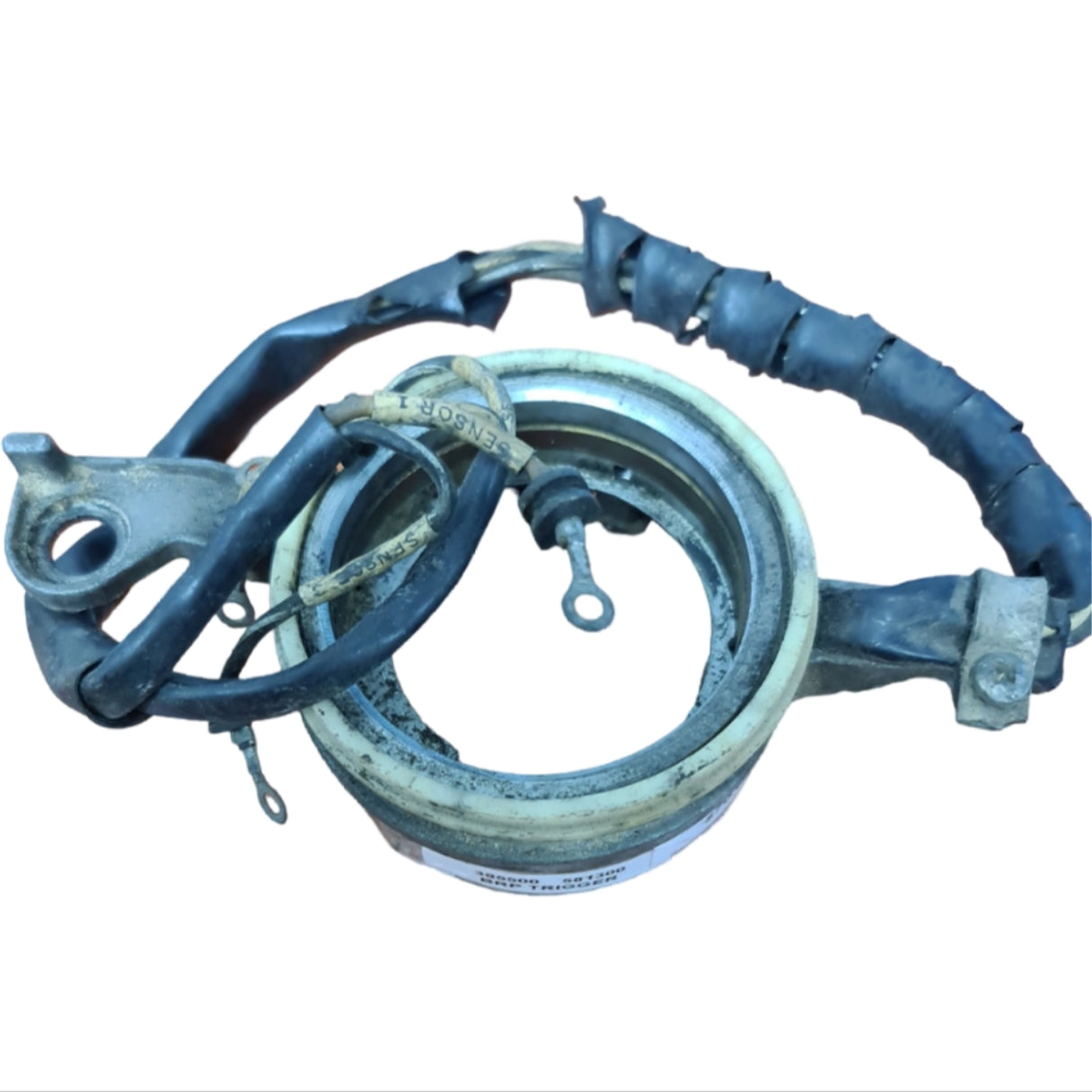

385500 581300 BRP Trigger | Genuine Used Part

🔧 Product Description

Genuine Used Evinrude Johnson V4 Cross-Flow Timer Base - Part Number: 0581300

A genuine pre-owned OMC, Evinrude and Johnson four-cylinder timer-base and ignition-trigger assembly for selected 85HP to 140HP cross-flow outboards.

The primary OEM number is 0581300, commonly written as 581300. Number 385500 is an assembly or casting identifier found on compatible timer bases rather than the principal service number.

⚙️ Key Features

• Genuine OMC, Evinrude and Johnson used timer base

• Primary OEM reference 0581300 / 581300

• Assembly or casting identifier 385500

• Four-cylinder cross-flow trigger configuration

• Used on selected 85HP to 140HP engines

• CDI Electronics replacement available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0385433 - Earlier related timer-base reference

• 0581300 - Original timer-base and sensor assembly

• 0581900 - Later replacement timer base

• 0763778 - Current BRP service reference

• Related service-kit reference: 0778459

OEM / Related Numbers:

• 0581300

• 581300

• 385500 - Casting or assembly identifier

• 0385433

• 385433

• 0581900

• 581900

• 0763778

• 763778

• 0778459

• 778459

Aftermarket / Verified Equivalents:

• CDI Electronics: 133-1900

• Aftermarket V4 cross-flow timer base replacing 0581300

• Aftermarket replacement for 0581900 / 0763778

🚤 Compatibility

Commonly used on:

• Evinrude V4 cross-flow outboards

• Johnson V4 cross-flow outboards

• Early capacitor-discharge ignition systems

Typically suits selected 1973-1979:

• 85HP

• 115HP

• 135HP

• 140HP

• Engine Configuration: Four-cylinder V4 two-stroke

• Application Family: Early cross-flow ignition

Important fitment note:

• Confirm the service number and not only casting number 385500.

• Check wire colours, connector type, timer-base diameter and linkage.

• Later V4 cross-flow and loop-charged timer bases are not interchangeable.

🔌 Function

The timer-base sensors generate crankshaft-position pulses for the ignition power pack.

The assembly rotates with the spark-advance linkage as the throttle is opened.

Common signs of failure:

• No spark on one or more cylinders

• Intermittent spark loss

• Engine backfires during starting

• Spark disappears when warm

• Incorrect ignition timing

• Engine will not reach full advance

• Trigger output is below specification

• Cracked wiring

• Timer base binds or has excessive play

Recommended checks before installation:

• Confirm 0581300 / 581300

• Inspect casting number 385500 only as secondary identification

• Test trigger resistance and peak output

• Check the stator, power pack and coils

• Inspect the timer-base bearing surface

• Set ignition timing and synchronisation after installation

📦 Condition

• Genuine OMC, Evinrude or Johnson used part

• Pre-owned electrical component

• Wire ageing, marks and oxidation may be present

• Electrical testing before installation is strongly recommended

• Supplied in protective or equivalent packaging
