3856121 Volvo Reinforcement - Stbd | Genuine Used Part

🔧 Product Description

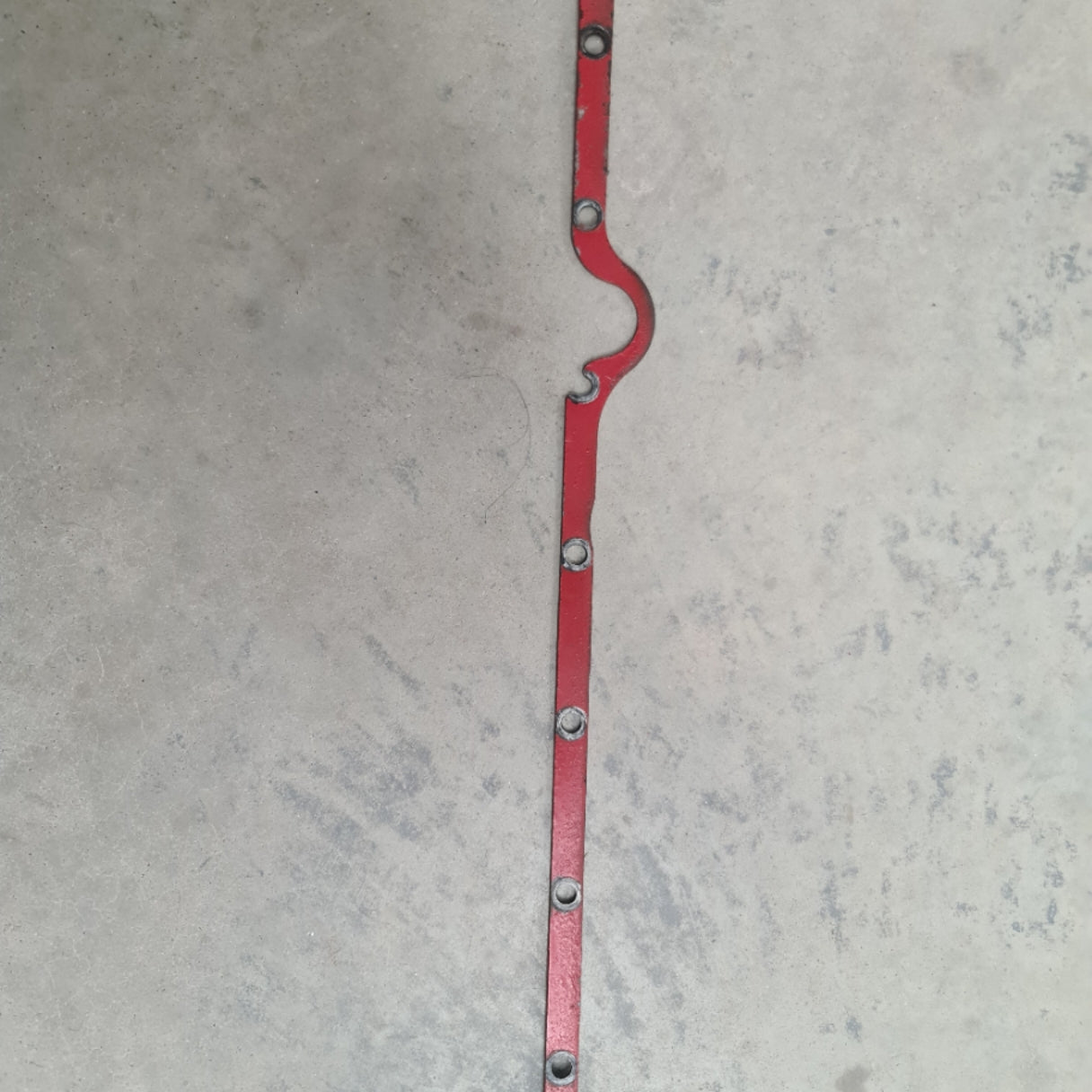

Genuine Volvo Penta Starboard-Side Oil-Pan Reinforcement - Part Number: 3856121

A genuine used starboard-side oil-pan reinforcement plate for selected Volvo Penta GM-based 5.0L and 5.7L V8 petrol engines.

The plate installs along the starboard oil-pan flange and works with port reinforcement 3856120 to distribute bolt pressure evenly. It helps prevent the stamped oil pan from pulling inward around individual bolt holes. Volvo Penta identifies 3856121 as the starboard reinforcement.

⚙️ Key Features

• Genuine Volvo Penta starboard oil-pan reinforcement
• Correct Volvo reference 3856121
• Companion to port plate 3856120
• Maintains even oil-pan gasket pressure
• Fits a broad range of Volvo Penta GM V8 engines

🚤 Compatibility

Commonly used on

• Volvo Penta 5.0L V8 oil-pan assemblies
• Volvo Penta 5.7L V8 oil-pan assemblies
• Carburetted and EFI sterndrive engines
• Inboard and Ocean Series engine packages

Typically suits numerous

• Volvo Penta 5.0GL
• Volvo Penta 5.0Gi and 5.0GXi
• Volvo Penta 5.0OSi
• Volvo Penta 5.7GL
• Volvo Penta 5.7Gi and 5.7GXi
• Volvo Penta 5.7OSi and 5.7OSXi
• Volvo Penta V8-225 through V8-320 applications using the matching oil pan
• Engine Type: GM-based V8 petrol marine engine
• Displacement Range: 5.0L - 5.7L
• Year Range: Engine-designation controlled

🔌 Function

The plate spreads the clamping load from the oil-pan fasteners and helps maintain a consistent gasket seal along the starboard side of the engine.

⚠️ Common Signs of Failure

• Plate is bent or twisted
• Oil leaks appear along the starboard oil-pan rail
• Corrosion weakens the plate
• Bolt holes are enlarged
• Gasket pressure is uneven
• Oil pan is distorted around the fasteners
• Plate was omitted during previous service
• Fasteners loosen because the plate no longer seats correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3856121 → Replaces OMC / Volvo reference 0914363
• 0914363 earlier starboard reinforcement

OEM / Related Numbers

• 3856121 - starboard reinforcement
• 0914363 - earlier starboard reinforcement
• 3856120 - port reinforcement
• 0914362 - earlier port reinforcement
• Oil-pan gasket kit: 3856138
• Stud: 3853202
• Nut: 3856930
• Oil-pan bolt: 3852595

Aftermarket / Verified Equivalents

• OMC / Evinrude Johnson: 3856121
• No independent aftermarket equivalent
• Used OMC and Volvo Penta plates are interchangeable only where the identical number is specified

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
