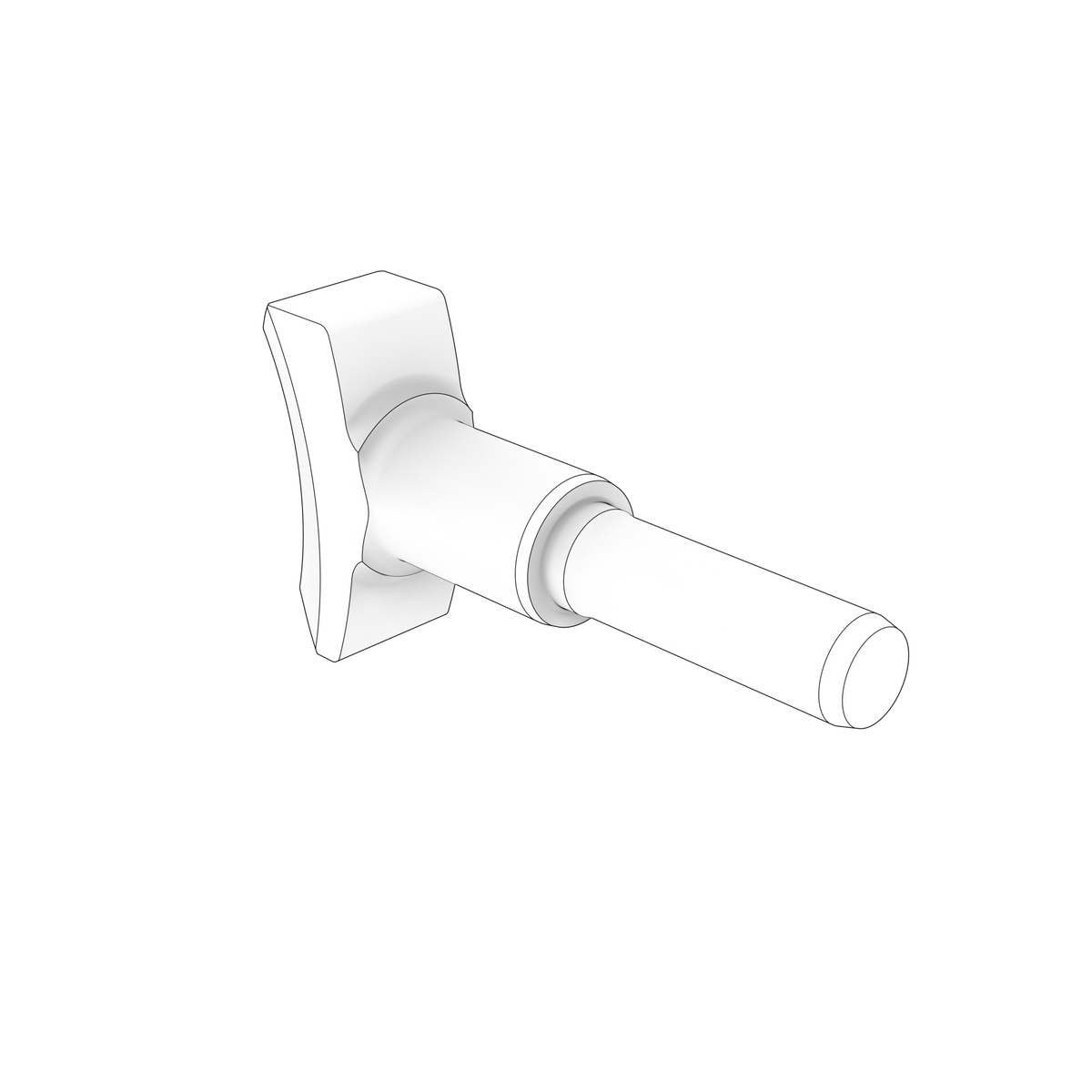

  • 3856502 Dog | Genuine Volvo Penta Part - photo 2 of 2
1 2

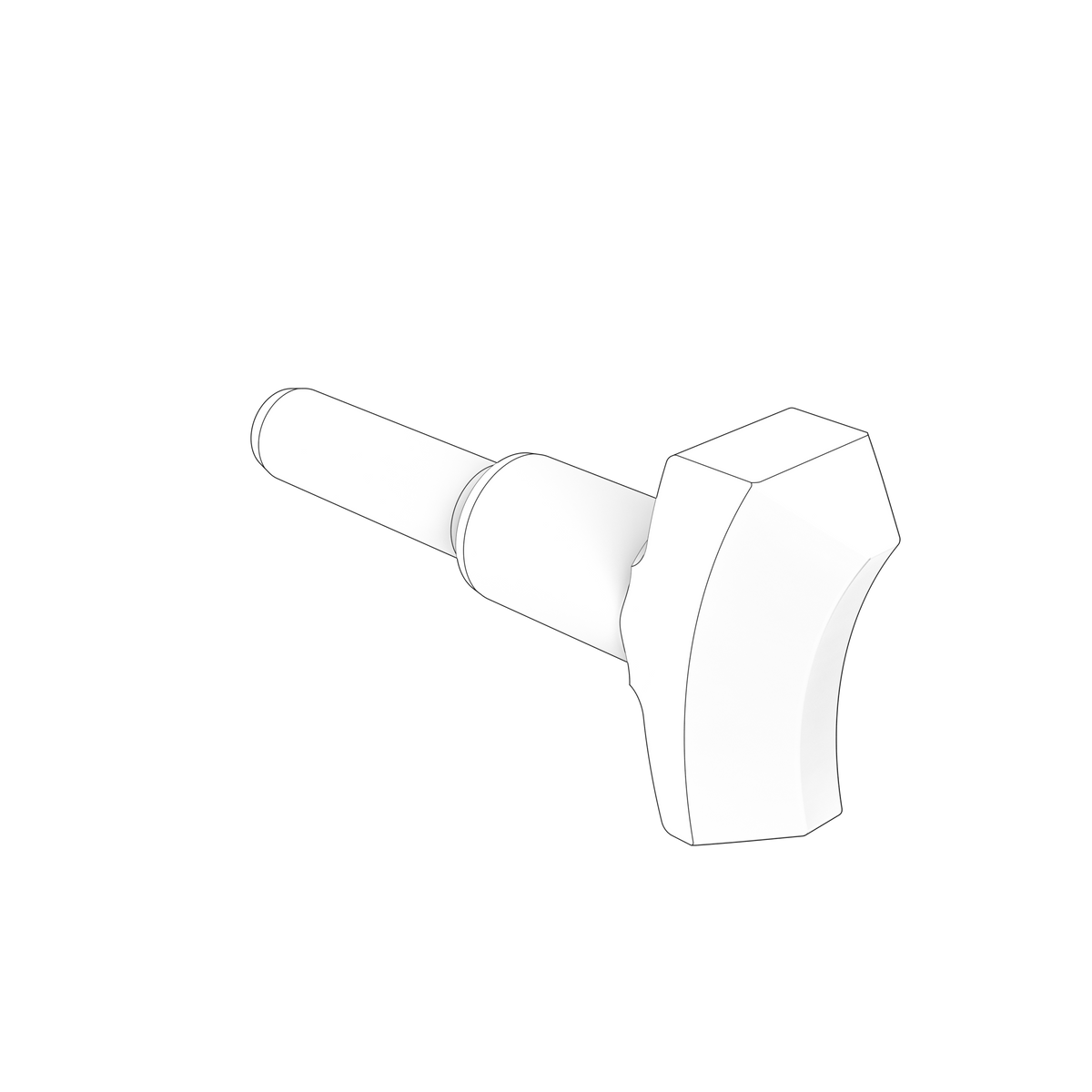

3856502 Dog | Genuine Volvo Penta Part

3856502 Dog | Genuine Volvo Penta Part

$175.86 AUD
$175.86 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 2–3 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta dog from the Marine Propulsion group, weighing 0.043 kg and listed for 50 applications across the AD, D, XDP, TMD, DP and SP series. It consolidates six earlier numbers — 3852293, 3852396, 814601, 814603, 854370 and 852949 — two of which were catalogued as sliding sleeves.

🚤 Compatibility

  • Engine Family: AD, D, XDP, TMD, DP, SP, DPX, HS, SX, TAMD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

  • Consolidates six earlier numbers
  • 0.043 kg
  • 50 applications across six series
  • Replaces numbers formerly listed as sliding sleeves
  • Also supersedes Volvo part numbers 852548, 853420, 854222 and 854297

🔌 Function

Slides on its splines when the drive is shifted and locks into the matching teeth of the gear, coupling and uncoupling the drive.

⚠️ Common Signs of Failure

  • Drive slipping or jumping out of gear under load
  • Clunk or crunch on engagement
  • Engagement teeth rounded, chipped or ramped off
  • Splines worn or fretted
  • Bright metal flakes in the drive oil

🛠️ Service Notes

  • It replaces several earlier numbers, so on an older unit check the mating gear for matching wear before fitting a new dog to it
  • Renew the drive oil and inspect the shift components at the same time

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 3856502 → Supersedes 3852293

OEM / Related Numbers

  • 814603 earlier number superseded by this part
  • 854370 earlier number superseded by this part
  • 852949 earlier number superseded by this part

Aftermarket / Verified Equivalents

  • Recmar: RM3856502

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
  • Volvo Penta DP-D1, DP-E, DP-G, DP-S1, DP-SM, DP-SMTD, DP-SMTD1, DP-SMTD3
  • Volvo Penta SX-RT2, SX-C2, SX-CT2, SX-M, SX-M1, SX-MTD, SX-MTD3
  • Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
  • Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
  • Volvo Penta DPX-A, DPX-R, DPX-S1
  • Volvo Penta AD41L-A, AD41P-A
  • Volvo Penta TMD31D, TMD31L-A
  • Volvo Penta XDP-B, XDP-D3
  • Volvo Penta D41L-A
  • Volvo Penta HS1A
  • Volvo Penta KAD42B
  • Volvo Penta KAMD42B
  • Volvo Penta SP-E
  • Volvo Penta TAMD42B
  • Volvo Penta TMD41L-A
