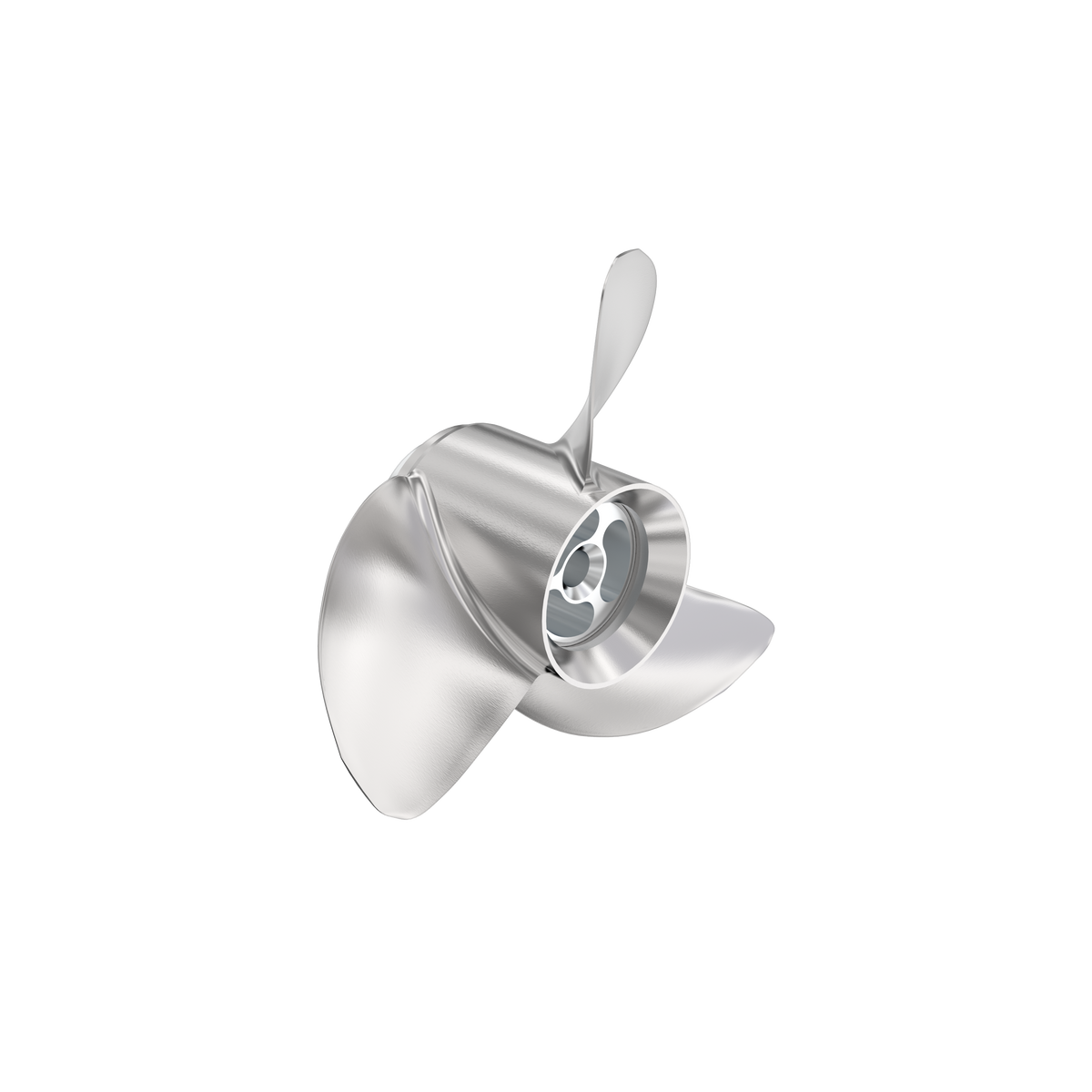

3857558 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type F is the stainless steel Duoprop range for Aquamatic DPS and DPS-A sterndrives with straight propeller-shaft splines, and is the upgrade Volvo Penta offers for enhanced performance, strength and durability. Greater strength allows thinner blades, which give better acceleration and a higher top speed than a comparable aluminium propeller, while the high strength stainless steel adds excellent durability and corrosion resistance. A shock-absorbing rubber bushing and galvanic isolation make it a matched fit for the DPS drive. This is the F2 rear propeller; the matching front propeller is 3857557, and the pair is also listed as set 3857563. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: D, XDP, V, DP, DPS
• HP Range: 130-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Duoprop Type F, dimension F2
• Rear propeller
• Stainless steel, straight splines for DPS and DPS-A drives
• Three-blade front and three-blade rear
• 7.257 kg
• 125 applications across D, XDP, V, DP and DPS
• Enhanced acceleration and top speed versus a comparable aluminium propeller.
• Excellent strength, durability and corrosion resistance.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Shock-absorbing rubber bushing reduces vibrations and stress on the drivetrain.
• Three-blade front propeller and three-blade rear propeller.
• Type F has straight splines - for DPS and DPS-A drives.
• Material: stainless steel
• Fits: DPS, DPS-A (straight splines)
• Type: F2
• Set contains: set 3857563, front 3857557

🔌 Function

Forms the aft half of a Duoprop counter-rotating pair, turning the opposite way to the front propeller and recovering its swirl as extra thrust.

⚠️ Common Signs of Failure

• Vibration that increases with revs
• Blades bent or tips missing after a grounding or strike
• Top speed down with revs up
• Cavitation pitting along the leading edges
• Line marks or cuts around the hub

🛠️ Service Notes

• The matching front propeller in F2 is 3857557, and the pair is also sold as set 3857563
• The installation hardware for the Type D, I, IH, F and FH propellers is front propeller nut 3851569 and rear propeller nut 21631162
• Check the spline form before ordering - Type F is for the straight-spline DPS and DPS-A drives, and a helical-spline drive needs the Type FH propeller of the same size
• Volvo Penta specifies type F or FH stainless steel propellers for 6-cylinder diesel engines, engines exceeding 240 hp, and boats capable of speeds above 38 knots (45 mph).
• Type FH is the matching range for DPS-B drives, which have helical (spiral) splines. A Type F propeller will not fit a DPS-B drive.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 8.1GXi-JF, 8.1OSi-J, 8.1OSi-JF, 5.7GXiC-J, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7GiC-300-J, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 4.3OSi-J, 4.3OSi-JF, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXiC-J, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 4.3Gi-200-R, 4.3GI-Q, 4.3GL-J, 4.3GL-JF, 4.3GL-P, 4.3GXiE-M, 4.3GXi-P, 4.3GXiE-P, 4.3GXi-Q, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 4.3Gi-200-S
• Volvo Penta D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-170I-G, D3-200I-G, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta DP-S, DP-S1, DP-SM, DP-SMTD, DP-SMTD1, DP-SMTD3
• Volvo Penta DPS-A, DPS-A OXI
• Volvo Penta XDP-B, XDP-D3
• Volvo Penta V6-200-A
