38580-ZW5-004 06380-ZW5-000 Honda Main Relay Assembly | Genuine Used Part

🔧 Product Description

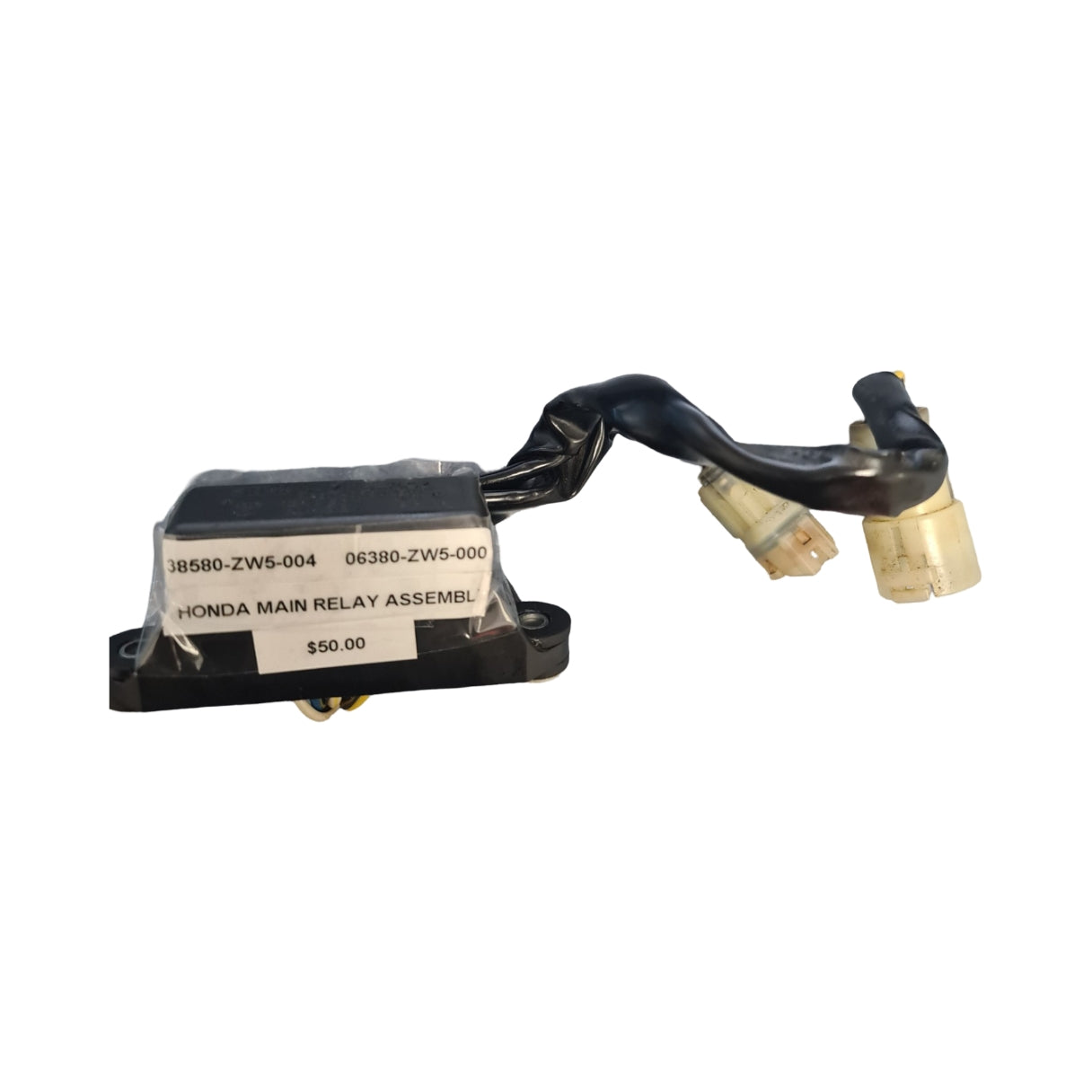

Genuine Honda Main Relay Assembly / Kit - Part Numbers: 38580-ZW5-004 / 06380-ZW5-000

A genuine Honda Marine main relay assembly used on selected BF115 and BF130 four-stroke outboards. Honda 38580-ZW5-004 is listed as the main relay assembly and is superseded by / supplied through the 06380-ZW5-000 main relay kit reference.

⚙️ Key Features

• Genuine Honda Marine main relay assembly

• Correct Honda part numbers 38580-ZW5-004 and 06380-ZW5-000

• 38580-ZW5-004 supersedes to / is serviced by 06380-ZW5-000

• Used on selected Honda BF115 and BF130 electrical systems

• Match by harness plug, relay case, frame serial and starter-cable / electrical diagram

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 38580-ZW5-004 Honda relay assembly, main reference

• 38580-ZW5-014 related later main relay assembly reference in parts-list data

• 06380-ZW5-000 Honda kit, main relay reference

OEM / Related Numbers:

• 38580-ZW5-004

• 38580ZW5004

• 38580-ZW5-014

• 38580ZW5014

• 06380-ZW5-000

• 06380ZW5000

• Main relay assembly

• Kit, main relay

• Honda BF115 main relay

• Honda BF130 main relay

• ZW5 main relay

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

• Genuine Honda 06380-ZW5-000 main relay kit services the 38580-ZW5-004 relay reference

🚤 Compatibility

Commonly used on:

• Honda BF115 / BF130 main relay electrical systems

Typically suits:

• Engine models:

• Honda BF115A main relay applications where 38580-ZW5-004 / 06380-ZW5-000 is specified

• Honda BF130A main relay applications where 38580-ZW5-004 / 06380-ZW5-000 is specified

• Honda BF115 115HP four-stroke applications from approximately 1999-2007+ where the main relay diagram matches

• Honda BF130 130HP four-stroke applications from approximately 1999-2007+ where the main relay diagram matches

• Honda BF130A3 starter-cable / electrical layout listing 38580-ZW5-004 main relay

• HP Range: 115HP - 130HP

• Engine Type: Honda four-stroke outboard main relay / electrical power supply circuit

• Year Range: commonly 1999 - 2007+ depending on frame serial

• Serial / Frame Note: Match by exact Honda model code, frame serial, relay plug, case shape, mounting location and electrical diagram before installation.

🔌 Function

The main relay supplies switched electrical power to engine control and starting-related circuits so the engine electrical system can operate correctly.

Common signs replacement is needed:

• No power to engine electrical system

• Engine cranks but will not start due to relay power loss

• Intermittent ECU or fuel-system power

• Main relay clicks repeatedly

• Corroded relay terminals

• Electrical power returns when a known-good main relay is fitted

• Relay case damaged or water-affected

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
