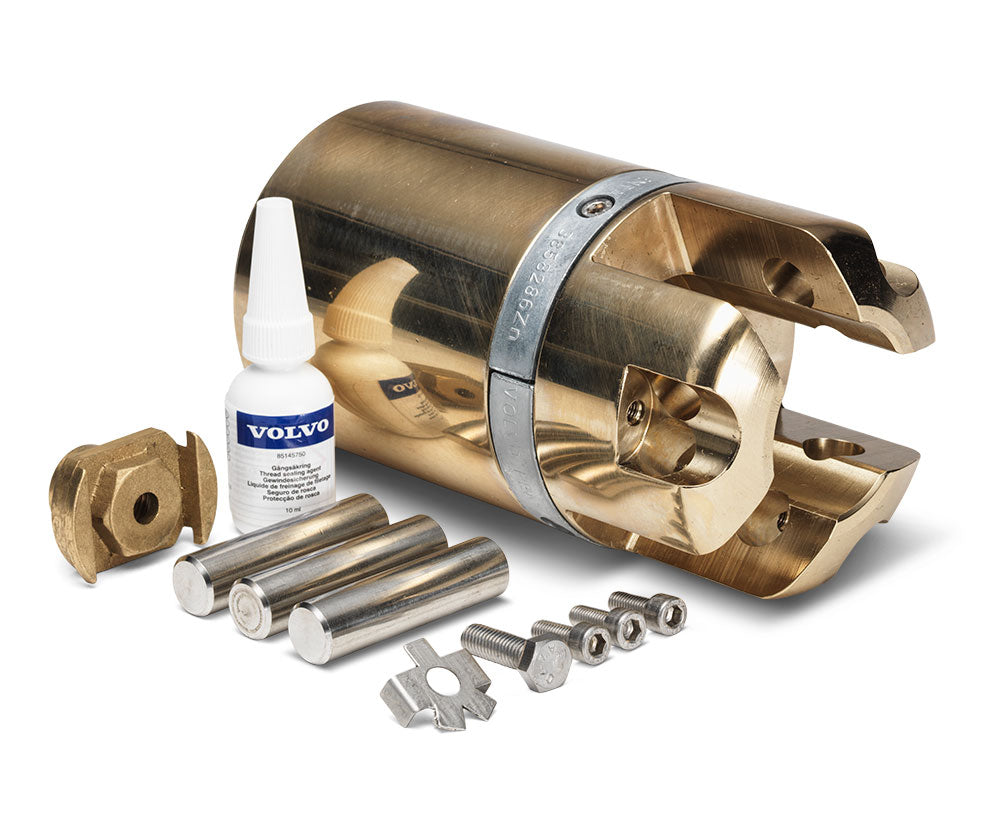

3858955 Hub Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta hub kit for the 3-blade folding propeller for 20-60 hp. Hub kit for S-drives 110S, 120S, MS25S, 130S, 150S. For a complete propeller, order one blade kit and one hub kit.

🚤 Compatibility

• Engine Family: D, HS, MS, ZF, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• Hub kit for S-drives 110S, 120S, MS25S, 130S and 150S
• For three-blade folding propellers, 20-60 hp
• Shock-absorbing rubber bushing with galvanic isolation
• Includes zinc anodes, locking fluid and installation hardware
• Propeller nut and key not included
• 4.554 kg
• Supersedes 3858284
• Hub kit includes anodes, locking fluid and installation hardware.
• Nut and key are not included in the hub kit.
• For the 3-blade folding propeller.
• Hubs for saildrive propellers include a shock-absorbing rubber bushing that also galvanically isolates the propeller from the saildrive.
• Fits: Volvo Penta S-drives 110S, 120S, MS25S, 130S, 150S

🔌 Function

Mounts a folding propeller to the S-drive, transmitting drive torque into the blade carrier and holding the propeller square on its seat.

⚠️ Common Signs of Failure

• Blades not opening or closing cleanly when going into gear
• Vibration or a knock that appears only under drive
• Propeller slipping or thrust dropping away
• Splines and drive faces worn, fretted or polished bright
• Corrosion locking the hub so it will not part from the drive

🛠️ Service Notes

• Order by S-drive designation - the kit covers 110S, 120S, MS25S, 130S and 150S
• The nut and key are excluded from the kit, so order those separately against the shaft size
• The blade kit is a separate purchase chosen by diameter, pitch and hand, and aluminium anodes for salt and brackish water are listed separately in the anode section
• For a complete propeller, order one blade kit and one hub kit.
• Propeller size has to be calculated to match engine and gear ratio - contact your Volvo Penta dealer.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3858955 → Supersedes 3858284 → Supersedes 3581261

OEM / Related Numbers

• 3858284 earlier number superseded by this part
• 3581261 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 130S-D, 130SR-D, 150S-D, 150SR-D, 150S-C, 150SR-C
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta MS10A-A, MS10A-B, MS10L-A, MS10L-B
• Volvo Penta MS15L-A, MS15A-A, MS15A-B, MS15L-B
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040B, MD2040-C, MD2040-D
• Volvo Penta MS25L, MS25A-A, MS25A
• Volvo Penta HS25A
• Volvo Penta ZF25
