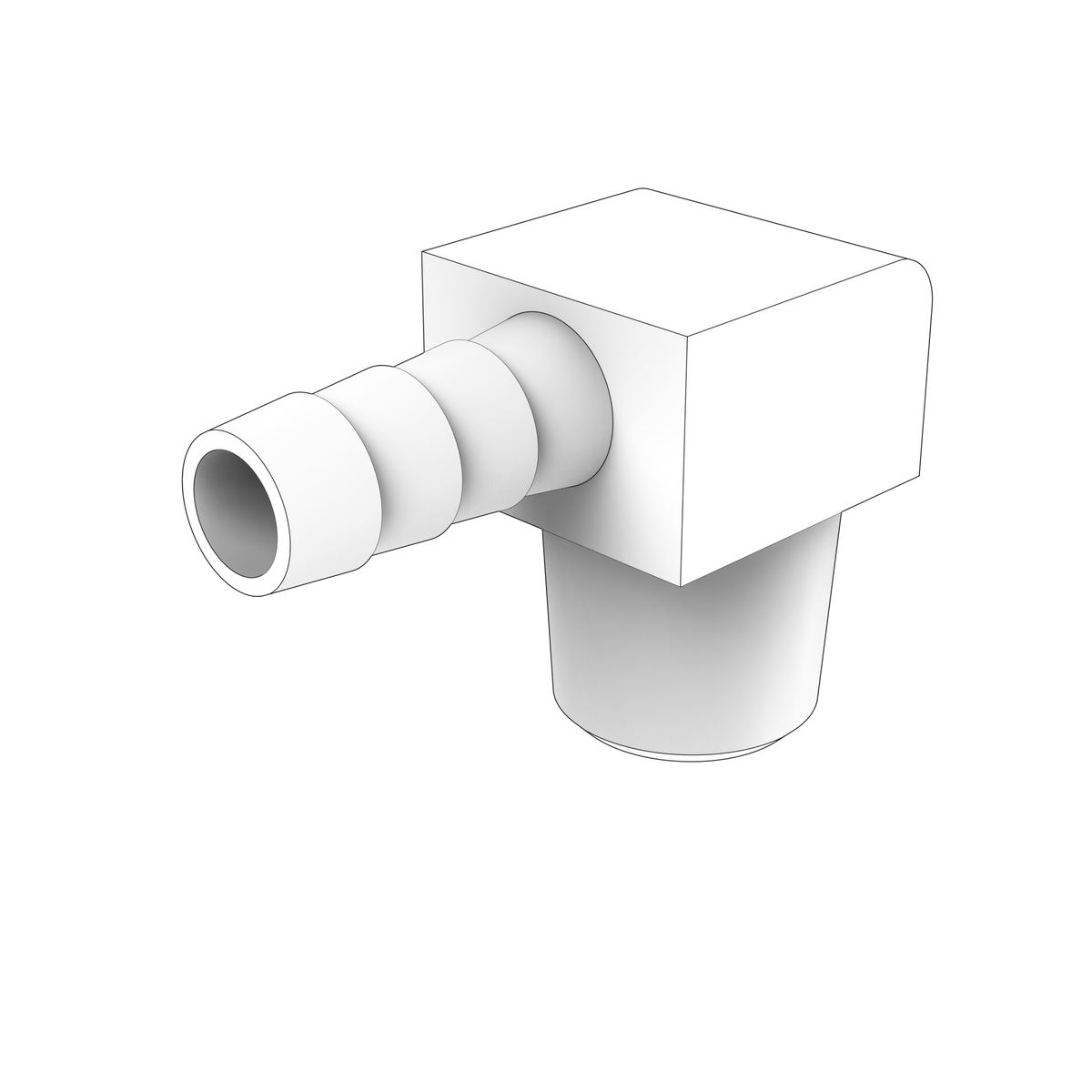

3860585 Elbow Nipple | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta elbow nipple from the Cooling System group, weighing 0.079 kg and listed for 228 applications on DPX and V-series installations. The elbow form is what distinguishes it from the straight nipple 3860290 and the t-nipple 3860613 in this range, which branch or run straight rather than turning the flow.

🚤 Compatibility

• Engine Family: DPX, V
• HP Range: 270-320 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.079 kg
• 228 applications on DPX and V-series installations
• Elbow form — 3860290 is the straight nipple and 3860613 the t-nipple
• Cooling System group

🔌 Function

Turns the flow through an angle at a threaded connection, letting the hose leave the housing on a route a straight fitting could not take.

⚠️ Common Signs of Failure

• Weeping or a wet film at the threaded joint or the hose spigot
• Thread galled, cross-started or corroded
• Bore restricted by scale or debris
• Hex rounded off by a poorly fitting spanner
• Hose cracked at the spigot where the elbow forces a tight bend

🛠️ Service Notes

• Set the elbow to the angle the hose needs before finally tightening, so the hose is not twisted or strained
• Renew the sealing washer or O-ring rather than tightening a weeping fitting harder

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1Gi-B, 8.1Gi-BF, 8.1Gi-C, 8.1Gi-CF, 8.1GiC-J, 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1Gi-D, 8.1Gi-DF, 8.1Gi-E, 8.1Gi-EF, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GiE-P, 8.1Gi-F, 8.1Gi-FF, 8.1Gi-GF, 8.1Gi-HF, 8.1GiI-A, 8.1GiI-B, 8.1GiI-C, 8.1GiI-D, 8.1GiI-E, 8.1GiI-F, 8.1GiI-G, 8.1GiI-H, 8.1Gi-J, 8.1Gi-JF, 8.1GSi-A, 8.1GSiI-A, 8.1GXi-A, 8.1GXi-AF, 8.1GXi-B, 8.1GXi-BF, 8.1GXi-C, 8.1GXi-CF, 8.1GXi-D, 8.1GXi-DF, 8.1GXi-E, 8.1GXi-EF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-FF, 8.1GXi-GF, 8.1GXiI-A, 8.1GXiI-B, 8.1GXiI-C, 8.1GXiI-D, 8.1GXiI-E, 8.1GXiI-F, 8.1GXiI-G, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 8.1IPSE-JF, 8.1OSi-A, 8.1OSi-AF, 8.1OSi-B, 8.1OSi-BF, 8.1OSi-CF, 8.1OSi-DF, 8.1OSi-JF, 8.1OSiE-JF, 5.7GXi-320-R, 5.7GXiE-320-R, 5.7GXi-CF, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXi-DF, 5.7GXi-EF, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-P, 5.7GXi-FF, 5.7OSXi-DF, 5.7GXi-GF, 5.7GXi-HF, 5.7GXiI-C, 5.7GXiI-D, 5.7GXiI-E, 5.7GXiI-F, 5.7GXiI-G, 5.7GXiI-H, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSi-AF, 5.7OSi-BF, 5.7OSi-CF, 5.7OSi-EF, 5.7OSi-GF, 5.7OSXi-AF, 5.7OSXi-BF, 5.7OSXi-CF, 5.7OSXi-EF, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXi-GF, 5.0OSi-DF, 5.0OSi-EF, 5.0OSi-JF, 5.0OSiE-JF, 5.0OSi-FF, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7Gi-300-P, 5.7Gi-300-R, 5.7GiE-300-R, 5.7Gi-BF, 5.7Gi-CF, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7Gi-DF, 5.7Gi-EF, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7OSi-DF, 5.7Gi-FF, 5.7Gi-GF, 5.7GiI-B, 5.7GiI-C, 5.7GiI-D, 5.7GiI-E, 5.7GiI-F, 5.7GiI-G, 4.3OSi-GF, 4.3OSi-JF, 5.0GXiCE-JF, 5.0GXiC-JF, 5.0GXiCE-MF, 5.0GXi-DF, 5.0GXi-EF, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0OSi-CF, 5.0GL-FF, 5.0GL-HF, 5.0GL-J, 5.0GL-JF, 5.0GXi-270-R, 5.0GXiE-270-R, 5.0GXi-BF, 5.0GXi-CF, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P, 5.0GXi-FF, 5.0GXi-GF, 5.0OSi-BF, 4.3GL-EF, 4.3GL-GF, 4.3GL-J, 4.3GL-JF, 4.3GXi-BF, 4.3GXi-CF, 4.3GXi-DF, 4.3GXi-E, 4.3GXi-EF, 4.3GXiE-M, 4.3GXi-FF, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-BF, 4.3OSi-CF, 4.3OSi-DF, 4.3OSi-E, 4.3OSi-EF, 4.3OSi-FF
• Volvo Penta V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B
• Volvo Penta DPX375-A, DPX375-B, DPX375-BF, DPX375-CF
• Volvo Penta DPX420-CF, DPX420-A, DPX420-B, DPX420-BF
