• 3860881 Cylinder | Genuine Volvo Penta Part
1 1

3860881 Cylinder | Genuine Volvo Penta Part

3860881 Cylinder | Genuine Volvo Penta Part

$1,469.27 AUD
$1,469.27 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

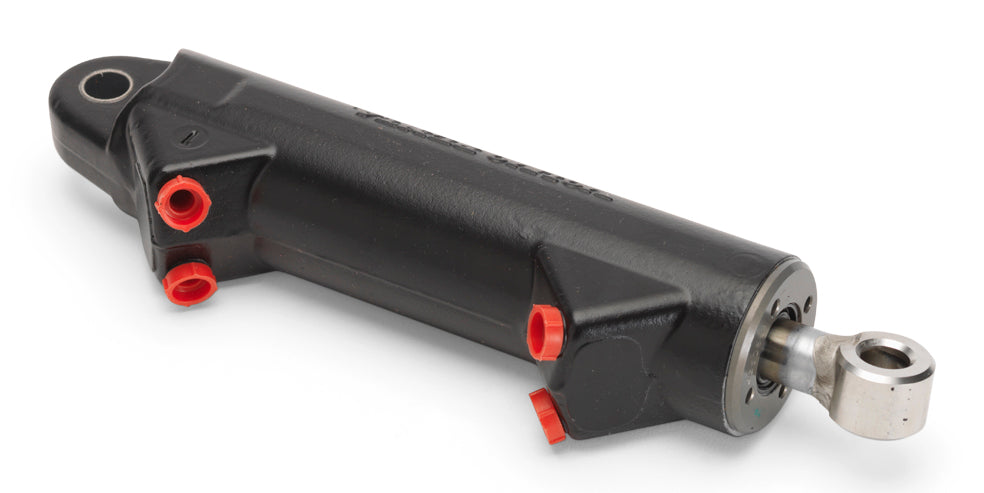

Genuine Volvo Penta hydraulic cylinder from the Marine Propulsion group, weighing 1.021 kg and listed for 17 applications across the TSK, TMD, AD, DP, SP and SHIELD families. It supersedes part number 872837, catalogued earlier as a hydraulic cylinder.

🚤 Compatibility

Typically suits:

  • Volvo Penta TSK DP-E
  • Volvo Penta TSK DP-G
  • Volvo Penta TSK DPX-A
  • Volvo Penta TMD31D
  • Volvo Penta AD31D
  • Volvo Penta AD31D-A
  • Volvo Penta AD31XD
  • Volvo Penta DP-D1
  • Volvo Penta SP-C1
  • Volvo Penta Shield
  • Volvo Penta Shield for DPX
  • Volvo Penta TAMD41P
  • Volvo Penta TAMD31M
  • Volvo Penta TAMD31D
  • Volvo Penta TAMD42B
  • Volvo Penta KAD42B
  • Volvo Penta KAMD42B
  • Engine Family: TSK, TMD, AD, DP, SP, S, TAMD, KAD, KAMD

⚙️ Key Features

  • Marine Propulsion group
  • 1.021 kg
  • Supersedes 872837
  • 17 applications across TSK, TMD, AD, DP, SP and SHIELD
  • 2 used per assembly

🔌 Function

Extends and retracts under hydraulic pressure to move the drive or the component it is coupled to, and holds that position against load.

⚠️ Common Signs of Failure

  • Drive or ram creeping down under load instead of holding position
  • Movement slow, jerky or only in one direction
  • Oil weeping around the rod seal or from the end of the cylinder
  • Rod pitted, scored or bent, which will cut a new seal straight away
  • Air in the system, showing as spongy or noisy operation

🛠️ Service Notes

  • A second cylinder 3860978 sits only 64 grams away at 1.084 kg with a different superseded number and a different family list, so order by part number and check the superseded number on the old unit
  • Relieve the pressure and support the drive before disconnecting anything, then bleed and cycle the system fully after fitting
  • Check the rod condition and the oil for contamination before condemning the cylinder

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 3860881 → Supersedes 872837 → Supersedes 854695

OEM / Related Numbers

  • 872837 earlier number superseded by this part
  • 854695 earlier number superseded by this part

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
