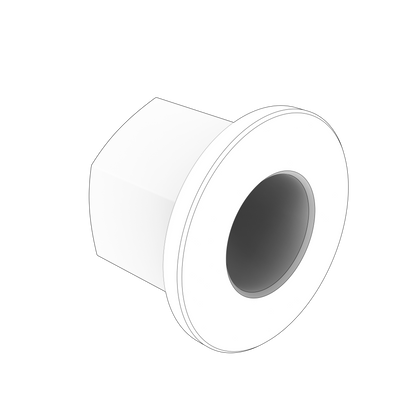

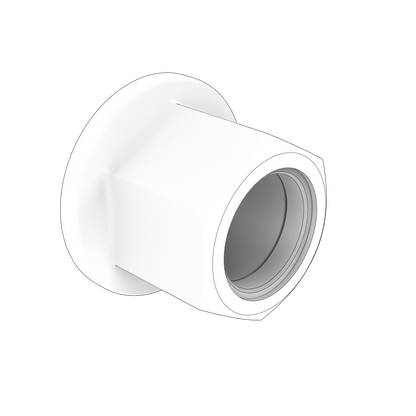

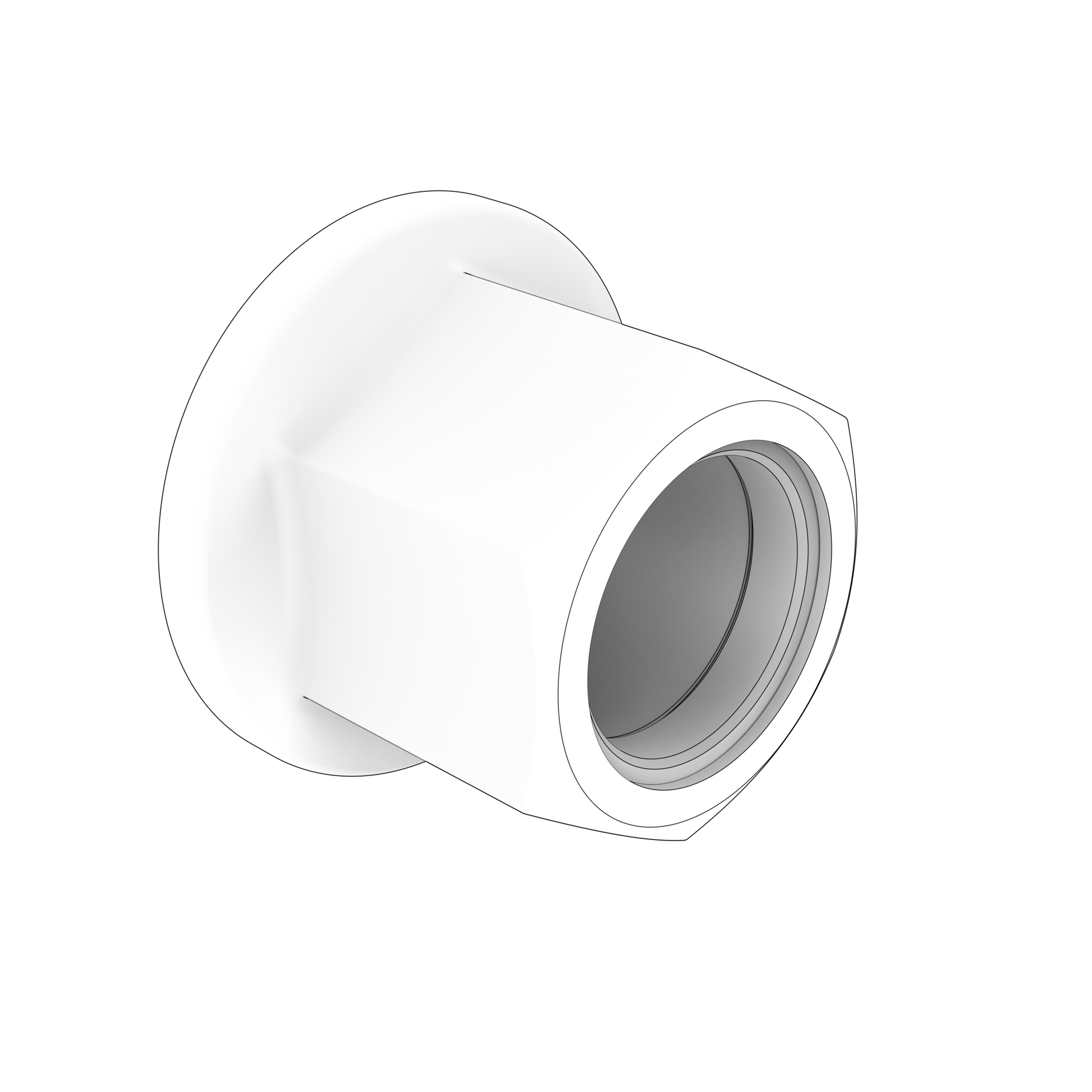

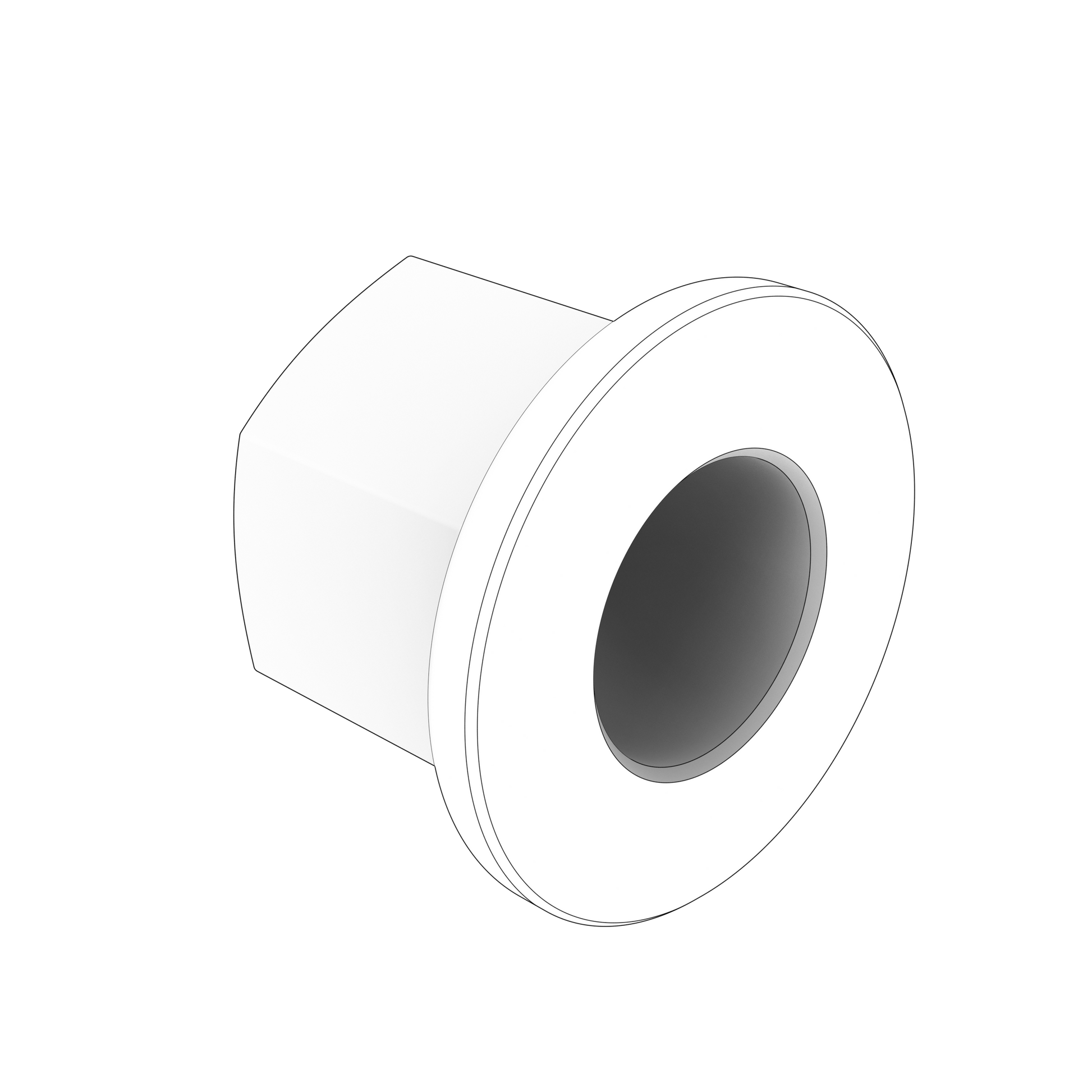

3863213 Propeller Nut | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta propeller nut, rear. The folder lists it as installation hardware, Duoprop type G on the previous version DPH-A to DPH-C drives and Duoprop type GR on DPR drives

🚤 Compatibility

• Engine Family: D, DPH, DPR
• HP Range: 225-400 HP

Full model list at the end of this description.

⚙️ Key Features

• Rear position
• 0.154 kg
• 43 applications across the D, DPH and DPR families
• Not interchangeable with the front nut on a duo prop drive
• Propeller nut, rear.
• Installation hardware, Duoprop type G on the previous version DPH-A to DPH-C drives and Duoprop type GR on DPR drives

🔌 Function

Clamps the propeller onto its shaft taper or splines and holds it there against thrust and torque reversals.

⚠️ Common Signs of Failure

• Propeller found loose or able to be rocked on the shaft
• Vibration that comes and goes with load
• Thread damaged, stretched or picked up
• Locking device or tab damaged, or found already broken
• Fretting marks on the shaft or propeller hub face

🛠️ Service Notes

• Confirm you need the rear nut and not the front one before ordering
• Fit a new locking tab or split pin as required and tighten to the specified figure — a propeller nut is not a fastener to guess at
• Check the shaft threads and the hub faces for fretting while the propeller is off

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-330A-D, D6-330A-F, D6-370A-F, D6-330A-C, D6-370A-D, D6-330A-E, D6-370A-E, D6-280I-D, D6-310I-D, D6-300A-F, D6-330I-C, D6-330I-D, D6-280A-C, D6-310A-C, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-400A-E, D6-400A-F
• Volvo Penta D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-225I-C, D4-225I-D, D4-225A-C, D4-225A-D, D4-225A-E, D4-225A-F
• Volvo Penta DPR-A, DPR-C, DPR-D, DPR-B
• Volvo Penta DPH-A, DPH-C
