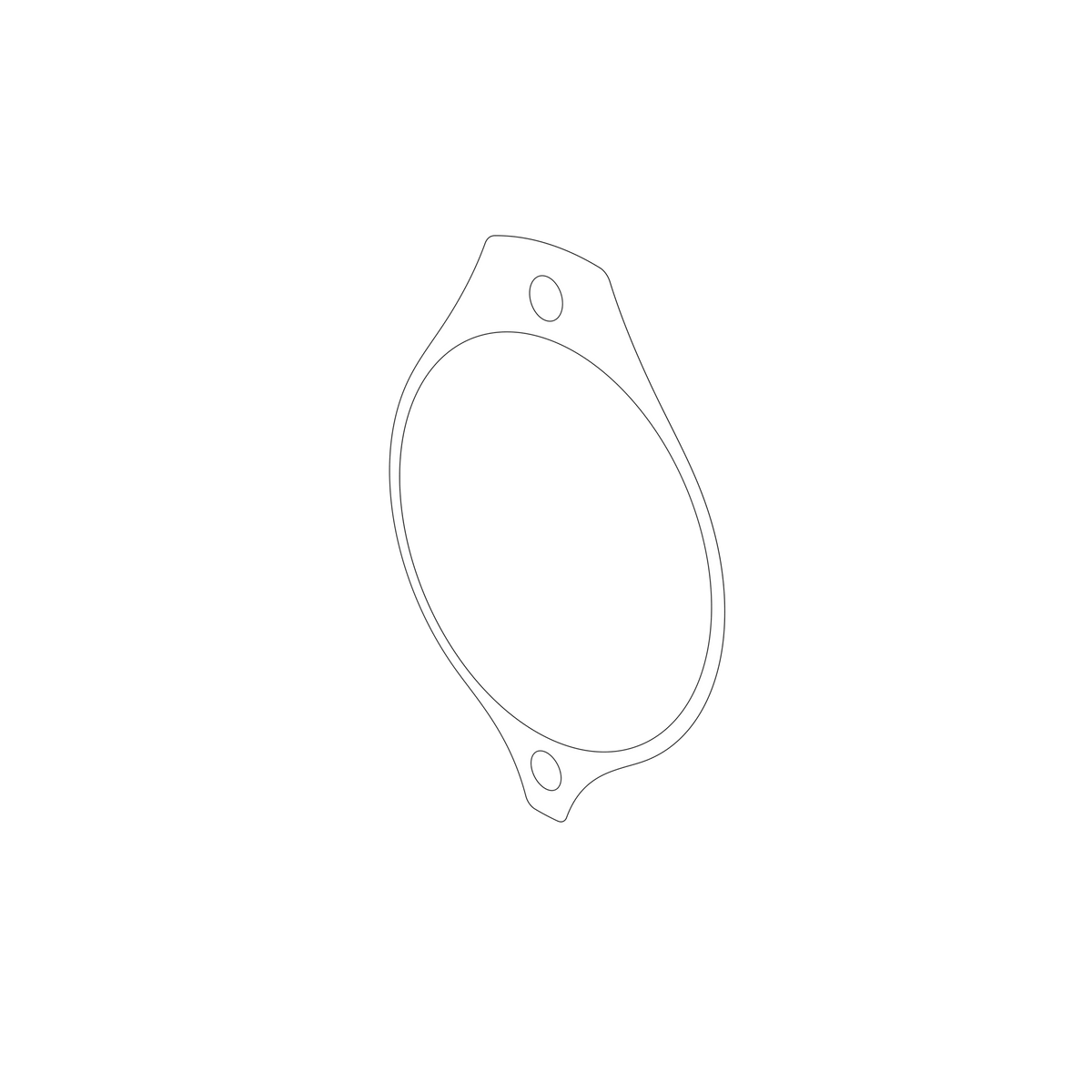

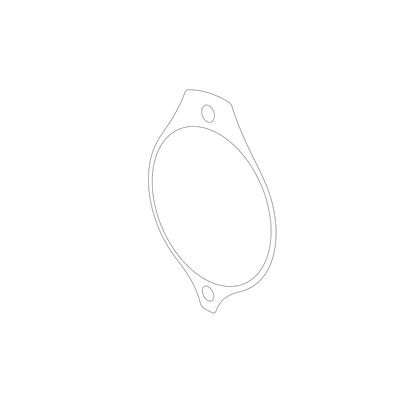

3875229 Shim | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta shim 0.10 mm thick, listed for 20 applications across the DPH, D and DPI series. It supersedes part number 3863320. This is the thinnest of the four shim thicknesses offered.

🚤 Compatibility

Typically suits:

• Volvo Penta DPH-D1
• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D4-260A-F
• Volvo Penta D4-300A-F
• Volvo Penta D6-300A-F
• Volvo Penta D4-225A-F
• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D6-400A-F
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: DPH, D, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• 0.10 mm thick
• 20 applications across the DPH, D and DPI series
• Supersedes 3863320
• Thinnest of the four shims in the set

🔌 Function

Sets and adjusts the running clearance or preload in a gear or bearing stack by taking up the gap in fine steps.

⚠️ Common Signs of Failure

• Gear or bearing preload out of specification on assembly
• Whine or rumble from an incorrectly shimmed stack
• Shim found dished, notched or spun in service
• Fretting marks on the shim faces

🛠️ Service Notes

• Order by thickness - the four shims run 0.10 mm (3875229), 0.16 mm (3875230), 0.25 mm (3875231) and 0.40 mm (3875232), and the published weights do not rise with thickness, with the 0.16 mm shim listed heavier than the 0.25 mm one
• Measure and shim to the specified clearance rather than reusing the old thickness, and fit shims dry and clean

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3875229 → Supersedes 3863320

OEM / Related Numbers

• 3863320 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
