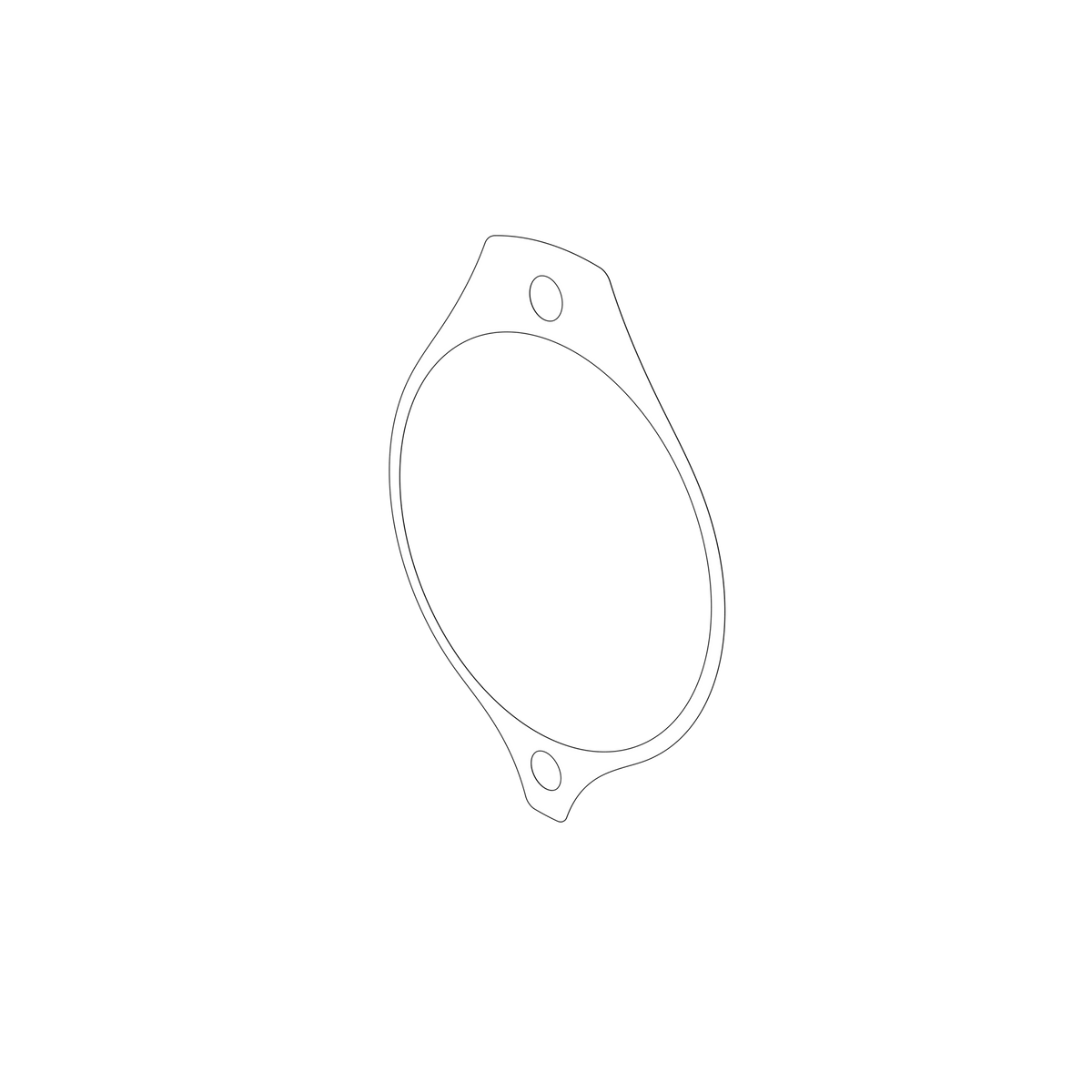

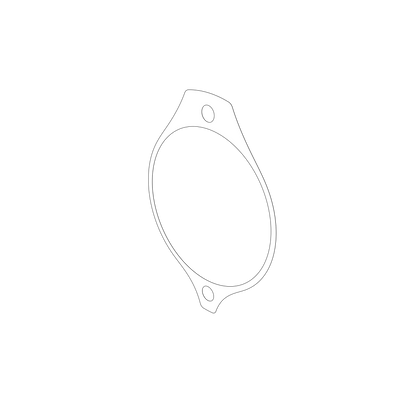

3875231 Shim | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta shim 0.25 mm thick, listed for 20 applications across the DPH, D and DPI series. It supersedes part number 3863322.

🚤 Compatibility

Typically suits:

• Volvo Penta DPH-D1
• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D4-260A-F
• Volvo Penta D4-300A-F
• Volvo Penta D6-300A-F
• Volvo Penta D4-225A-F
• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D6-400A-F
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: DPH, D, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• 0.25 mm thick
• 20 applications across the DPH, D and DPI series
• Supersedes 3863322
• Third of the four thicknesses in the set

🔌 Function

Sets and adjusts the running clearance or preload in a gear or bearing stack by taking up the gap in fine steps.

⚠️ Common Signs of Failure

• Gear or bearing preload out of specification on assembly
• Whine or rumble from an incorrectly shimmed stack
• Shim found dished, notched or spun in service
• Fretting marks on the shim faces

🛠️ Service Notes

• The thinner 0.16 mm shim 3875230 is published heavier than this one, so ignore weight entirely and order by thickness
• The set runs 0.10 mm (3875229), 0.16 mm (3875230), 0.25 mm (3875231) and 0.40 mm (3875232)
• Measure and shim to the specified clearance rather than reusing the old thickness

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3875231 → Supersedes 3863322

OEM / Related Numbers

• 3863322 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
