3884189 Shim | Genuine Volvo Penta Part

🔧 Product Description

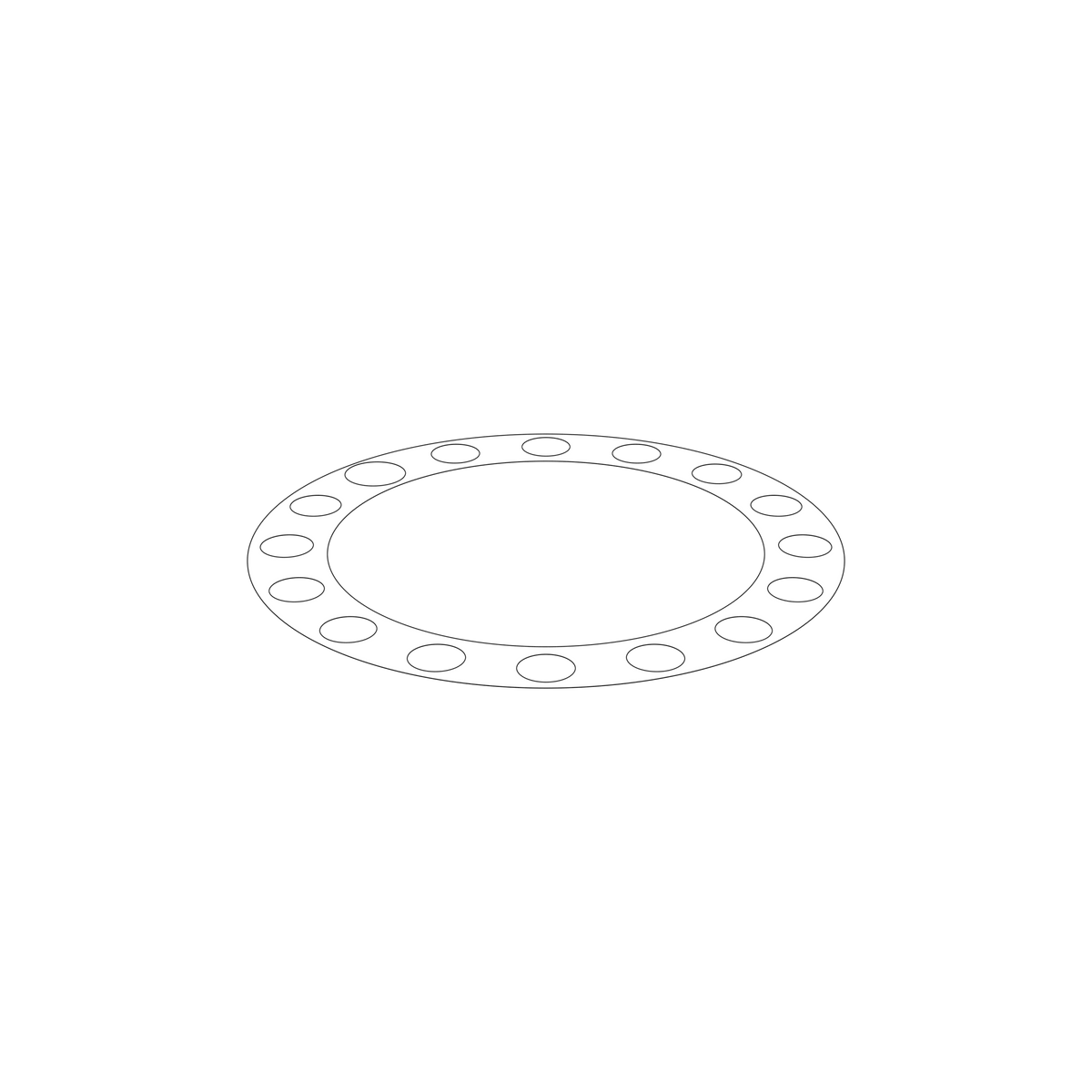

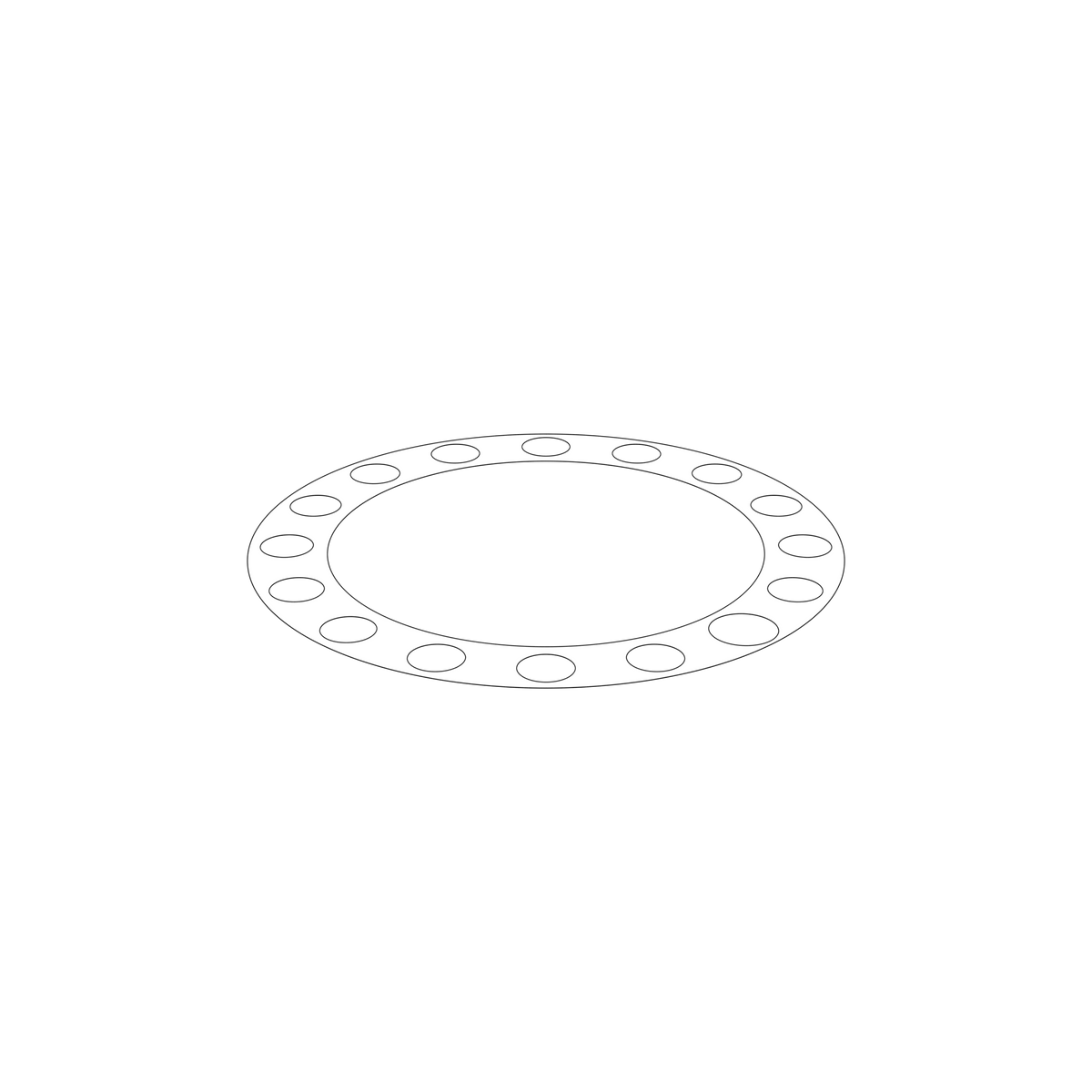

Genuine Volvo Penta shim, 0.15 mm thick, from the Marine Propulsion group and listed for 35 applications across the IPS and D families. It is the only 0.15 mm shim here, unlike the 0.08 mm, 0.13 mm and 0.25 mm sizes, which each appear under two different part numbers.

🚤 Compatibility

• Engine Family: IPS, D

Full model list at the end of this description.

⚙️ Key Features

• 0.15 mm thick
• Only 0.15 mm shim in this group
• Marine Propulsion group
• Listed for 35 IPS and D applications
• TH=0.15mm (Volvo assembly listing)

🔌 Function

Sets a running clearance or preload by adding a measured thickness to the stack, so a bearing or gear ends up in its specified position.

⚠️ Common Signs of Failure

• Gear whine that rises or falls with load
• Backlash or end float outside specification when measured
• Bearing surfaces discoloured from heat
• Tooth contact pattern sitting to one side

🛠️ Service Notes

• Select thickness from the measured stack rather than copying the shim that came out
• Weights across this shim series do not follow thickness, so order on the thickness figure alone

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
