🔧 Product Description

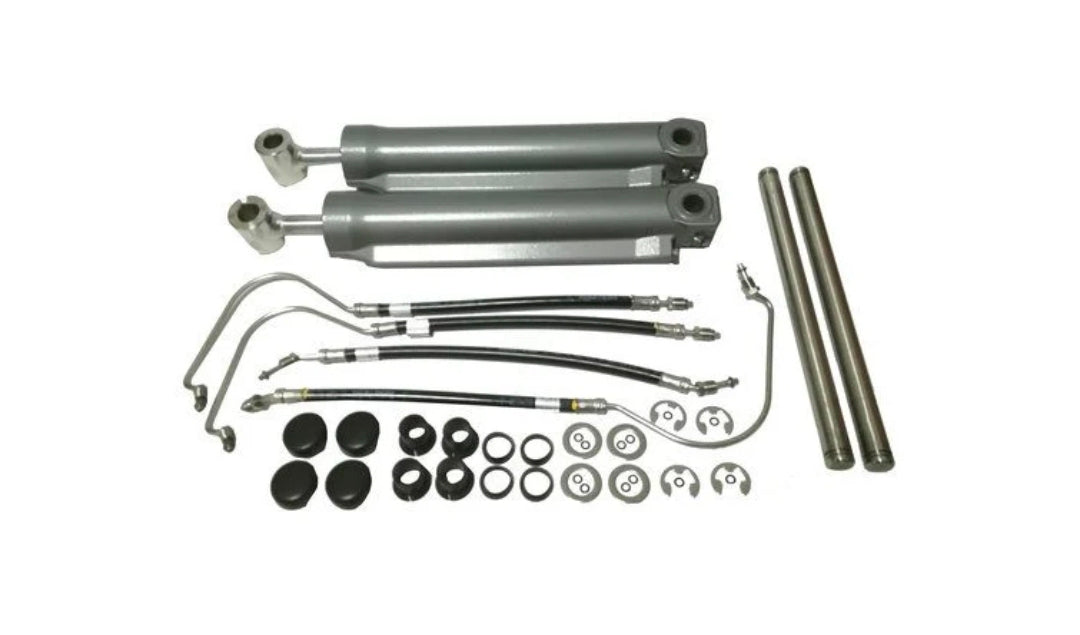

Aftermarket OMC / Volvo Penta SX / DP-SM Complete Trim Cylinder Kit - Part Number: 3885196

A complete twin-cylinder conversion and service package for OMC Cobra and Volvo Penta SX/DP-SM sterndrives. It replaces first-generation trim cylinders and supplies both rams, all four hydraulic lines and the identified mounting/sealing hardware needed to renew the entire cylinder system.

⚙️ Key Features

• Complete twin-cylinder and hose replacement package

• 2 × hydraulic trim cylinders - Part Number: 3857470

• 2 × pivot pins - Part Number: 3857431

• 4 × washers - Part Number: 3857588

• 4 × outer bushings - Part Number: 3853424

• 4 × inner rings/bushings - Part Number: 3853423

• 4 × E-circlips - Part Number: 3857521

• 4 × protective caps - Part Number: 3857522

• 12 × hydraulic-line O-rings - Part Number: 3852165

• 1 × starboard upper trim hose - Part Number: 3853855

• 1 × starboard lower trim hose - Part Number: 3857524

• 1 × port upper trim hose - Part Number: 3853857

• 1 × port lower trim hose - Part Number: 3857523

• 1 × installation/instruction booklet - supplied under kit number 3885196

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3885196 → Replaces complete cylinder arrangements 3852414, 3850683 and 3852392

• 3885196 conversion → Replaces first-generation cylinders 0984466 and 0985660

• 3857470 → Individual service cylinder supplied in the confirmed kit breakdown

OEM / Related Numbers:

• 3885196

• 03885196

• 3852414

• 3850683

• 3852392

• 0984466

• 0985660

• 3857470

• 3857431

• 3857588

• 3853424

• 3853423

• 3857521

• 3857522

• 3852165

• 3853855

• 3857524

• 3853857

• 3857523

• RM3885196

Aftermarket / Verified Equivalents:

• Recmar / aftermarket complete kit: RM3885196

🚤 Compatibility

Commonly used on:

• OMC Cobra and Volvo Penta SX/DP-SM sterndrive trim systems

• Replacement of earlier fore/aft hose-entry cylinder installations

Typically suits:

• Engine / drive models:

• SX-C, SX-C1, SX-C1AC, SX-CLT, SX-CLT1, SX-R, SX-R1, SX-R2, SX-S and SX-SLT

• SX-M, SX-MLT and SX-MACLT where the model-specific kit instruction confirms fitment

• DP-SM dual-prop sterndrives

• HP Range: Drive application; not engine-horsepower specific

• Engine / Drive Type: Complete twin hydraulic trim-cylinder, hose and mounting-hardware system

• Year Range: Approximately 1994-2006, including conversion of earlier compatible Cobra/SX systems

• Serial / Identification Range: Confirm the transom assembly and original cylinder references. This kit does not suit the later SX-A/DPS-A trim-cylinder family.

🔌 Function

Replaces the complete twin-ram hydraulic actuation system so both cylinders, hoses and mounting points operate as a matched set and hold the sterndrive at the commanded angle.

Common signs of failure or replacement requirement:

• Both original cylinders are leaking or corroded

• Drive settles despite repeated resealing

• Uneven movement caused by mismatched cylinders

• Multiple hose leaks or damaged fittings

• Obsolete first-generation cylinders require conversion to the later service system

📦 Condition

• Brand-new aftermarket replacement kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
