3885317 Aftermarket Volvo Penta Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

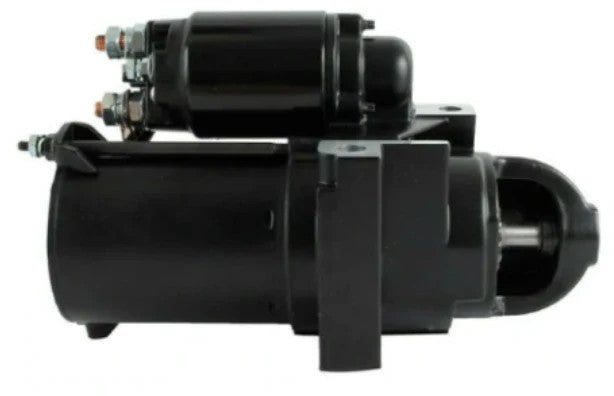

Aftermarket replacement GM Petrol Offset-Mount Marine Starter Motor - Replaces Part Number: 3885317

New aftermarket SAE J1171 ignition-protected starter replacing Volvo Penta 3885317 for later GM-block marine petrol engines. It is a 12-volt, approximately 1.4kW clockwise PMGR starter with an 11-tooth pinion.

⚙️ Key Features

• 12-volt electrical system

• Approximately 1.4kW rated output

• Clockwise rotation viewed from the drive end

• 11-tooth pinion

• Staggered two-bolt PMGR mounting for a 14-inch flywheel

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 3885317

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3885317 → Supersedes/cross-references 3860566, 3857747 and 3660566-3

OEM / Related Numbers:

• 3885317

• 3860566

• 3860566-3

• 3857747

• 3660566-3

• MerCruiser 50-807904A1

• 50-863007A1

• 863007A1

• Delco 8000282

• 9000884

Aftermarket / Verified Equivalents:

• Sierra: 18-5919 / 18-6275

• ARCO: 30433

• WAI: 6792BN

• Recmar: REC3885317

🚤 Compatibility

Commonly used on:

• Volvo Penta and MerCruiser GM-block marine petrol starting systems

Typically suits:

• Engine / Generator models:

• Volvo Penta and MerCruiser 3.0L four-cylinder

• 4.3L V6

• 5.0L, 5.7L and 6.2L V8

• 7.4L, 8.1L and 8.2L applications using a 14-inch flywheel and offset mount

• HP / Output Range: Engine-rating dependent

• Year Range: Principally 1998-2012; engine and flywheel dependent

• Starter Identification: Confirm 11 teeth, 14-inch flywheel and staggered two-bolt mounting.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
