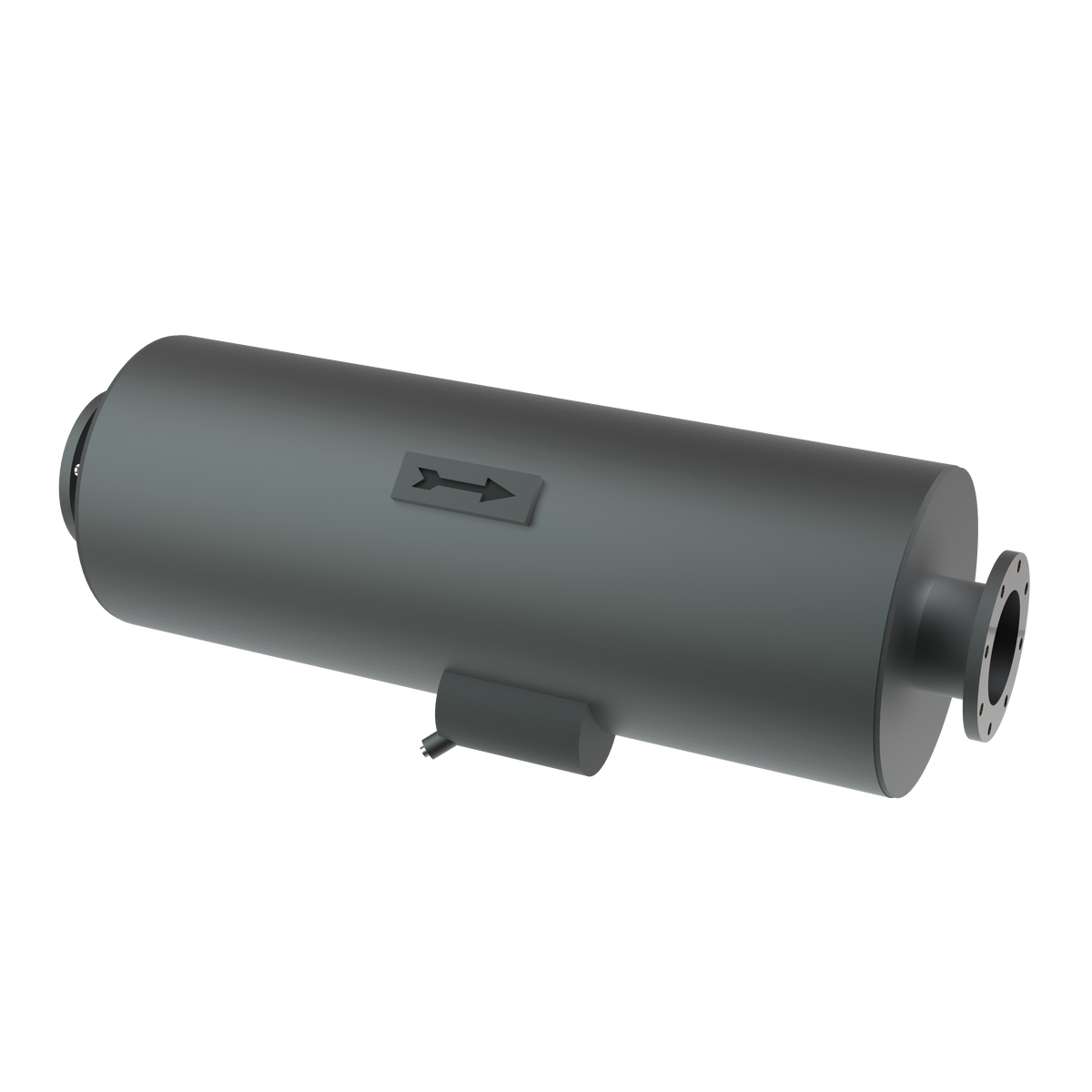

3886134 Muffler | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta muffler with a 7 inch connection for dry exhaust and with a spark arrestor, from the Inlet and Exhaust System group, weighing 198.5 kg and listed for 42 applications across the D series. The equivalent muffler without the arrestor is 3886131 at 194.59 kg, and only about 4 kg separates them.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• 7 inch connection
• For dry exhaust installations
• With spark arrestor
• 198.5 kg
• 42 applications across the D series

🔌 Function

Silences the dry exhaust while its arrestor traps carbon and sparks carried in the gas stream.

⚠️ Common Signs of Failure

• Exhaust louder than usual or with a changed note
• Sparks or glowing carbon visible at the outlet
• Back pressure and lost power as the arrestor blocks with soot
• Shell corroded through or blistered by heat
• Soot leaks or staining at flanged joints

🛠️ Service Notes

• The spark arrestor is the only real difference from muffler 3886131, and less than 4 kg separates them, so order by whether an arrestor is required
• Service the arrestor element rather than leaving it to block, since a clogged arrestor raises back pressure and costs power
• Support the muffler at its designed mountings, as 198.5 kg hanging on the flanges will crack them

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C2-A MG, D13C1-A MG
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2G, D9A2J, D9A2L MH, D9A2A, D9A2C, D9A2E
• Volvo Penta D12D-A MG, D12D-C MH, D12D-E MG, D12D-E MH, D12D-G MH
• Volvo Penta D8A5-A MG, D8A6-A MG
