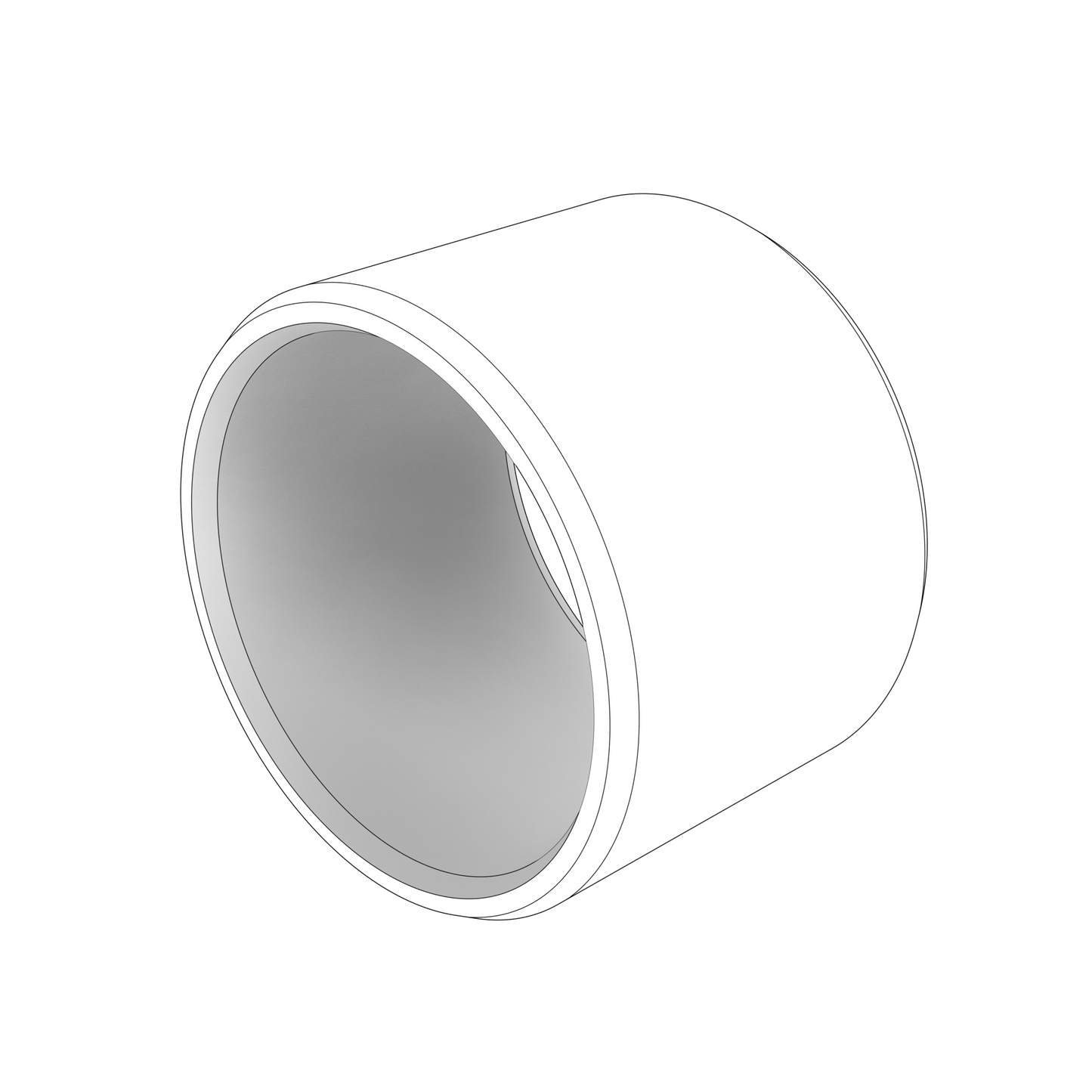

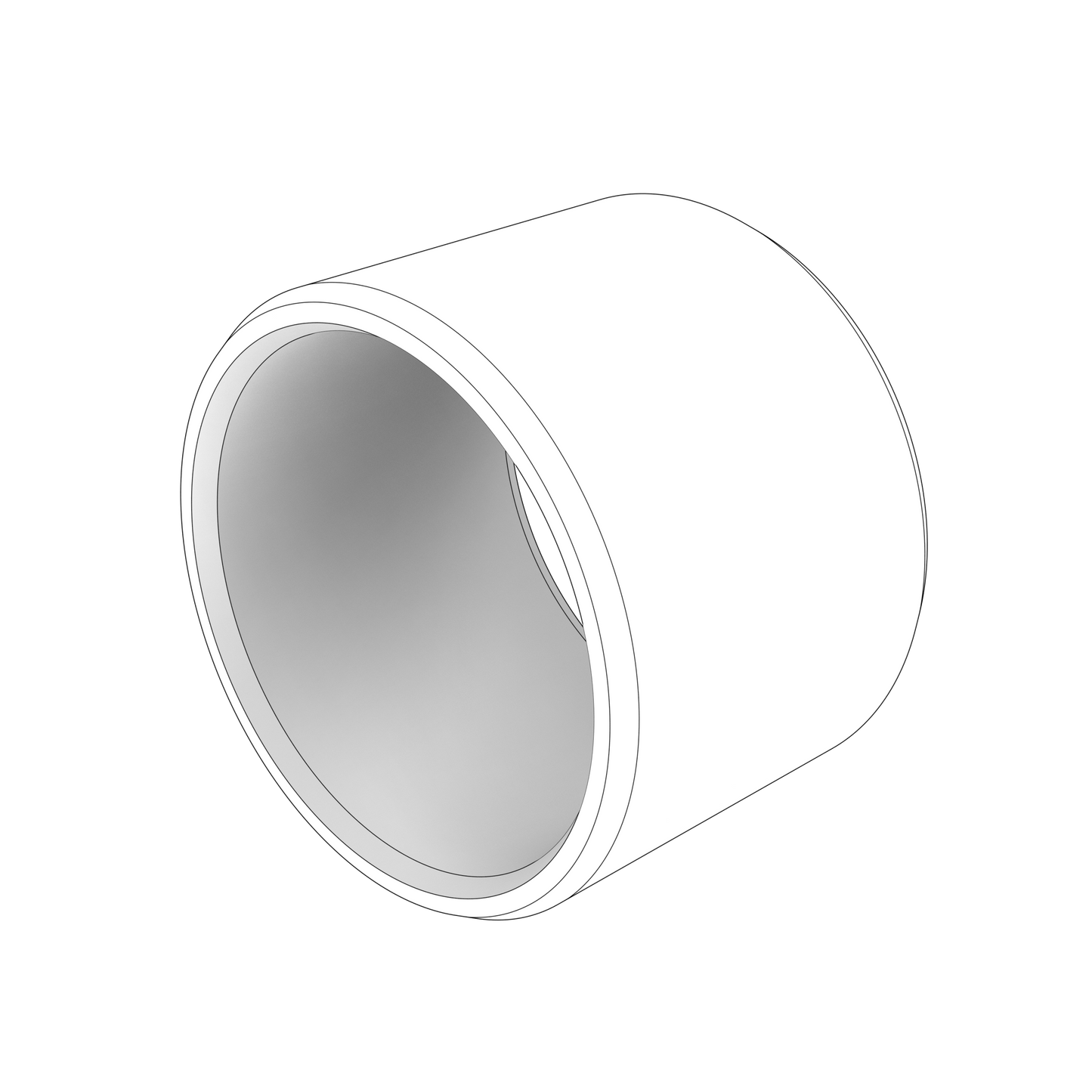

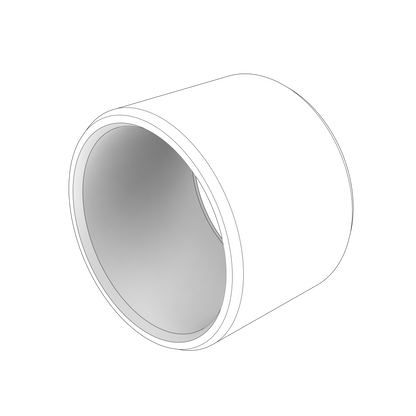

3889691 Bushing | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bushing from the steering group, weighing 0.0113 kg and listed for 44 applications across D series engines and TSK, DPH and DPR series drives. It supersedes part number 3863386.

🚤 Compatibility

• Engine Family: D, TSK, DPH, DPR
• HP Range: 225-400 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.0113 kg
• 44 applications across D engines and TSK, DPH and DPR drives
• Supersedes 3863386

🔌 Function

Provides a low-friction bearing surface at a steering pivot and takes the wear in place of the parts either side of it.

⚠️ Common Signs of Failure

• Play or knocking felt at the helm as the wheel is turned
• Squeaking or grating from the steering pivot
• Bush ovalled, scored or worn thin on removal
• Steering that wanders or feels vague on a straight course

🛠️ Service Notes

• Bushes are cheap and the labour is not, so renew them in matched pairs at the pivot while it is apart
• Check the pin or shaft the bush runs on and renew it too if scored, as a new bush on a worn pin will not last

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 3889691 → Supersedes 3863386

OEM / Related Numbers

• 3863386 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-330A-D, D6-330A-F, D6-370A-F, D6-330A-C, D6-370A-D, D6-330A-E, D6-370A-E, D6-280I-D, D6-310I-D, D6-300A-F, D6-330I-C, D6-330I-D, D6-280A-C, D6-310A-C, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-400A-E, D6-400A-F
• Volvo Penta D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-225I-C, D4-225I-D, D4-225A-C, D4-225A-D, D4-225A-E, D4-225A-F
• Volvo Penta DPR-A, DPR-C, DPR-D, DPR-B
• Volvo Penta DPH-A, DPH-C
• Volvo Penta TSK DPH-A
