395289 Evinrude Johnson Impeller | Genuine OEM BRP Outboard Part

🔧 Product Description

Genuine BRP Evinrude Johnson 20HP-35HP Water Pump Impeller and Key - Part Number: 0395289

A genuine BRP water-pump impeller and drive-key assembly for selected 20HP, 25HP, 28HP, 30HP and 35HP Evinrude and Johnson two-stroke outboards.

The commonly listed number is 395289. The full OEM part number is 0395289.

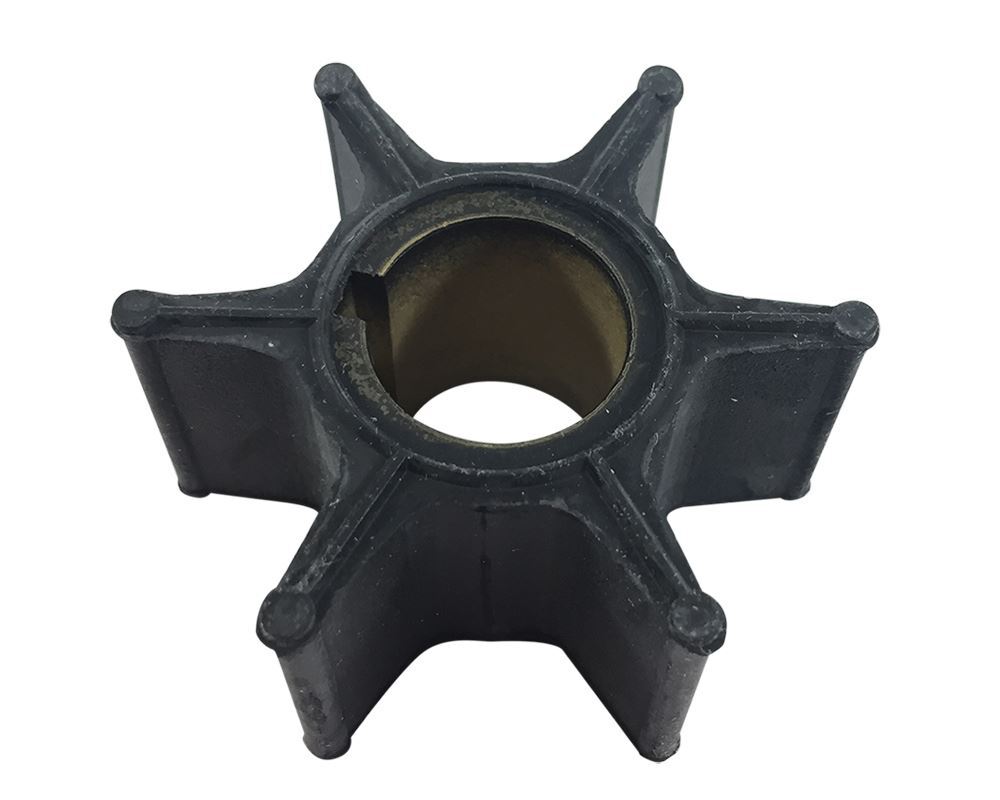

The impeller uses six flexible vanes and is supplied with the corresponding drive key according to genuine BRP packaging.

⚙️ Key Features

• Genuine BRP OEM impeller-and-key assembly
• Correct full OEM number 0395289
• Common reference 395289
• Six-vane flexible impeller
• Approximately two-inch outside diameter
• Suitable for selected twin- and three-cylinder 20HP-35HP engines
• Sierra, GLM, Mallory, Recmar, EMP and CEF equivalents available

🚤 Compatibility

Typically suits selected

• 20HP and 25HP: approximately 1979-2005
• 25HP Commercial: approximately 1998-2001
• 28HP and commercial variants: approximately 1985-1997
• 30HP and 35HP twin-cylinder engines: approximately 1980-2005
• 35HP early applications from approximately 1978
• 25HP and 35HP three-cylinder loop-charged engines: approximately 1995-2001
• Jet-drive units whose pump diagram specifies 0395289

Important fitment note

• Confirm the impeller hub and key arrangement.
• Three-cylinder 25HP and 35HP engines can use different gearcases from twin-cylinder versions.
• The complete water-pump kit may contain housing, cup, plate, gaskets and grommets not included with the individual impeller assembly.

🔌 Function

The impeller circulates raw cooling water through the powerhead.

Installation considerations

• Inspect the impeller key and driveshaft keyway
• Check the pump housing, liner and wear plate
• Replace the complete pump kit if hard parts are worn
• Remove broken vane fragments
• Lubricate the impeller during assembly
• Rotate the driveshaft while lowering the housing
• Seat the water tube correctly
• Verify water flow and engine temperature after installation

⚠️ Common Signs of Failure

• Weak tell-tale stream
• Engine overheats
• Vanes crack or break
• Hub slips
• Drive key is damaged
• Pump cup is scored
• Pump does not prime
• Rubber fragments obstruct the thermostat or cooling passages

🔄 Supersession & Cross Reference

OEM Supersession / Related Chain

• 0395265
• 395265
• 0395289
• 395289
• 0777818
• 777818

Aftermarket / Verified Equivalents

• Sierra: 18-3051
• GLM: 89750
• Mallory: 9-45200
• Mallory: 9-45200-10
• Recmar: REC395289
• EMP: 47-01865
• CEF: 500370C
• AM Marine: AM395289
• Generic 395289 impeller-and-key assemblies

📦 Condition

• Genuine BRP Evinrude Johnson OEM part
• Brand new
• Impeller and drive key supplied according to genuine BRP packaging
• Supplied in genuine or equivalent protective packaging
