396701 Aftermarket Johnson Evinrude OMC Carburettor Kit | Sawley's Select Marine Parts

🔧 Product Description

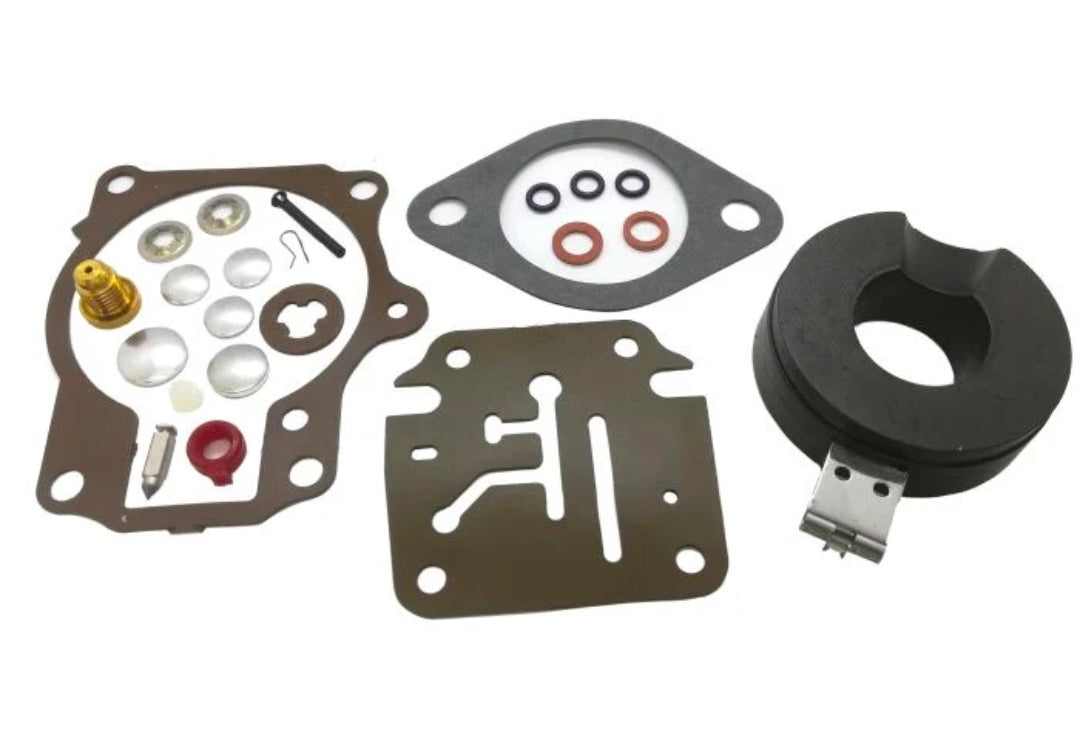

Aftermarket Johnson/Evinrude/OMC carburettor kit with float - Replacement Part Number: 396701

A carburettor repair kit with float for Johnson, Evinrude and OMC two-stroke outboards. It services one carburettor and is used across selected twin- and three-cylinder engines from approximately 18HP through 75HP.

⚙️ Key Features

• Complete service kit with float for one OMC outboard carburettor

• Includes needle, seat, gaskets, seals and float components

• Suitable for selected Johnson and Evinrude 18HP-75HP two-strokes

• Cross-references to Sierra, Mallory, GLM, Recmar and Quicksilver kits

• Not a MerCruiser sterndrive carburettor kit

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 396701 → Replaces or consolidates earlier OMC kit numbers listed below

• 398729 and 777717 are later/related OMC service references

OEM / Related Numbers:

• 0396701

• 396701

• 398729

• 392061

• 384413

• 390134

• 777717

• 383317

• 383892

• 390075

• 390077

• 387856

• 384412

• 388524

Aftermarket / Verified Equivalents:

• Sierra: 18-7222

• Sierra: 18-7042

• Mallory: 9-37105

• Mallory: 9-37107

• GLM: 40560

• Recmar: REC396701

• Quicksilver/Mercury: 879054A1

Included Components:

• Float and float-arm assembly - Component service reference: supplied in Kit 396701

• Float hinge pin - Component service reference: supplied in Kit 396701

• Needle-and-seat assembly - Component service reference: supplied in Kit 396701

• Float-bowl gasket - Component service reference: supplied in Kit 396701

• Carburettor body and mounting gaskets - Component service reference: supplied in Kit 396701

• Welch/core plugs, O-rings, seals and small washers - Component service reference: supplied in Kit 396701

🚤 Compatibility

Commonly used on:

• Johnson, Evinrude and OMC carburetted two-stroke outboards

Typically suits:

• Engine models:

• Selected 18HP, 20HP, 25HP, 30HP and 35HP engines using 396701

• Selected 40HP, 50HP, 55HP, 60HP, 65HP, 70HP and 75HP engines using 396701

• Three-cylinder 50HP-75HP applications may require one kit for each carburettor

• HP Range: Approximately 18HP - 75HP

• Engine Type: Carburetted two-stroke outboard

• Year Range: Approximately 1969 - 2005, depending on model

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the float, inlet valve and sealing components that maintain fuel-bowl level and meter fuel through the carburettor. On multi-carburettor engines, each carburettor should be serviced and synchronised consistently.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
