🔧 Product Description

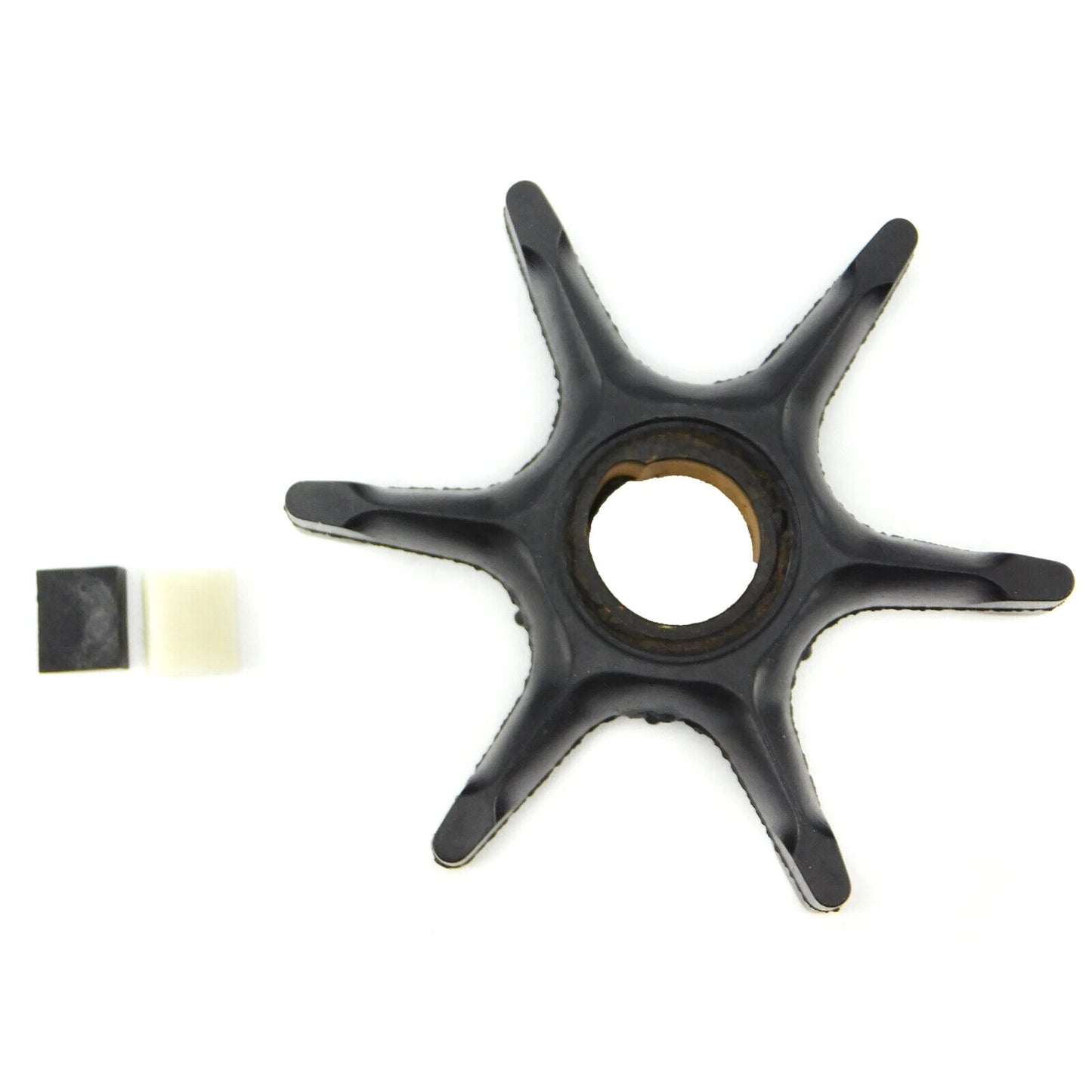

Genuine BRP Evinrude Johnson Water-Pump Impeller and Drive-Key Assembly - Part Number: 0396725

A genuine BRP flexible water-pump impeller for selected Johnson and Evinrude 40HP through 70HP two-stroke outboards, with additional applications determined by the fitted gearcase.

The impeller rotates inside the stainless water-pump cup and draws cooling water through the lower-unit intake. It is normally installed with drive key 0331107, which locks the impeller to the driveshaft. Sierra packages its corresponding replacement with the drive key included.

⚙️ Key Features

  • Genuine BRP six-blade water-pump impeller
  • Correct OEM reference 0396725
  • Flexible neoprene-style impeller construction
  • Driven directly by the vertical driveshaft
  • Sierra, GLM and Mallory replacements available

🚤 Compatibility

Commonly used on

  • Johnson and Evinrude midrange two-stroke outboards
  • Standard mechanical-shift gearcases
  • Water pumps using the large six-blade impeller

Typically suits

  • Engine models:
  • Johnson / Evinrude 40HP
  • Johnson / Evinrude 45HP commercial and jet applications where specified
  • Johnson / Evinrude 50HP
  • Johnson / Evinrude 55HP
  • Johnson / Evinrude 60HP
  • Johnson / Evinrude 65HP
  • Johnson / Evinrude 70HP
  • Selected 75HP engines using the same water-pump housing
  • HP Range: Primarily 40HP - 70HP, with selected 75HP applications
  • Engine Type: Inline two- or three-cylinder two-stroke outboard
  • Year Range: Primarily late-1970s through early-2000s, dependent on gearcase

🔌 Function

The impeller creates the suction and pressure needed to circulate raw cooling water through the powerhead, exhaust passages and thermostat system.

⚠️ Common Signs of Failure

  • Weak or absent tell-tale stream
  • Engine overheats at idle or low speed
  • Impeller blades are cracked or permanently curved
  • Rubber fragments appear in cooling passages
  • Impeller hub spins without turning the blades
  • Drive key is worn, sheared or missing
  • Water-pump pressure falls at higher rpm
  • Impeller has taken a permanent set after storage

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0396725 later OMC / BRP impeller reference
  • 0389557 earlier related impeller reference

OEM / Related Numbers

  • 0396725
  • 396725
  • 0389557
  • 389557
  • Impeller drive key: 0331107
  • Sierra drive key: 18-3299
  • Related three-blade impeller: 0437059

Aftermarket / Verified Equivalents

  • Sierra: 18-3053-1
  • Sierra: 18-3053
  • GLM: 89710
  • Mallory: 9-45207
  • Mallory: 9-45207-10
  • HJB / aftermarket reference: O-117

📦 Condition

  • Genuine BRP part
  • Brand new
  • Supplied in original or equivalent packaging
