🔧 Product Description

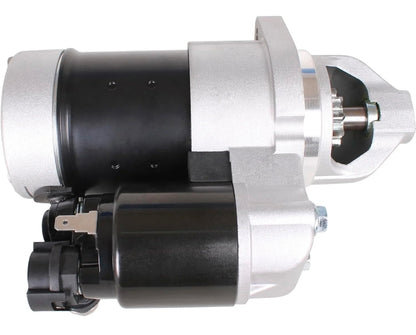

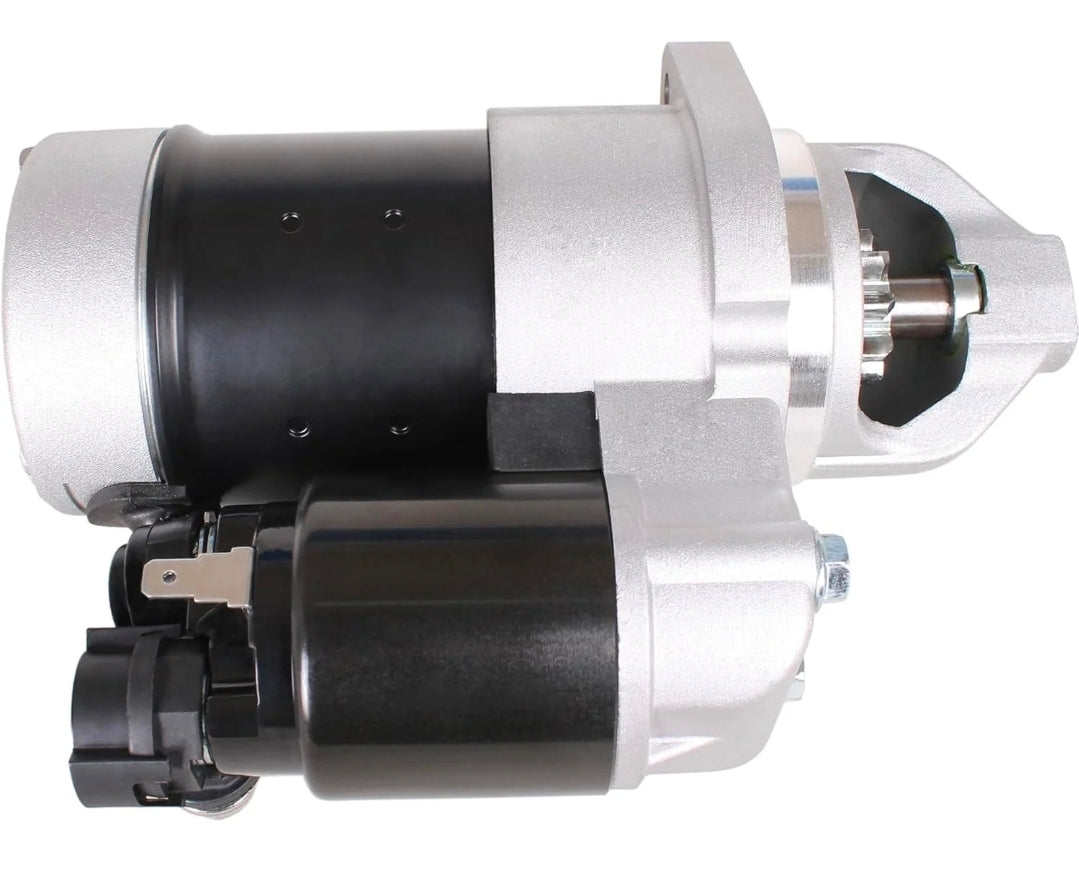

Aftermarket Tohatsu/Nissan Marine starter motor - Part Number: 3KY-76010-0

A 12-volt permanent-magnet gear-reduction starter designed for selected Tohatsu MFS-series EFI four-stroke outboards. The compact 1.4kW unit uses a nine-tooth pinion and counter-clockwise motor rotation when viewed from the drive end. It replaces the original Hitachi S114-966-series starter fitted to the applicable 3KY engine platform.

Correct selection must be based on the complete engine model and the number stamped on the original starter. Later MFS60 and higher-horsepower engines can use different 3UR or model-specific starters even where an aftermarket catalogue groups them under the same horsepower family.

⚙️ Key Features

• 12V permanent-magnet gear-reduction construction

• Approximately 1.4kW output

• Nine-tooth starter pinion

• Counter-clockwise drive rotation

• Direct replacement for the applicable Hitachi S114-966 mounting pattern

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3KY-76010-1 → Supersedes 3KY-76010-0

OEM / Related Numbers:

• Tohatsu: 3KY-76010-0

• Tohatsu: 3KY-76010-1

• Hitachi: S114-966

• Hitachi: S114-966A

Aftermarket / Verified Equivalents:

• Recmar: REC3KY-76010-0

• Aftermarket electrical reference: HIT149

🚤 Compatibility

Commonly used on:

• Tohatsu and Nissan Marine EFI four-stroke outboards using the 3KY starter platform

Typically suits:

• Engine models:

• Tohatsu MFS40A

• Tohatsu MFS50A

• Selected early Tohatsu MFS60A engines fitted with starter 3KY-76010-0 or 3KY-76010-1

• Nissan Marine NSF40A shared-platform applications

• Additional MFS75A, MFS90A, MFS115A and MFS140A applications only where the original motor is positively identified as 3KY-76010-0/-1 or Hitachi S114-966

• HP Range: 40HP-60HP as the core verified fitment; higher-horsepower catalogue applications require starter-number confirmation

• Engine Type: Inline three-cylinder EFI four-stroke outboard

• Year Range: Approximately 2014 onward for the core MFS40A/MFS50A platform

🔌 Function

The starter motor converts battery power into cranking torque, engages the flywheel ring gear through the pinion and rotates the engine until combustion begins.

Common signs of failure:

• Starter does not operate despite a charged battery

• Solenoid clicks but the engine does not crank

• Slow cranking under load

• Intermittent engagement or pinion kick-out

• Excessive starter noise or damaged pinion teeth

📦 Condition

• Brand-new aftermarket starter motor

• Supplied as a complete replacement assembly

• Confirm the original starter number, nine-tooth pinion and mounting dimensions before installation
