4-01070000 Aftermarket Parsun Tilt Lock Clasp Assembly | Sawley's Select Marine Parts

4-01070000 Aftermarket Parsun Tilt Lock Clasp Assembly | Sawley's Select Marine Parts

$43.10 AUD
$43.10 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

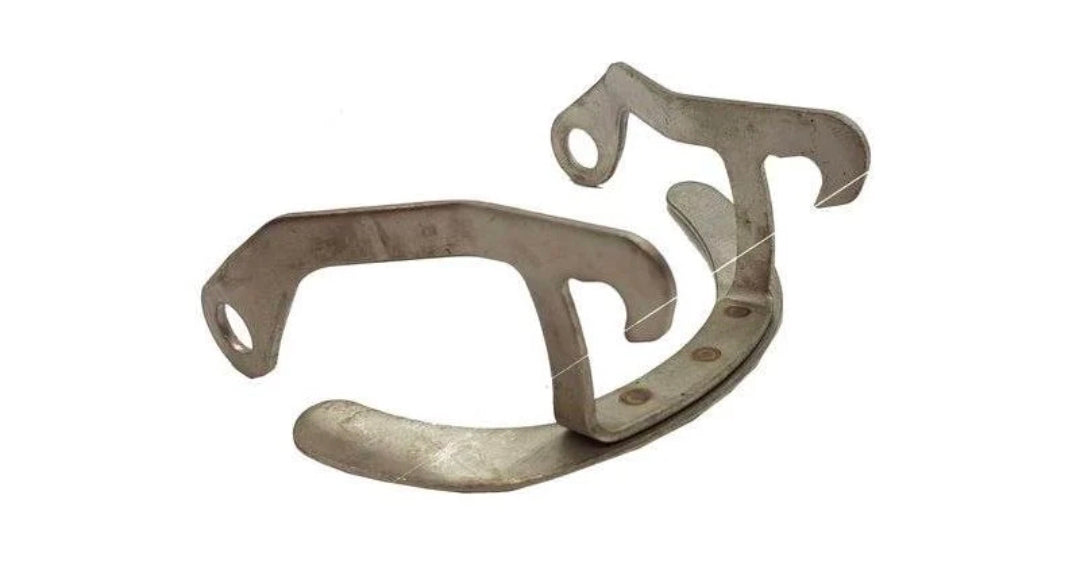

Aftermarket Parsun / Yamaha Small-Outboard Tilt Lock Clasp Assembly - Part Number: F4-01070000


A complete mechanical tilt-lock clasp used to secure the outboard in the selected raised or tilted position on compatible small Parsun, Yamaha and related Mercury/Mariner bracket systems. The confirmed assembly is supplied as one service component rather than a multi-piece repair kit.


⚙️ Key Features


• 1 × complete tilt-lock clasp assembly - Part Number: F4-01070000 / PAF4-01070000

• Cross-references Yamaha 6E0-43614-00 series

• Recmar service reference 91796M

• Mechanical bracket component with no electrical or hydraulic connections

• Direct replacement where the original clasp is bent, seized or worn


🔄 Supersession & Cross Reference


OEM Supersession Chain:


• PAF4-01070000 → Recmar/Parsun packaged reference for F4-01070000

• F4-01070000 → Cross-references Yamaha 6E0-43614-00-5B / -00-00 / -00-4D


OEM / Related Numbers:


• F4-01070000

• 4-01070000

• PAF4-01070000

• 6E0-43614-00-5B

• 6E0-43614-00-00

• 6E0-43614-00-4D

• 91796M


Aftermarket / Verified Equivalents:


• Recmar: 91796M

• Yamaha: 6E0-43614-00-5B / 6E0-43614-00-00 / 6E0-43614-00-4D


🚤 Compatibility


Commonly used on:


• Parsun F4/F5 small-outboard clamp and swivel brackets

• Yamaha small-outboard brackets specifying the 6E0 tilt-lock clasp


Typically suits:


• Engine / drive models:

• Parsun F4 and F5 model families where F4-01070000 is shown

• Yamaha 4-6 HP two-stroke bracket families where 6E0-43614-00 is shown

• Related Mercury/Mariner small-outboard brackets only where 91796M is the direct catalogue reference


• HP Range: Approximately 4-6 HP

• Engine / Drive Type: Manual-tilt small-outboard clamp/swivel bracket

• Year Range: Model-dependent; no universal production-year range is published

• Serial / Identification Range: Match the original clasp profile and F4-01070000 / 6E0-43614-00 number in the bracket diagram.


🔌 Function


Engages the tilt-lock mechanism to hold the outboard securely at the selected raised position during shallow-water operation, servicing or transport preparation.


Common signs of failure or replacement requirement:


• Engine will not remain locked in the raised position

• Clasp is bent, cracked or heavily corroded

• Tilt lock disengages unexpectedly

• Excessive looseness at the lock mechanism

• Clasp is seized and cannot engage or release


📦 Condition


• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
