🔧 Product Description

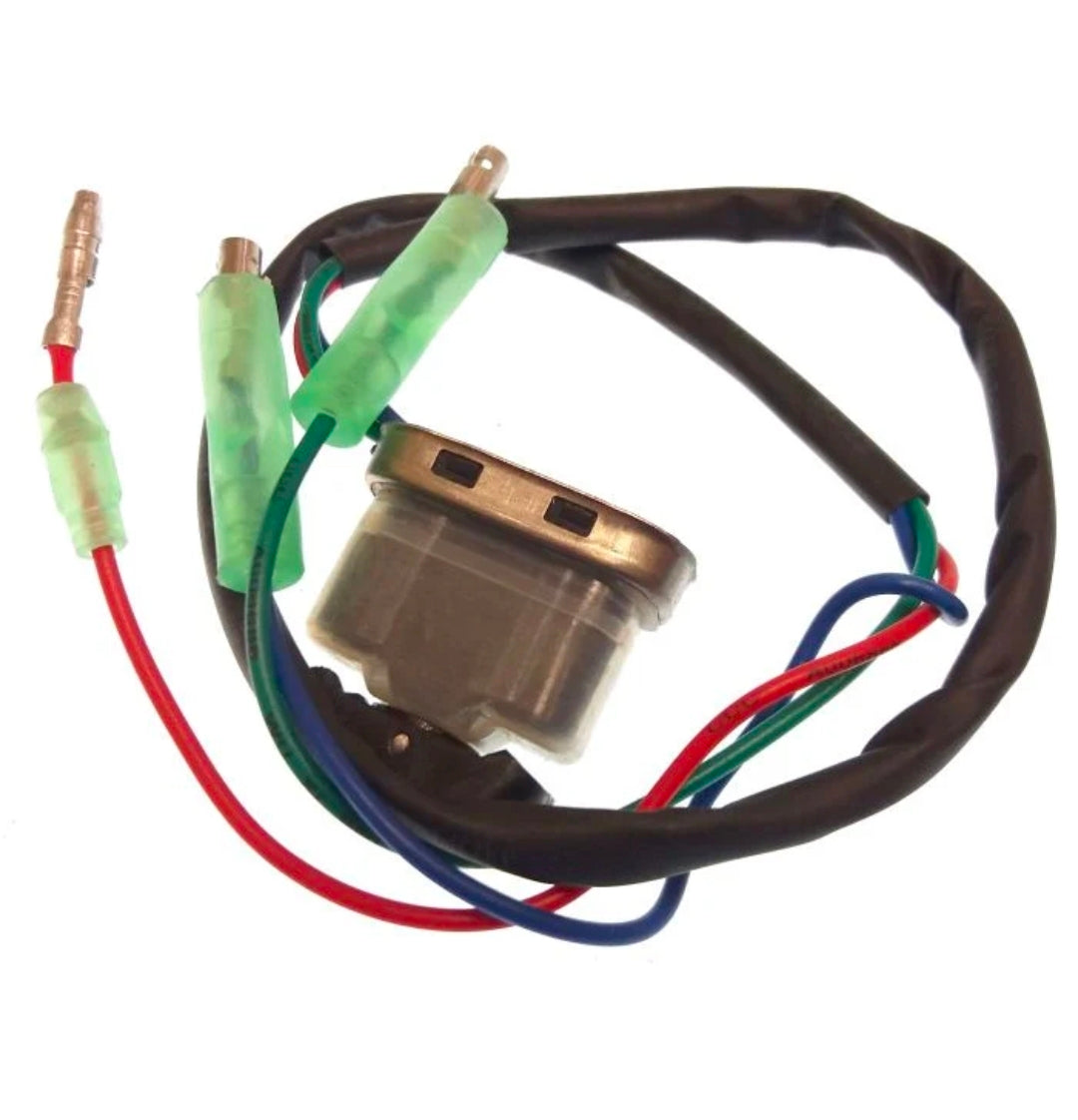

Aftermarket Parsun / Yamaha 703 Remote-Control Trim Switch - Part Number: E4-10040100W

A replacement UP/DOWN trim-switch module fitted to compatible Parsun remote-control handles. It cross-references the Yamaha 703-82563-02 switch family and provides the low-current command used by the power-trim relays or control unit.

⚙️ Key Features

• 1 × complete trim/tilt switch assembly - Part Number: E4-10040100W / PAE4-10040100W

• Yamaha cross-reference 703-82563-02

• Fits the control-handle switch position in compatible Parsun remote-control boxes

• Momentary UP and DOWN operation

• Supplied as a complete sealed switch module; internal contacts are not separately serviced

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• E4-10040100W / PAE4-10040100W → Parsun/Recmar switch reference

• 703-82563-02 → Later Yamaha 703 switch reference associated with 703-82563-00 and 703-82563-01

OEM / Related Numbers:

• E4-10040100W

• 4-10040100W

• PAE4-10040100W

• 703-82563-02

• 703-82563-01

• 703-82563-00

• 703825630200

Aftermarket / Verified Equivalents:

• Recmar: PAE4-10040100W

• Yamaha: 703-82563-02 / 703-82563-01 / 703-82563-00

🚤 Compatibility

Commonly used on:

• Parsun remote-control boxes for power-trim outboards

• Yamaha 703-style control boxes using the matching switch

Typically suits:

• Engine / drive models:

• Parsun F30 and F40 remote-control installations

• Parsun F50 and F60 remote-control installations

• Other engines using a Yamaha 703-compatible control box only where the original switch is 703-82563-02

• HP Range: Approximately 30-60 HP for the confirmed Parsun applications

• Engine / Drive Type: Momentary remote-control power-trim switch assembly

• Year Range: Model/control-box dependent; no universal year range is published

• Serial / Identification Range: Confirm the remote-control-box type, connector and E4-10040100W / 703-82563-02 number rather than relying on engine horsepower alone.

🔌 Function

Sends UP and DOWN commands from the control handle to the trim relay/control circuit, allowing the operator to adjust engine angle without leaving the helm.

Common signs of failure or replacement requirement:

• No trim response from the control handle

• Only UP or DOWN works

• Intermittent operation when the button is moved

• Cracked switch cap or water entry

• Corroded pins or open-circuit switch contacts

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
