40-10000000 Aftermarket Parsun Power Trim System F20, F25, E40, 40X, 30D | Sawley's Select Marine Parts

🔧 Product Description

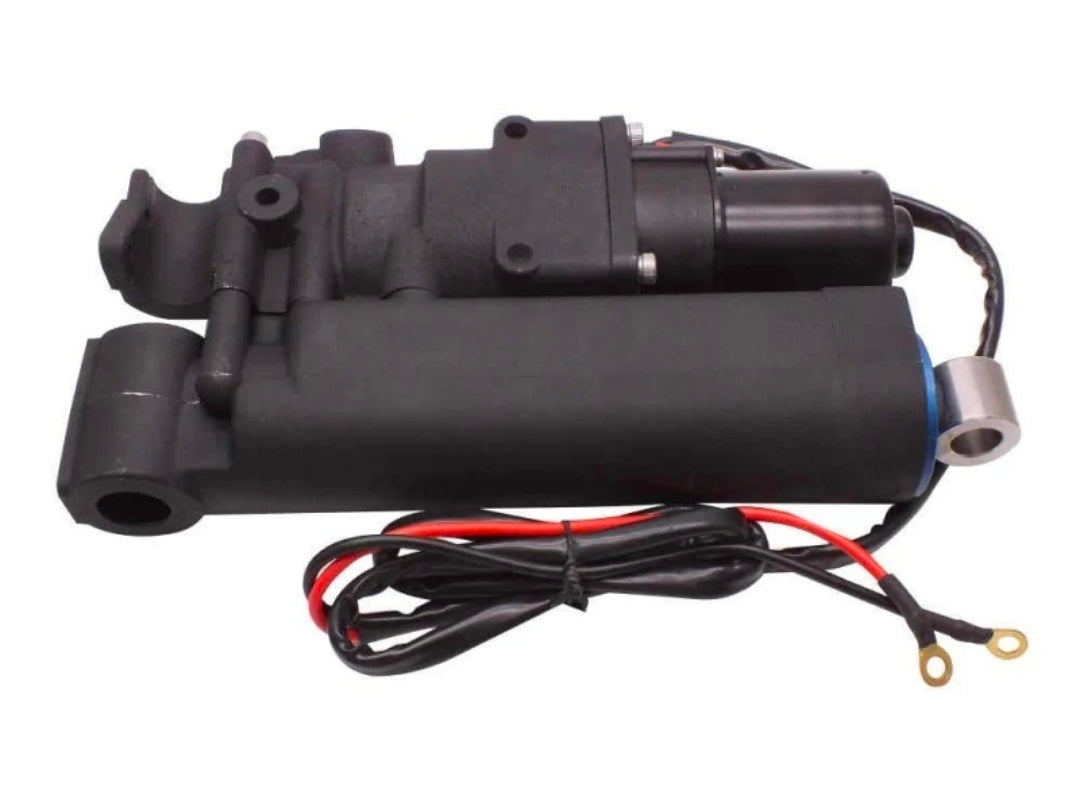

Aftermarket Parsun 20-40 HP Complete Hydraulic Power Trim & Tilt Assembly - Part Number: T40-10000000

A complete hydraulic trim-and-tilt system for compatible Parsun 20-40 HP outboards. It combines the electric motor, gear pump, hydraulic housing, locating cylinder, tilt shaft, position cylinder, free-piston system, control valves, seals and mounting hardware into one service assembly.

⚙️ Key Features

• Complete hydraulic tilt assembly - Part Number: T40-10000000 / PAT40-10000000

• Cross-references the Yamaha 65W-43800 power-trim family

• Confirmed exploded service contents:

• T40-10010000 - Locating cylinder assembly

• T40-10030000 - Locating cylinder piston assembly

• T40-10030202 - Oil seal, 15 × 23 × 5

• T40-10030200 - Piston nut

• JISB2407P15T2 - P15T2 circlip

• JISB2401P15 - O-ring, 14.8 × 2.4

• JASOF40424-045 - O-ring, 44.7 × 2.4

• T40-10030100 - Tilt assembly shaft

• T40-10030301 - Piston

• GB/T879.4-1.5x12 - Pin, 1.5 × 12

• T85-06020202 - 4 mm ball; Yamaha 6L5-45533-00-20

• T85-06020005 - Spring seat

• T40-10030001 - Spring

• T40-10030002 - Washer

• T40-10030003 - Washer

• GB/T10.2-M10x1.25x40 - M10 × 1.25 × 40 screw

• JISB2401P39 - O-ring, 38.7 × 3.5

• JISB2407P39T2 - P39T2 backup ring

• T40-10010100 - Free piston sub-assembly

• T40-10010101 - Free piston

• T40-10010102 - Spring

• T40-10010104 - Seal

• T40-10010103 - Bolt bush

• T40-10010105 - Piston bush

• GB/T70.2-M4x35 - M4 × 35 screw

• F15-07010004 - 1/8 in cylinder block; Mercury 479452

• T40-10000002 - Position cylinder

• JISFG11.2 - O-ring, 10.7 × 1.5

• T40-10000001 - 1/8 in ball; Yamaha 93440-08819

• T85-06020014 - Piston spring

• T85-06010201 - Filter; Yamaha 6H1-43816-00

• JISFG6 - O-ring, 5.5 × 1.5

• T40-10020500 - Tilt motor

• GB/T70.1-M6x20 - M6 × 20 socket-head screw

• GB/T3452.H48x2 - O-ring, 48 × 2

• T40-10020004 - Spring

• T40-10020003 - Motor link

• GB/T70.1-M4x25 - M4 × 25 socket-head screw; Yamaha 91318-04025

• T85-06010705 - Roller, 4 × 21.8

• T40-10020400 - Gear-pump assembly

• JISFG5 - O-ring, 4.5 × 1.5

• T40-10020002 - Spring

• T85-06010205 - Valve support pin; Yamaha 6H1-43844-10

• T85-06010207 - Main-valve seal

• T40-10020005 - Pump filter; two required in the complete assembly

• JISFG4 - O-ring, 3.5 × 1.5

• T40-10020001 - Hydraulic housing

• T40-10020301 - Valve support pin

• JISB2401PJ - O-ring, 2.8 × 1.9

• JISB2401P8 - O-ring, 7.8 × 1.9

• T40-10020305 - Valve-lock screw

• JISB2401P9 - O-ring, 8.8 × 1.9

• T40-10020302 - Relief-valve seat

• T40-10020303 - Spring seat

• T40-10020304 - Up-relief spring

• JISB2401P11 - O-ring, 10.8 × 2.4

• T85-06010503 - Valve sub-assembly; Yamaha 67F-43802-00

• JISB2401P12.5 - O-ring, 12 × 1.5

• JISFG12 - O-ring, 11.5 × 1.5

• T85-06010501 - Shuttle piston; Yamaha 6H1-43841-11

• T85-06010009 - Screw; Yamaha 6H1-43829-00

• T85-06010601 - Seal washer; Yamaha 6H1-43847-00

• T40-10020201 - Spring seat

• T40-10020202 - Spring

• JISFG10 - O-ring, 9.5 × 1.5

• T85-06010606 - Manual-release screw; Yamaha 6H1-43845-00

• JASO-F404-24-018 - O-ring, 17.5 × 2.65

• GB/1893.1-20 - 20 mm snap ring/circlip

• GB/T70.1-M6x75 - M6 × 75 socket-head screw

• T85-06010002 - 1/16 in cylinder block

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• PAT40-10000000 → Recmar/Parsun packaged reference for T40-10000000

• T40-10000000 → Cross-references Yamaha 65W-43800-00-4D through 65W-43800-24-8D depending on model/revision

OEM / Related Numbers:

• T40-10000000

• 40-10000000

• PAT40-10000000

• IC-T40-10000000

• RM-PAT40-10000000

• 65W-43800-00-4D

• 65W-43800-01-4D

• 65W-43800-02-4D

• 65W-43800-03-4D

• 65W-43800-20-4D

• 65W-43800-21-4D

• 65W-43800-22-8D

• 65W-43800-23-8D

• 65W-43800-24-8D

Aftermarket / Verified Equivalents:

• Recmar: PAT40-10000000

• Yamaha: 65W-43800-00-4D / -01-4D / -02-4D / -03-4D / -20-4D / -21-4D / -22-8D / -23-8D / -24-8D

• Aftermarket catalogue references: IC-T40-10000000 / RM-PAT40-10000000

🚤 Compatibility

Commonly used on:

• Parsun mid-range outboards fitted with the T40 hydraulic trim system

Typically suits:

• Engine / drive models:

• F20 and F25 applications whose bracket diagram specifies T40-10000000

• F30 / 30D model families

• F40, E40 and 40X model families

• Related Yamaha-platform applications only where the complete assembly cross-references the listed 65W-43800 number

• HP Range: 20-40 HP

• Engine / Drive Type: Complete 12 V electro-hydraulic outboard power-trim and tilt assembly

• Year Range: Model-dependent; no universal production-year range is published

• Serial / Identification Range: Confirm the complete Parsun model code, clamp-bracket design and T40/PAT40 assembly number. Yamaha cross-reference suffixes vary by bracket and finish revision.

🔌 Function

Raises, lowers and trims the outboard by converting electric-motor rotation into hydraulic pressure and controlled linear movement of the tilt/locating cylinder system.

Common signs of failure or replacement requirement:

• Trim motor runs but the engine does not move

• Engine drifts down or cannot hold trim

• Slow, jerky or one-direction operation

• Hydraulic oil leakage, aeration or repeated fluid loss

• Seized motor, damaged pump valves or scored cylinder components

📦 Condition

• Brand-new aftermarket replacement kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
