40-10010000 Aftermarket Parsun Locating Cylinder Assembly | Sawley's Select Marine Parts

🔧 Product Description

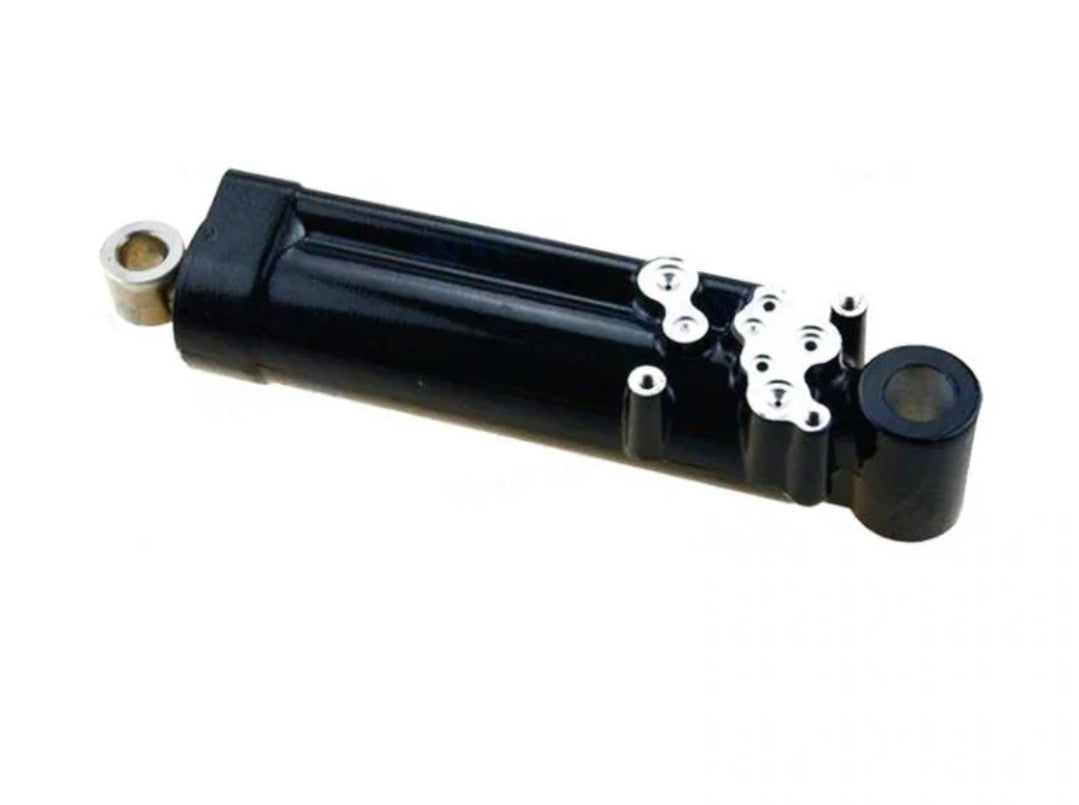

Aftermarket Parsun F30/F40 Locating Cylinder Assembly - Part Number: T40-10010000

A complete locating/tilt cylinder assembly for the Parsun T40 hydraulic trim unit. It contains the main shaft and piston system, free-piston group, seals, springs and retaining hardware responsible for converting hydraulic pressure into controlled engine movement.

⚙️ Key Features

• Complete locating cylinder assembly - Part Number: T40-10010000 / PAT40-10010000

• Included service components:

• T40-10030000 - Locating cylinder piston assembly

• T40-10030202 - Oil seal, 15 × 23 × 5

• T40-10030200 - Piston nut

• JISB2407P15T2 - P15T2 circlip

• JISB2401P15 - O-ring, 14.8 × 2.4

• JASOF40424-045 - O-ring, 44.7 × 2.4

• T40-10030100 - Tilt assembly shaft

• T40-10030301 - Piston

• GB/T879.4-1.5x12 - 1.5 × 12 pin

• T85-06020202 - 4 mm ball / Yamaha 6L5-45533-00-20

• T85-06020005 - Spring seat

• T40-10030001 - Spring

• T40-10030002 - Washer

• T40-10030003 - Washer

• GB/T10.2-M10x1.25x40 - M10 × 1.25 × 40 screw

• JISB2401P39 - O-ring, 38.7 × 3.5

• JISB2407P39T2 - P39T2 backup ring

• T40-10010100 - Free piston sub-assembly

• T40-10010101 - Free piston

• T40-10010102 - Spring

• T40-10010104 - Seal

• T40-10010103 - Bolt bush

• T40-10010105 - Piston bush

• GB/T70.2-M4x35 - M4 × 35 screw

• F15-07010004 - 1/8 in cylinder block / Mercury 479452

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• PAT40-10010000 → Recmar/Parsun packaged reference for T40-10010000

• T40-10010000 → Major sub-assembly of complete system T40-10000000

OEM / Related Numbers:

• T40-10010000

• 40-10010000

• PAT40-10010000

• T40-10000000

• T40-10030000

• T40-10030100

• T40-10010100

Aftermarket / Verified Equivalents:

• Recmar: PAT40-10010000

• No confirmed other-brand complete locating-cylinder equivalent

🚤 Compatibility

Commonly used on:

• Parsun T40-series hydraulic trim and tilt systems

Typically suits:

• Engine / drive models:

• Parsun F30

• Parsun F40

• HP Range: 30-40 HP

• Engine / Drive Type: Complete hydraulic locating/tilt cylinder sub-assembly

• Year Range: Model-dependent; no universal year range is published

• Serial / Identification Range: Confirm T40-10010000 in the model-specific F30/F40 power-trim diagram.

🔌 Function

Transforms hydraulic pressure into the controlled linear force used to locate, trim and tilt the outboard while maintaining position under load.

Common signs of failure or replacement requirement:

• Engine will not hold trim angle

• External oil leakage at the shaft or cylinder

• Jerky or uneven movement

• Internal bypass and weak lifting force

• Bent shaft, scored bore or damaged piston components

📦 Condition

• Brand-new aftermarket replacement kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
