🔧 Product Description

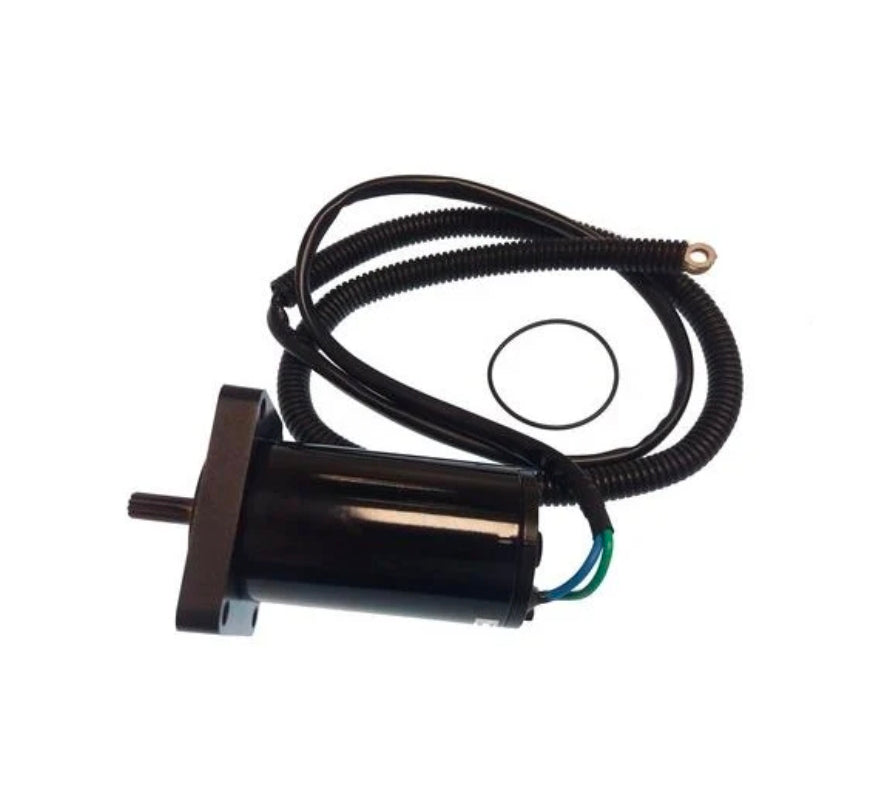

Aftermarket Parsun F30/F40 Electric Trim Motor - Part Number: T40-10020500

A complete reversible electric motor for the Parsun T40 hydraulic power-trim assembly. It mounts to housing T40-10020001 and drives gear pump T40-10020400 through motor link T40-10020003.

⚙️ Key Features

• Complete trim motor - Part Number: T40-10020500 / PAT40-10020500

• Reversible motor for UP and DOWN hydraulic operation

• Mounts to T40-10020001 housing

• Drives T40-10020400 gear pump through T40-10020003 link

• Supplied as a complete motor; internal brushes and armature are not separately identified in the confirmed exploded catalogue

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• PAT40-10020500 → Recmar/Parsun packaged reference for T40-10020500

• No cross-brand motor supersession has been confirmed

OEM / Related Numbers:

• T40-10020500

• 40-10020500

• PAT40-10020500

• T40-10020001

• T40-10020400

• T40-10020003

• GB/T3452.H48x2

Aftermarket / Verified Equivalents:

• Recmar: PAT40-10020500

• No confirmed other-brand direct motor equivalent

🚤 Compatibility

Commonly used on:

• Parsun T40 electro-hydraulic power-trim systems

Typically suits:

• Engine / drive models:

• Parsun F30

• Parsun F40

• HP Range: 30-40 HP

• Engine / Drive Type: Reversible electric hydraulic-pump motor

• Year Range: Model-dependent; no universal year range is published

• Serial / Identification Range: Confirm motor voltage, mounting pattern and T40-10020500 number in the engine parts catalogue.

🔌 Function

Rotates the gear pump in either direction to create hydraulic pressure for raising or lowering the outboard.

Common signs of failure or replacement requirement:

• Relay operates but motor does not turn

• Motor runs slowly or intermittently

• Excessive current draw or overheating

• Water entry, corrosion or burnt smell

• Motor turns but pump does not operate because the coupling is damaged

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
