40-10030100 Aftermarket Parsun Tilt Shaft Assembly | Sawley's Select Marine Parts

🔧 Product Description

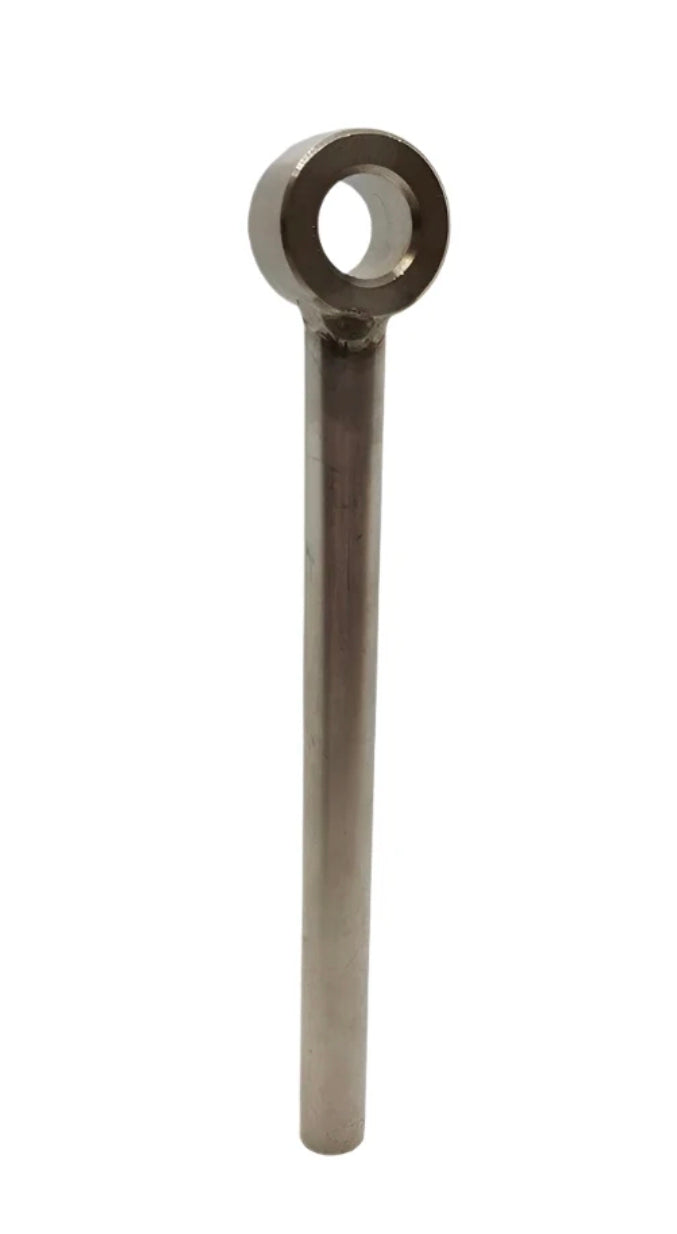

Aftermarket Parsun F30/F40 Tilt Shaft Assembly - Part Number: T40-10030100

The main hydraulic ram/shaft assembly used in the Parsun T40 locating-cylinder piston group. It carries the piston and internal spring/ball hardware and transmits hydraulic force to the outboard mounting structure.

⚙️ Key Features

• Main tilt shaft - Part Number: T40-10030100 / PAT40-10030100

• Associated shaft-assembly components:

• T40-10030301 - Piston

• GB/T879.4-1.5x12 - Pin, 1.5 × 12

• T85-06020202 - 4 mm ball / Yamaha 6L5-45533-00-20

• T85-06020005 - Spring seat

• T40-10030001 - Spring

• T40-10030002 - Washer

• T40-10030003 - Washer

• GB/T10.2-M10x1.25x40 - M10 × 1.25 × 40 retaining screw

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• PAT40-10030100 → Recmar/Parsun packaged reference for T40-10030100

• T40-10030100 → Main shaft within piston assembly T40-10030000

OEM / Related Numbers:

• T40-10030100

• 40-10030100

• PAT40-10030100

• T40-10030000

• T40-10030301

• 6L5-45533-00-20

Aftermarket / Verified Equivalents:

• Recmar: PAT40-10030100

• Yamaha internal ball reference: 6L5-45533-00-20

• No confirmed other-brand complete shaft equivalent

🚤 Compatibility

Commonly used on:

• Parsun T40 locating-cylinder piston systems

Typically suits:

• Engine / drive models:

• Parsun F30

• Parsun F40

• HP Range: 30-40 HP

• Engine / Drive Type: Hydraulic trim/tilt ram shaft assembly

• Year Range: Model-dependent; no universal year range is published

• Serial / Identification Range: Confirm shaft diameter, stroke and T40-10030100 number before fitting.

🔌 Function

Transmits force from the hydraulic piston to the outboard bracket, producing controlled trim and tilt movement.

Common signs of failure or replacement requirement:

• Bent or scored shaft

• Hydraulic leakage at the shaft seal

• Corrosion or pitting in the exposed stroke area

• Loose or damaged piston attachment

• Binding or uneven engine movement

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
