402241 Sarca Stainless Steel Bowsprit | Marine Anchoring Solutions

🔧 Product Description

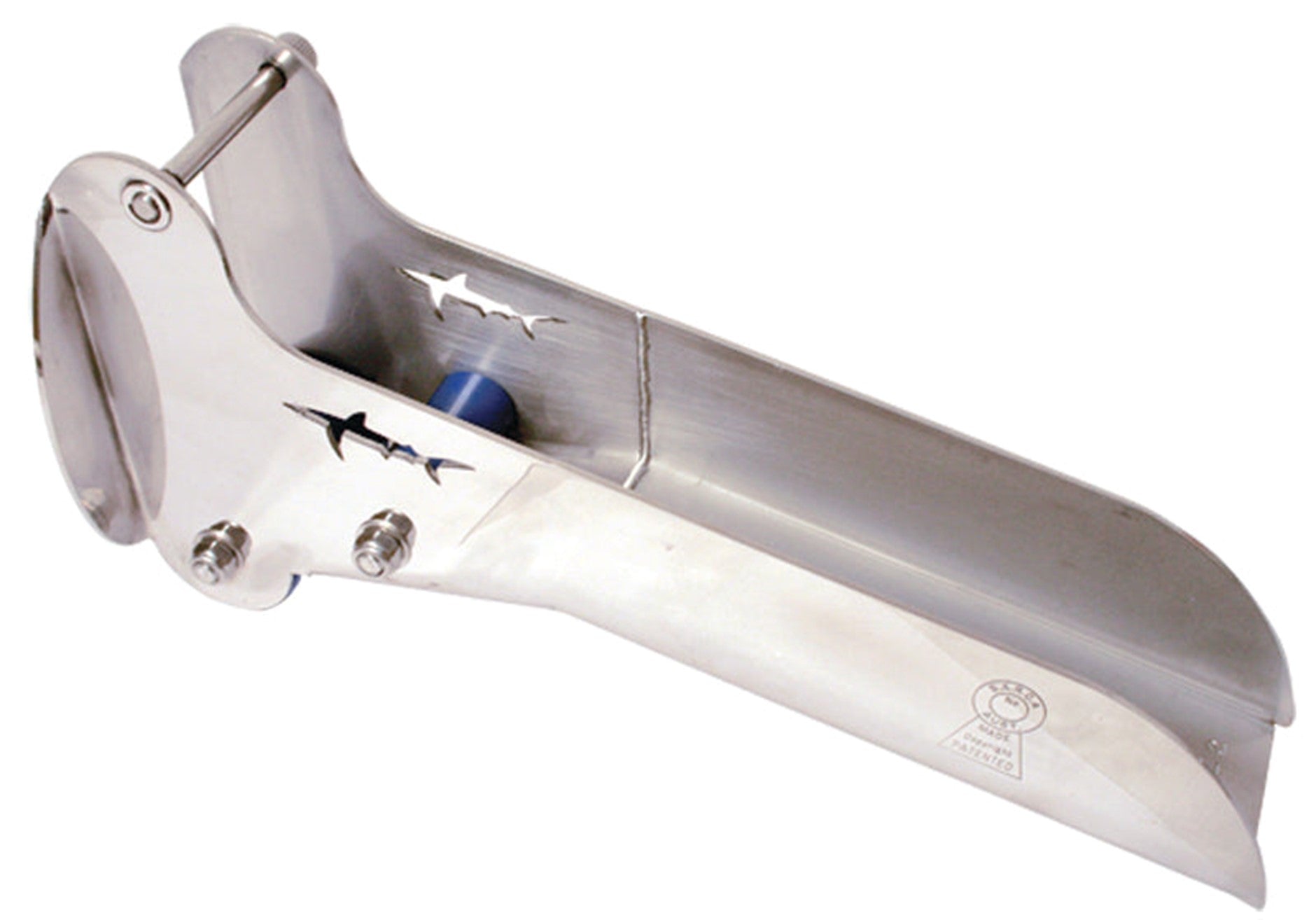

SARCA A1-2 Self-Launching 316 Stainless Steel Bowsprit - Part Number: 402241

A purpose-designed self-launching bowsprit for Super SARCA sizes 0.5 through No. 2 and anchors up to approximately 10kg. The articulated head, dual rollers and heavy retaining screw support automatic launch, retrieval and secure stowage at the bow.

⚙️ Key Features

• Manufactured from 316 stainless steel

• Self-launching articulated head

• Dual replaceable rollers support the shank and anchor body

• Helps self-right the anchor during retrieval

• Heavy thumb screw secures the anchor when stowed

📏 Specifications

• Model/application: SARCA A1-2

• Anchor capacity: Up to approximately 10kg

• SARCA size range: 0.5 through No. 2

• Mounting-base length: Approximately 210mm

• Self-launch head length: Approximately 100mm

• Side height: Approximately 58mm

• Head depth: Approximately 160mm

• Outside width: Approximately 70mm

• Related captive nut: 402267

🔄 Cross Reference & Comparable Options

• Larger same-family option: SARCA W3-4 bowsprit, part 402243

• Not directly interchangeable with generic fixed bow rollers without checking deck footprint and anchor geometry

🛠️ Installation & Use

• Position so the anchor clears the stem, hull and pulpit throughout launch and retrieval

• Through-bolt to a reinforced bow structure with backing plates or large washers

• Confirm the anchor shank, hoop and fluke sit securely when fully retrieved

• Align the bowsprit with the windlass or rope lead to avoid side loading

• Use an independent anchor safety restraint while underway

📦 Condition

• Brand new

• Supplied as one SARCA A1-2 stainless-steel bowsprit assembly

• Supplied in original or equivalent packaging
