🔧 Product Description

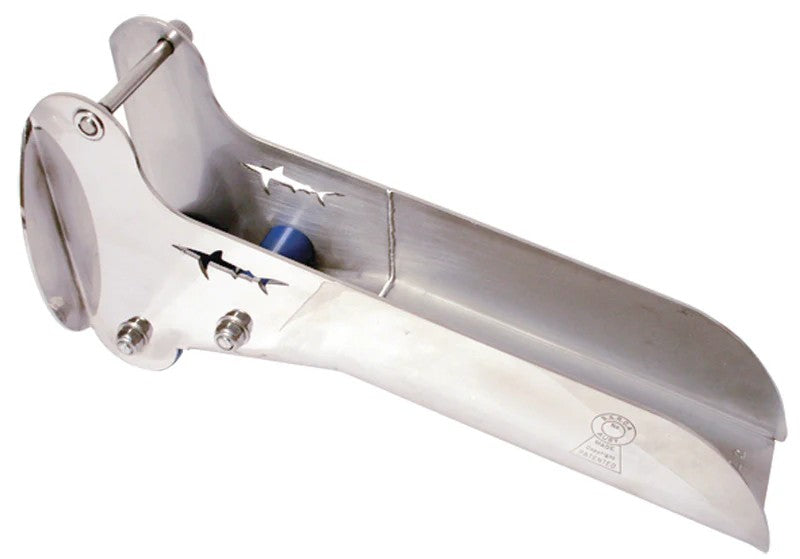

SARCA W3-4 Self-Launching 316 Stainless Steel Bowsprit - Part Number: 402243
A heavy-duty self-launching bowsprit for Super SARCA No. 3 and No. 4 anchors and other compatible anchors up to approximately 17kg. Its articulated dual-roller head supports automatic deployment, retrieval and anchor alignment on medium recreational vessels.
⚙️ Key Features
- 316 stainless-steel marine construction
- Self-launching articulated forward head
- Dual replaceable rollers reduce shank and chain friction
- Helps self-right the anchor during powered retrieval
- Heavy retaining screw secures the anchor for travel
📏 Specifications
- Model/application: SARCA W3-4
- Anchor capacity: Up to approximately 17kg
- SARCA size range: No. 3 through No. 4
- Mounting-base length: Approximately 225mm
- Self-launch head length: Approximately 110mm
- Side height: Approximately 60mm
- Head depth: Approximately 165mm
- Outside width: Approximately 75mm
- Related captive nut: 402269
🔄 Cross Reference & Comparable Options
- Smaller same-family option: SARCA A1-2 bowsprit, part 402241
- Designed to complement the Super SARCA No. 3 anchor, part 103126
🛠️ Installation & Use
- Confirm bow clearance, deck footprint, pulpit clearance and anchor-locking position
- Through-bolt to a reinforced bow with a suitable backing structure
- Align the rollers with the windlass gypsy and chain lead
- Check that the anchor cannot strike the hull during launch or retrieval
- Fit an independent safety pin, strap or chain for travel
📦 Condition
- Brand new
- Supplied as one SARCA W3-4 stainless-steel bowsprit assembly
- Supplied in original or equivalent packaging
