4060-5-1247A Four Winns (Faria) Fuel Gauge | Genuine Used Part

🔧 Product Description

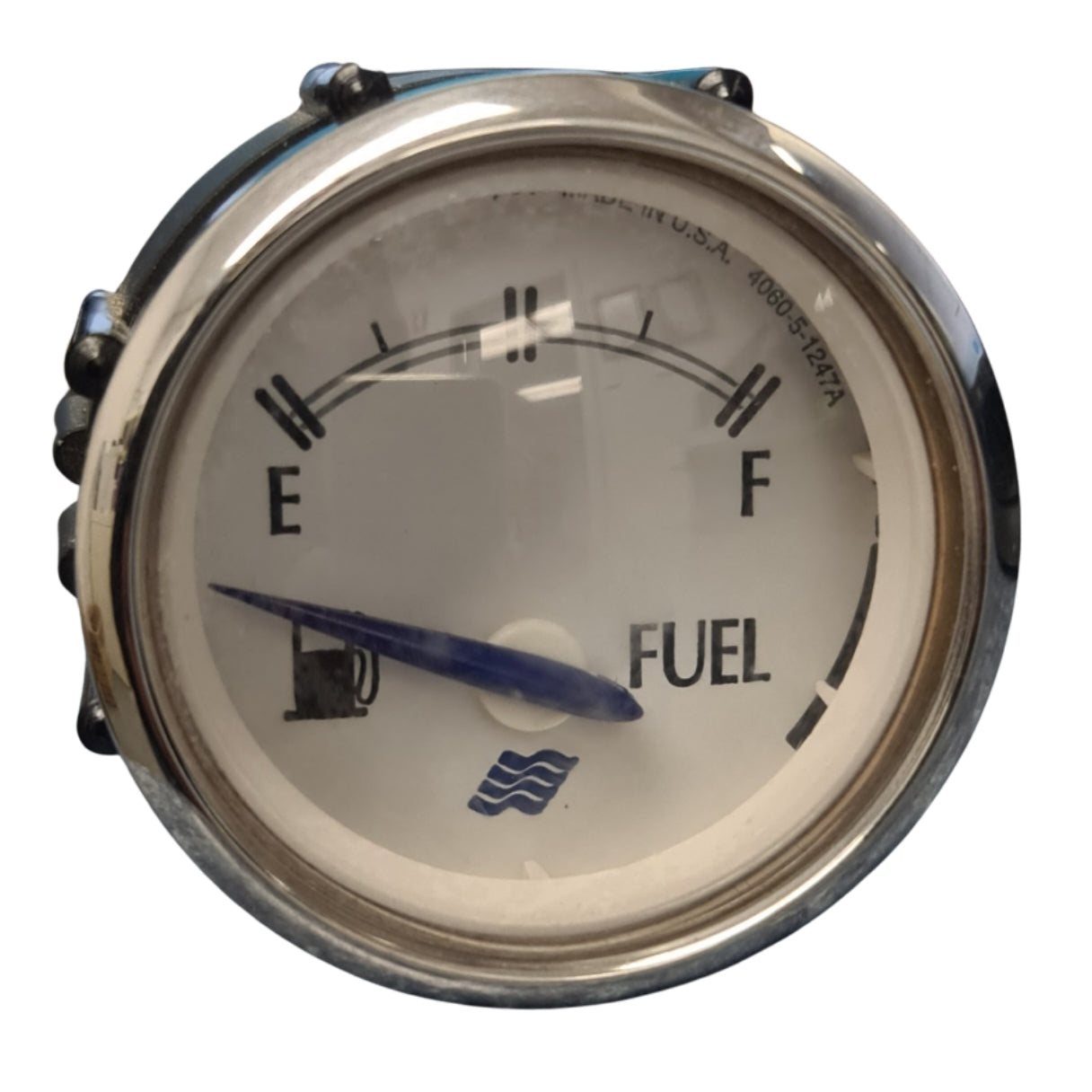

Genuine Four Winns Faria Analogue Fuel Gauge - Factory Number: 4060-5-1247A

A genuine used Faria fuel-level gauge supplied for a Four Winns boat instrument panel.

The gauge displays tank level from empty to full using a conventional resistance-type marine fuel sender. The factory number appears to be a Four Winns or Faria production identifier rather than a current retail part number, so the face design, dash opening and sender calibration must be checked before installation.

⚙️ Key Features

• Genuine used Four Winns-specified Faria gauge
• Factory identifier 4060-5-1247A
• Analogue empty-to-full display
• Approximately two-inch-class instrument
• Illuminated marine construction

🚤 Compatibility

Commonly used on

• Four Winns petrol-boat instrument panels
• Marine fuel tanks using a conventional resistance sender

Typically suits

• 12-volt marine electrical systems
• Approximately two-inch dashboard openings
• Common US marine 240-33-ohm fuel senders
• Sender calibration must be confirmed from the gauge and tank sender before installation

🔌 Function

The tank sender changes resistance with fuel level, and the gauge converts that signal into an empty-to-full needle position.

⚠️ Common Signs of Failure

• Gauge remains on empty or full
• Reading is inaccurate
• Needle moves erratically as the boat moves
• Sender and gauge resistance ranges do not match
• Backlighting has failed
• Terminals are corroded
• Gauge responds when the harness is moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

• No confirmed direct supersession for factory code 4060-5-1247A
• Four Winns used several Faria gauge styles with the same fuel-level function

OEM / Related Numbers

• 4060-5-1247A
• Faria Four Winns fuel gauge
• Faria GP2059A related Four Winns Professional Gray fuel gauge
• Related tank sender, mounting bracket and illumination socket

Aftermarket / Verified Equivalents

• Faria GP2059A - related Four Winns fuel gauge where styling and sender range match
• Faria two-inch 240-33-ohm marine fuel gauge
• Sierra: 57902P - Amega fuel gauge
• VDO: 301-15278 - marine fuel-level gauge
• KUS 52mm fuel gauge for a 240-33-ohm sender

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
