408606 Red Bow Roller 4" | Marine Anchoring Solutions

🔧 Product Description

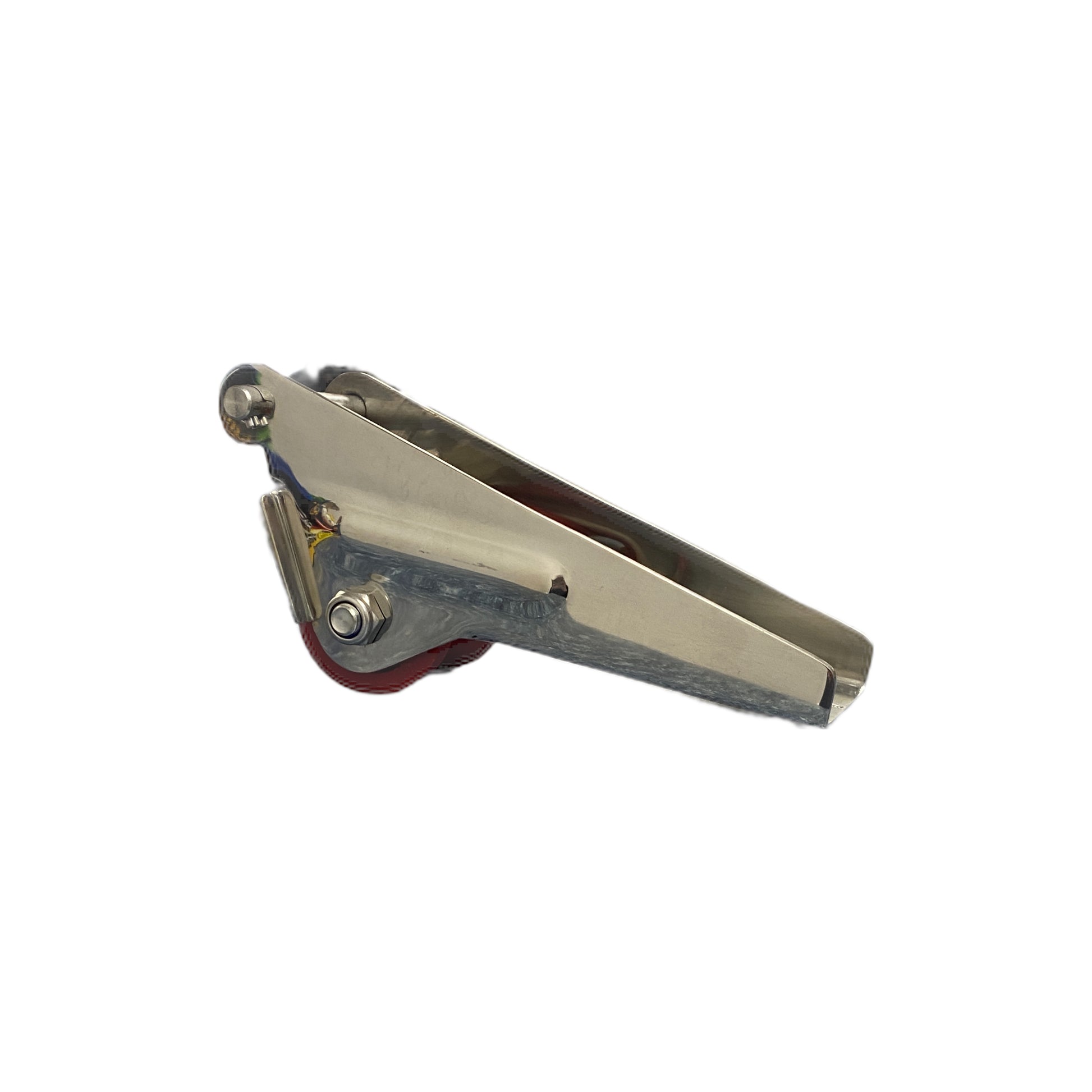

4" Stainless Steel Bow Roller with Red Roller - Part Number: 408606

A compact 304 stainless-steel bow roller with a red replaceable roller for guiding anchor rope, chain and the anchor shank over the bow. The 100mm mounting base suits smaller foredecks and can accept compatible standard or narrow-high nose sections.

⚙️ Key Features

• 304 stainless-steel frame

• Red replaceable roller

• Compact 4-inch-class mounting footprint

• Compatible with optional stainless nose sections

• Supports smoother manual or windlass-assisted retrieval

📏 Specifications

• Mounting-base length: Approximately 100mm

• Mounting-base width: Approximately 50mm

• Internal frame width: Approximately 52mm

• Front opening: Approximately 50mm

• Replacement roller: 761106

• Replacement pin kit: 402226

🔄 Cross Reference & Comparable Options

• Longer black-roller option: 408609

• Compatible standard nose section: 408614

• Compatible narrow-high nose section: 408624

🛠️ Installation & Use

• Mount on the vessel centreline where the anchor clears the hull

• Through-bolt to a reinforced bow using corrosion-compatible hardware

• Align the roller with the windlass, chain stopper and anchor locker

• Confirm rope, chain and shackle pass through the 50mm opening

• Inspect the roller and pin for wear, seizure and flat spots

📦 Condition

• Brand new

• Supplied as one 4" stainless-steel bow roller

• Supplied in original or equivalent packaging
