408609 Black Bow Roller 6" | Marine Anchoring Solutions

🔧 Product Description

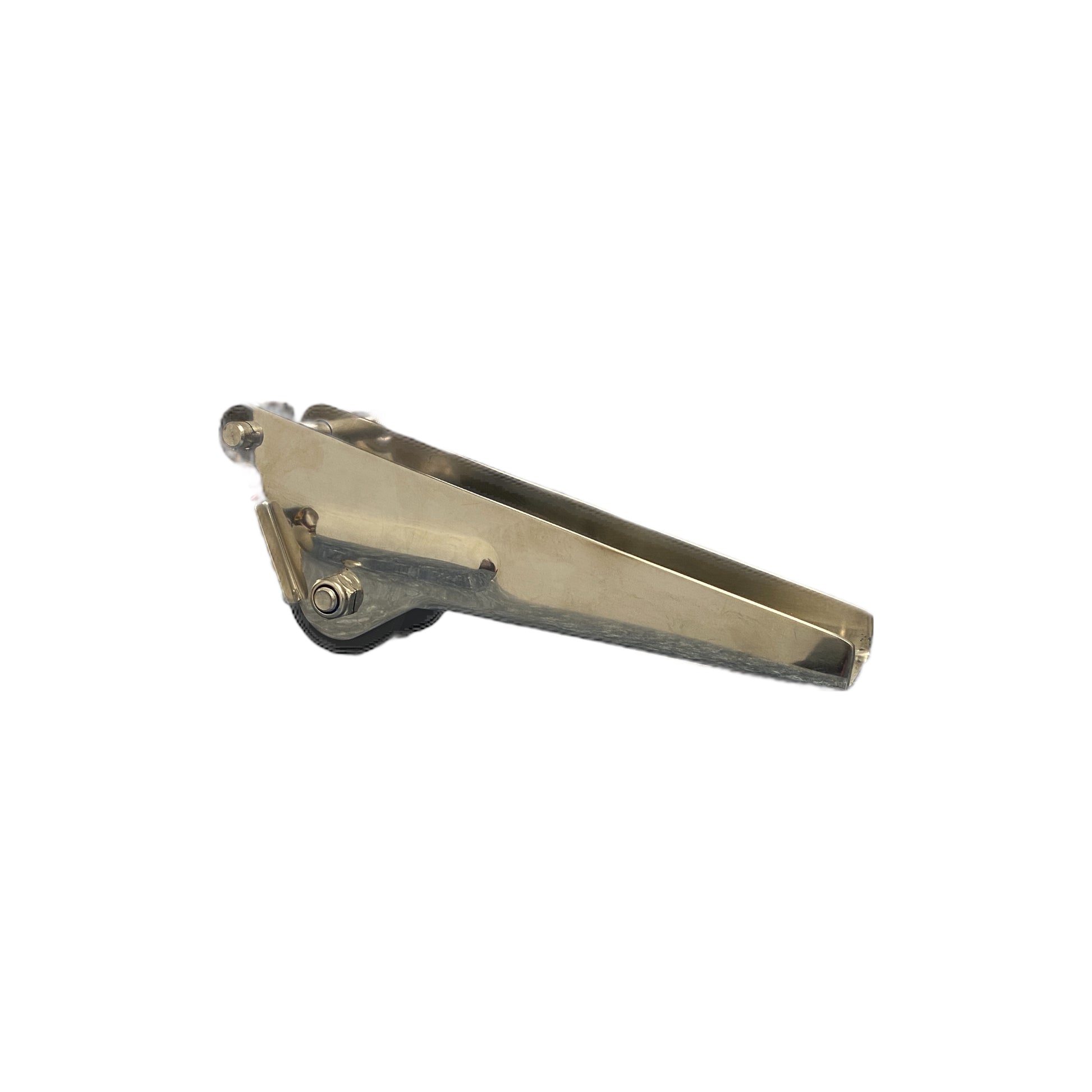

6" Stainless Steel Bow Roller with Black Roller - Part Number: 408609

A 304 stainless-steel bow roller with a longer 150mm mounting base and black replaceable roller. It supports anchor rope, chain and shank movement across the bow and accepts compatible nose sections for improved anchor capture.

⚙️ Key Features

• 304 stainless-steel frame

• Black replaceable roller

• Longer 6-inch-class base for increased support

• Compatible with standard and narrow-high nose sections

• Suitable for manual and powered anchor retrieval systems

📏 Specifications

• Mounting-base length: Approximately 150mm

• Mounting-base width: Approximately 50mm

• Internal frame width: Approximately 52mm

• Front opening: Approximately 50mm

• Replacement roller: 408619

• Replacement pin kit: 402226

🔄 Cross Reference & Comparable Options

• Shorter red-roller option: 408606

• Compatible standard nose section: 408614

• Compatible narrow-high nose section: 408624

🛠️ Installation & Use

• Position to provide full hull clearance for the selected anchor

• Through-bolt to a reinforced deck or bow plate

• Align with the rode lead to avoid chain rubbing against the frame

• Confirm the anchor shank sits securely without side loading

• Use an independent anchor restraint when underway

📦 Condition

• Brand new

• Supplied as one 6" stainless-steel bow roller

• Supplied in original or equivalent packaging
