408611 Stainless Steel Anchor Device 4" | Marine Anchoring Solutions

🔧 Product Description

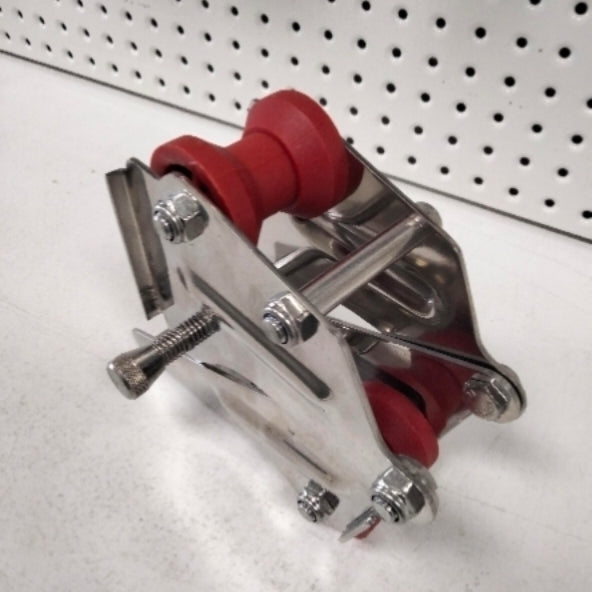

4" Stainless Steel Anchor Device with Red Rollers - Part Number: 408611

A compact stainless-steel anchor device combining a 100mm bow-roller base with a forward nose section and two red rollers. The two-stage support guides the anchor shank and improves capture as the anchor approaches the bow.

⚙️ Key Features

• Stainless-steel frame and articulated nose-section format
• Two red rollers support chain and anchor shank
• Compact 4-inch-class base
• Improves anchor alignment during retrieval
• Replaceable rollers and pin hardware

📏 Specifications

• Mounting-base length: Approximately 100mm
• Mounting-base width: Approximately 50mm
• Internal width: Approximately 52mm
• Front opening: Approximately 63mm
• Main roller: 761106
• Nose roller: 761105
• Replacement pin kit: 402226

🔄 Cross Reference & Comparable Options

• Longer red-roller version: 408613
• Longer black-roller version: 408615

🛠️ Installation & Use

• Check anchor fluke, shank and shackle clearance through the forward opening
• Mount to a reinforced bow using through-bolts and suitable backing
• Align with the windlass or manual rope lead
• Ensure both rollers rotate freely before loading the system
• Secure the anchor separately for travel

📦 Condition

• Brand new
• Supplied as one 4" stainless-steel anchor device
• Supplied in original or equivalent packaging
