🔧 Product Description

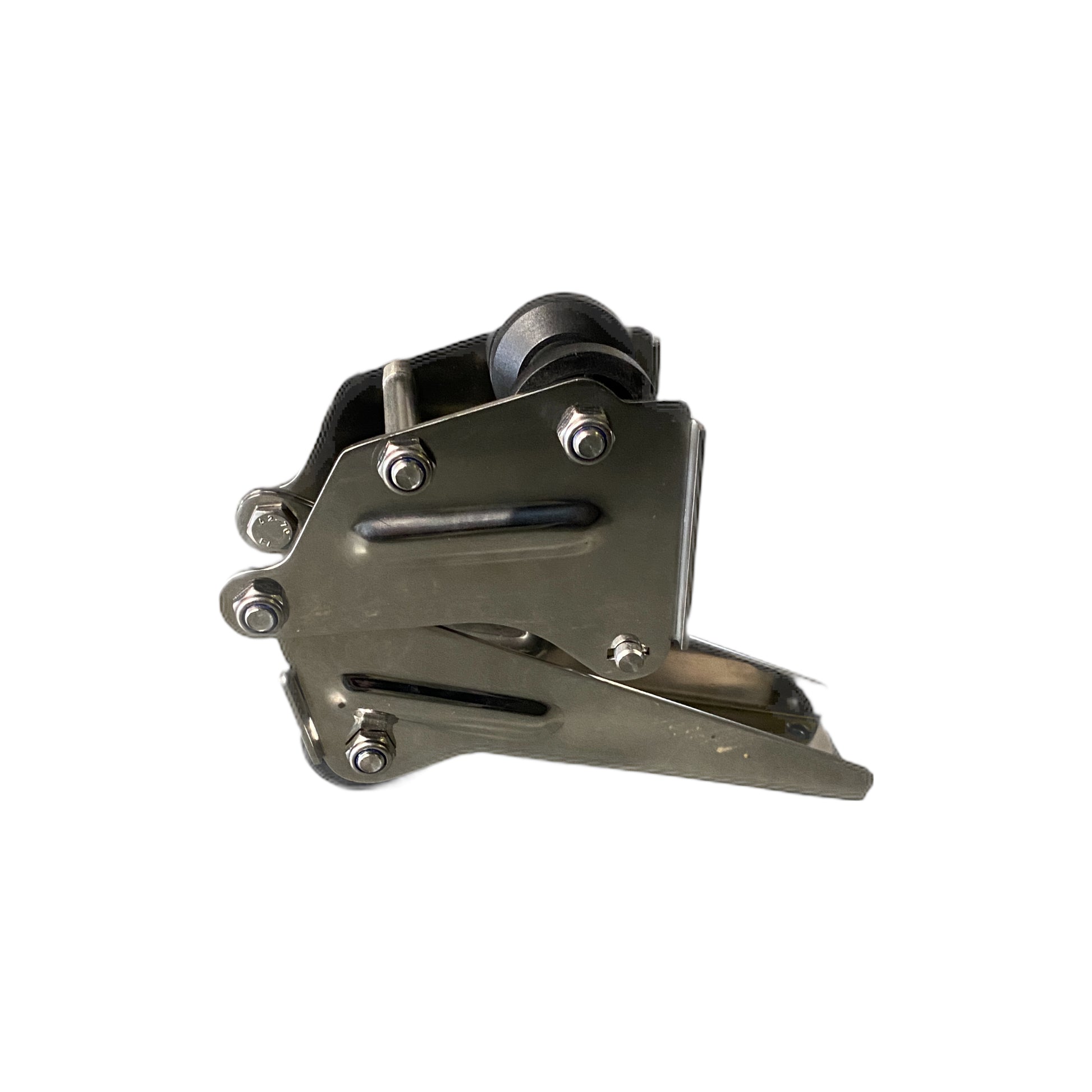

6" Stainless Steel Anchor Device with Black Rollers - Part Number: 408615
A stainless-steel anchor device with a 150mm mounting base, articulated forward support and black replaceable rollers. It guides rope, chain and the anchor shank over the bow while helping the anchor centre itself during retrieval.
⚙️ Key Features
- Stainless-steel frame
- Black main and nose rollers
- Long 6-inch-class mounting base
- Two-stage anchor-shank support
- Replaceable rollers and pin hardware
📏 Specifications
- Mounting-base length: Approximately 150mm
- Mounting-base width: Approximately 50mm
- Internal width: Approximately 52mm
- Front opening: Approximately 63mm
- Main roller: 408619
- Nose roller: 408618
- Replacement pin kit: 402226
🔄 Cross Reference & Comparable Options
- Red-roller 6-inch version: 408613
- Simple black bow roller without nose section: 408609
🛠️ Installation & Use
- Confirm anchor and shackle clearance before drilling the deck
- Through-bolt to a properly reinforced bow
- Align with the windlass or rope lead to prevent side chafe
- Check both rollers remain free and correctly retained
- Fit an independent anchor lock or safety restraint
📦 Condition
- Brand new
- Supplied as one 6" stainless-steel anchor device
- Supplied in original or equivalent packaging
