🔧 Product Description

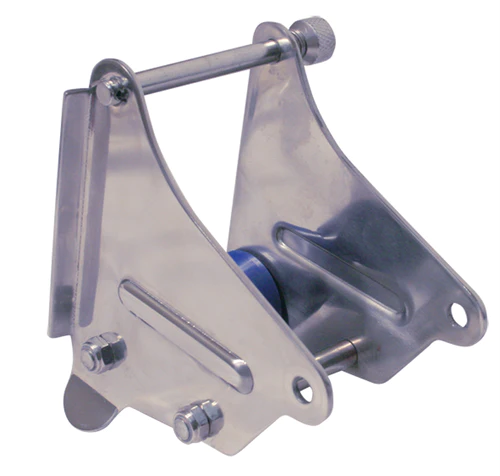

Narrow-High Stainless Steel Bow-Roller Nose Section - Part Number: 408624
A taller narrow-profile stainless-steel nose section for compatible 408606 and 408609 bow rollers. Its approximately 90mm front opening provides additional vertical clearance for anchors or shackles that do not pass comfortably through the standard 408614 nose section.
⚙️ Key Features
- Stainless-steel narrow-high frame
- Increased vertical front opening
- Red replaceable nose roller
- Compatible with selected 4-inch and 6-inch bow rollers
- Serviceable bolt and pin hardware
📏 Specifications
- Internal width: Approximately 55mm
- Front opening: Approximately 90mm
- Replacement roller: 761105
- Replacement pin kit: 402226
- Attachment bolt kit: 402225
🔄 Cross Reference & Comparable Options
- Compatible bow rollers: 408606 and 408609
- Standard-height alternative: 408614
🛠️ Installation & Use
- Choose this version where greater vertical anchor/shackle clearance is required
- Attach with the matched bolt and pin hardware
- Confirm the anchor shank remains laterally supported within the 55mm internal width
- Check that the taller nose does not interfere with the pulpit or anchor hoop
- Do not install as a standalone load point
📦 Condition
- Brand new
- Supplied as one narrow-high stainless-steel nose section
- Supplied in original or equivalent packaging
