41103800 Isolation | Genuine Volvo Penta Part

🔧 Product Description

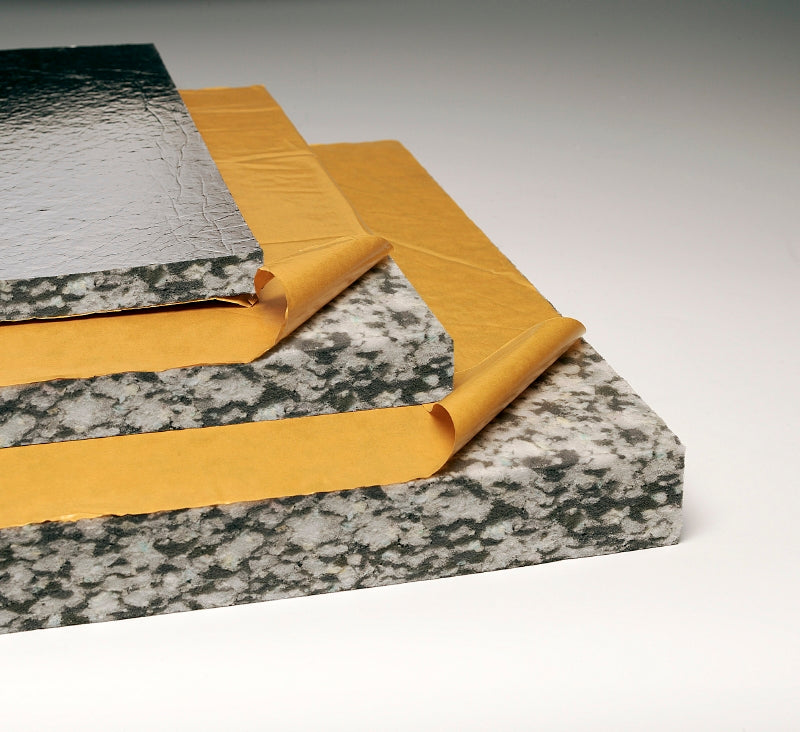

Genuine Volvo Penta sound absorbent panel, non-adhesive, 500 x 1000 mm and 20 mm thick, weighing 0.998 kg. The panels are made of recycled polyurethane foam at a density of 100 kg per cubic metre, faced with an oil-resistant aluminium foil that can be wiped clean, and treated with a fire-resistant formula that withstands up to 200 degrees C. They are approved for installation in boats CE marked to EU Directive 2013/53/EU. It supersedes part number 61050212, which was catalogued earlier as insulation, and self-adhesive panel 41103803 is the same 500 x 1000 mm and 20 mm size with a peel-off backing.

⚙️ Key Features

• Non-adhesive, 500 x 1000 mm, 20 mm thick
• Recycled polyurethane foam at 100 kg per cubic metre
• Oil-resistant aluminium foil facing
• Fire-resistant to ISO 3795, withstands up to 200 degrees C
• 0.998 kg
• Supersedes 61050212; self-adhesive equivalent is 41103803
• Made of recycled polyurethane foam
• Density of 100 kg/m3 (6.24 lb/ft3)
• Protection film of aluminium foil
• Fire proof registration ISO 3795 (FMVSS 302)
• Temperature resistance: max. 200 degrees C (390 degrees F)
• Oxygen index 24% according to ASTM D2863-91, and fulfils ISO 4589-3
• Approved for installation in boats CE marked according to EU Directive 2013/53/EU
• Covered with an oil resistant foil that is easily cleaned of oil spray
• Density: 100 kg/m3 (6.24 lb/ft3)
• Dimension: 500 x 1000 mm (20 x 40 in)
• Oxygen index: 24% (ASTM D2863-91)
• Rear side: Non-adhesive
• Temperature resistance: max. 200 degrees C (390 degrees F)
• Thickness: 20 mm
• Fits: Marine engine compartments

🔌 Function

Absorbs airborne engine noise inside the engine space so less of it reaches the accommodation.

⚠️ Common Signs of Failure

• Engine noise noticeably louder in the accommodation than it used to be
• Panel sagging away from the bulkhead
• Facing torn, oil-soaked or crumbling
• Foam compressed flat and no longer springy
• Loose fragments of foam collecting in the bilge

🛠️ Service Notes

• This version has no adhesive backing, so allow for the mechanical fixings or insulation hangers needed to hold it
• The sheets cut to shape with a sharp knife, and joins should be as tight as possible and covered with foil tape so noise cannot leak and water cannot soak into the material
• Thickness is chosen against the engine's noise characteristics between 100 and 8000 Hz, so 41103801 at 30 mm and 41103802 at 50 mm are the alternatives
• Fit the sheets so the joins are as tight as possible and cover them with foil tape, otherwise noise leaks through and water can be absorbed by the material
• Sound insulation hangers can be used for convenient mounting
• Choose the panel thickness against the engine's own noise characteristics across the 100-8000 Hz range; sound absorption is rated to DIN 52215

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 41103800 → Supersedes 61050212

OEM / Related Numbers

• 61050212 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
