41103805 Isolation | Genuine Volvo Penta Part

🔧 Product Description

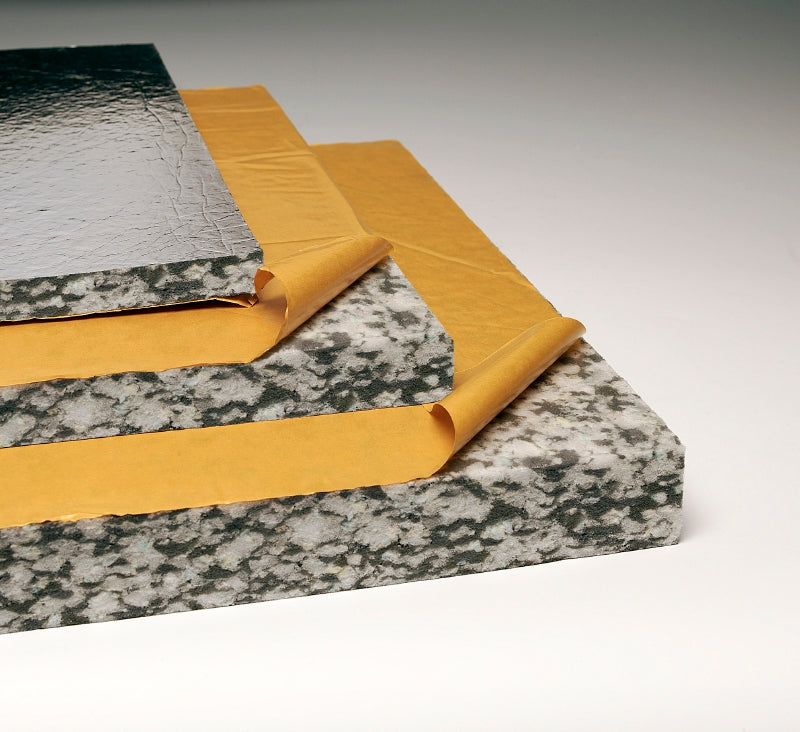

Genuine Volvo Penta sound absorbent panel, self-adhesive, 500 x 1000 mm and 50 mm thick, weighing 2.948 kg. The panels are made of recycled polyurethane foam at a density of 100 kg per cubic metre, faced with an oil-resistant aluminium foil that can be wiped clean, and treated with a fire-resistant formula that withstands up to 200 degrees C; they are approved for boats CE marked to EU Directive 2013/53/EU. It is the thickest of the self-adhesive set and, unlike the others, does not supersede an earlier number.

⚙️ Key Features

• Self-adhesive, 500 x 1000 mm, 50 mm thick
• Recycled polyurethane foam at 100 kg per cubic metre
• Oil-resistant aluminium foil facing
• Fire-resistant to ISO 3795, withstands up to 200 degrees C
• 2.948 kg
• Thickest of the self-adhesive set
• Made of recycled polyurethane foam
• Density of 100 kg/m3 (6.24 lb/ft3)
• Protection film of aluminium foil
• Fire proof registration ISO 3795 (FMVSS 302)
• Temperature resistance: max. 200 degrees C (390 degrees F)
• Oxygen index 24% according to ASTM D2863-91, and fulfils ISO 4589-3
• Approved for installation in boats CE marked according to EU Directive 2013/53/EU
• Covered with an oil resistant foil that is easily cleaned of oil spray
• Density: 100 kg/m3 (6.24 lb/ft3)
• Dimension: 500 x 1000 mm (20 x 40 in)
• Oxygen index: 24% (ASTM D2863-91)
• Rear side: Self-adhesive
• Temperature resistance: max. 200 degrees C (390 degrees F)
• Thickness: 50 mm
• Fits: Marine engine compartments

🔌 Function

Absorbs airborne engine noise inside the engine space so less of it reaches the accommodation.

⚠️ Common Signs of Failure

• Panel peeling away at a corner or edge
• Engine noise noticeably louder in the accommodation
• Facing torn, oil-soaked or crumbling
• Foam compressed flat and no longer springy
• Adhesive gone hard and no longer holding

🛠️ Service Notes

• 50 mm needs real clearance, so drop to 41103804 at 30 mm or 41103803 at 20 mm if space is tight
• The surface must be clean, dry and grease-free or the adhesive will let go within a season
• Cut with a sharp knife, keep joins tight and tape them with foil tape, and keep panels clear of hot exhaust surfaces and turbochargers
• Fit the sheets so the joins are as tight as possible and cover them with foil tape, otherwise noise leaks through and water can be absorbed by the material
• Sound insulation hangers can be used for convenient mounting
• Choose the panel thickness against the engine's own noise characteristics across the 100-8000 Hz range; sound absorption is rated to DIN 52215

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
