41130-88L00 Suzuki DF60A Clamp Bracket Shaft | Genuine Used Part

🔧 Product Description

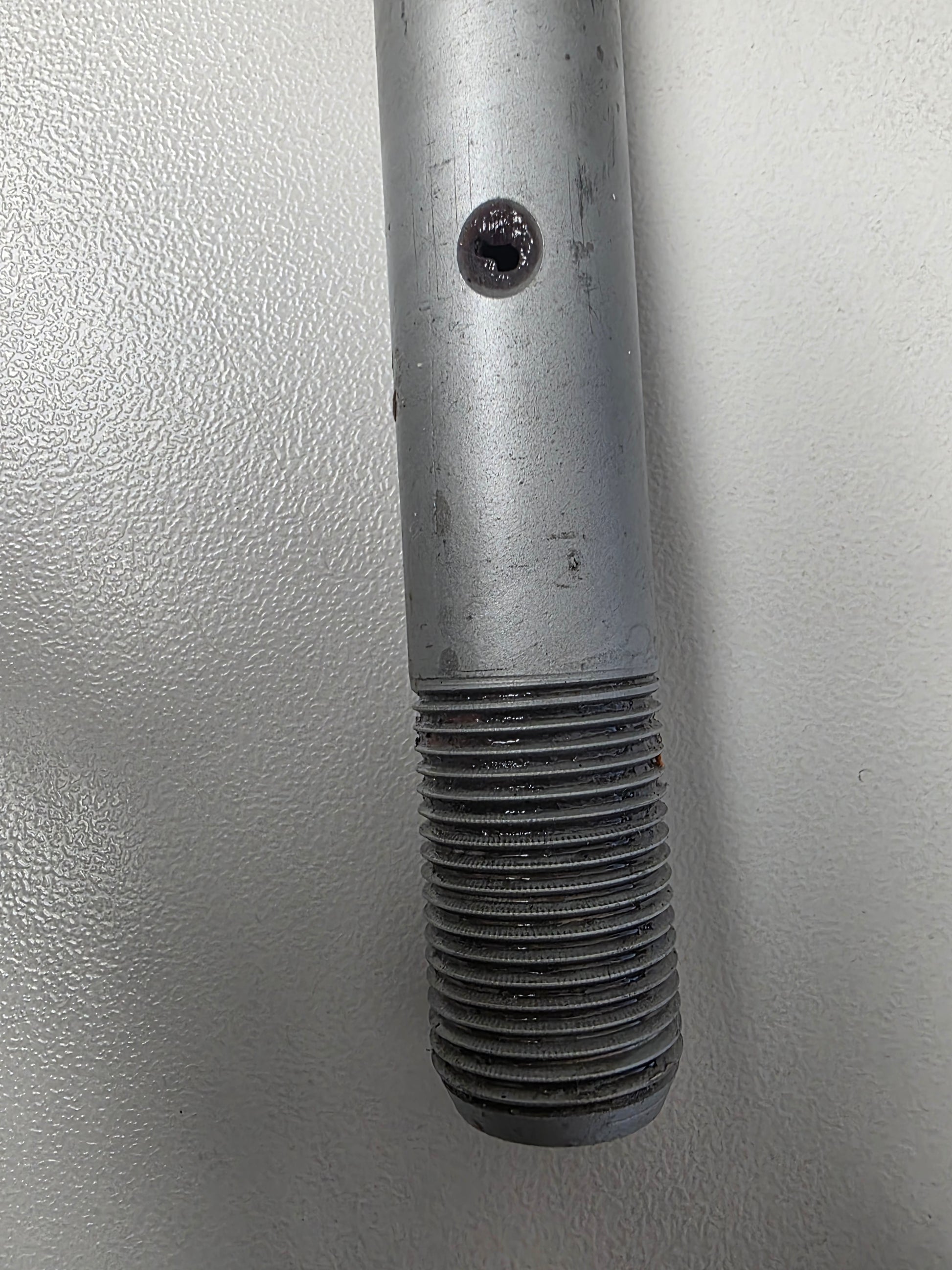

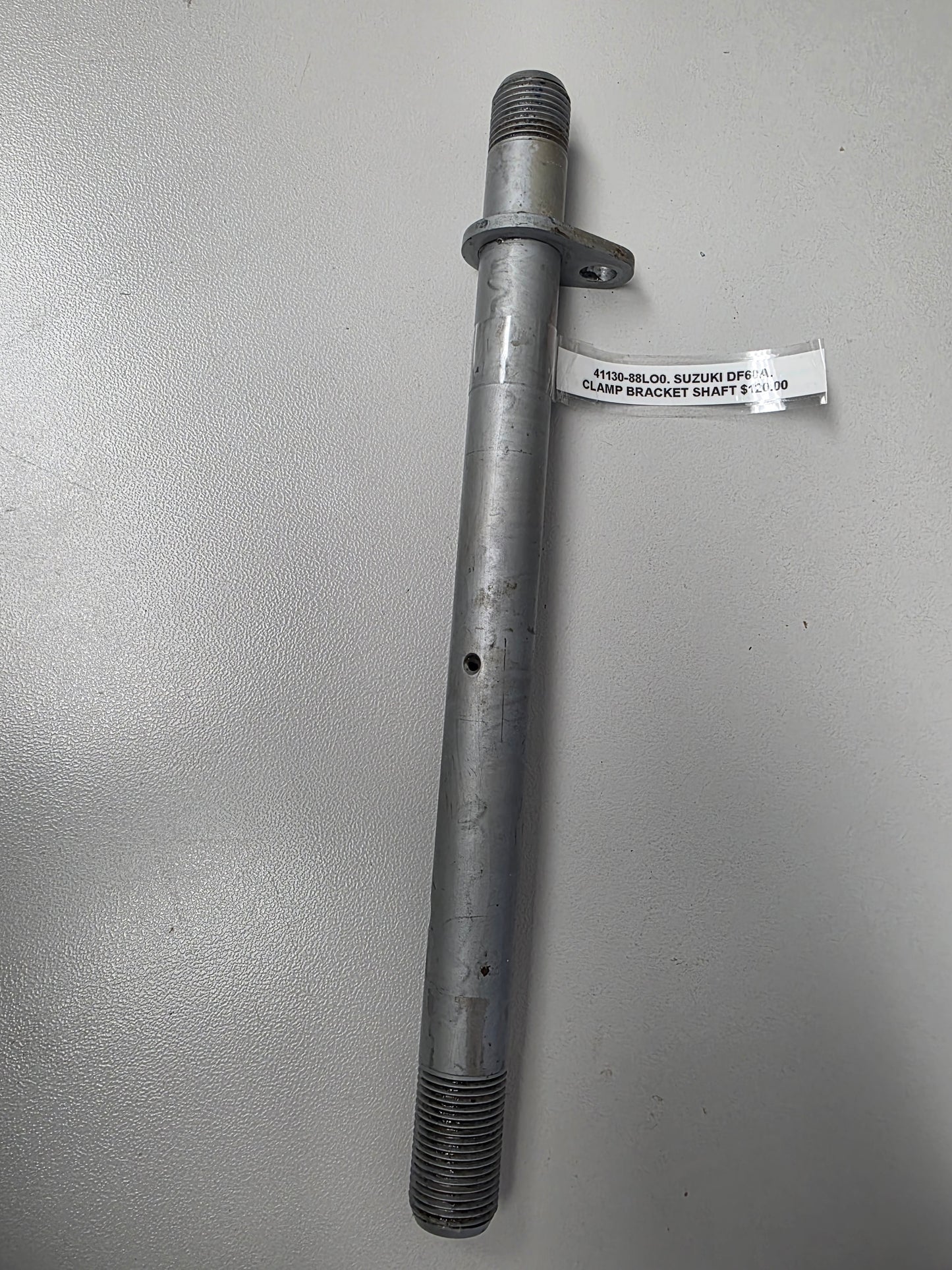

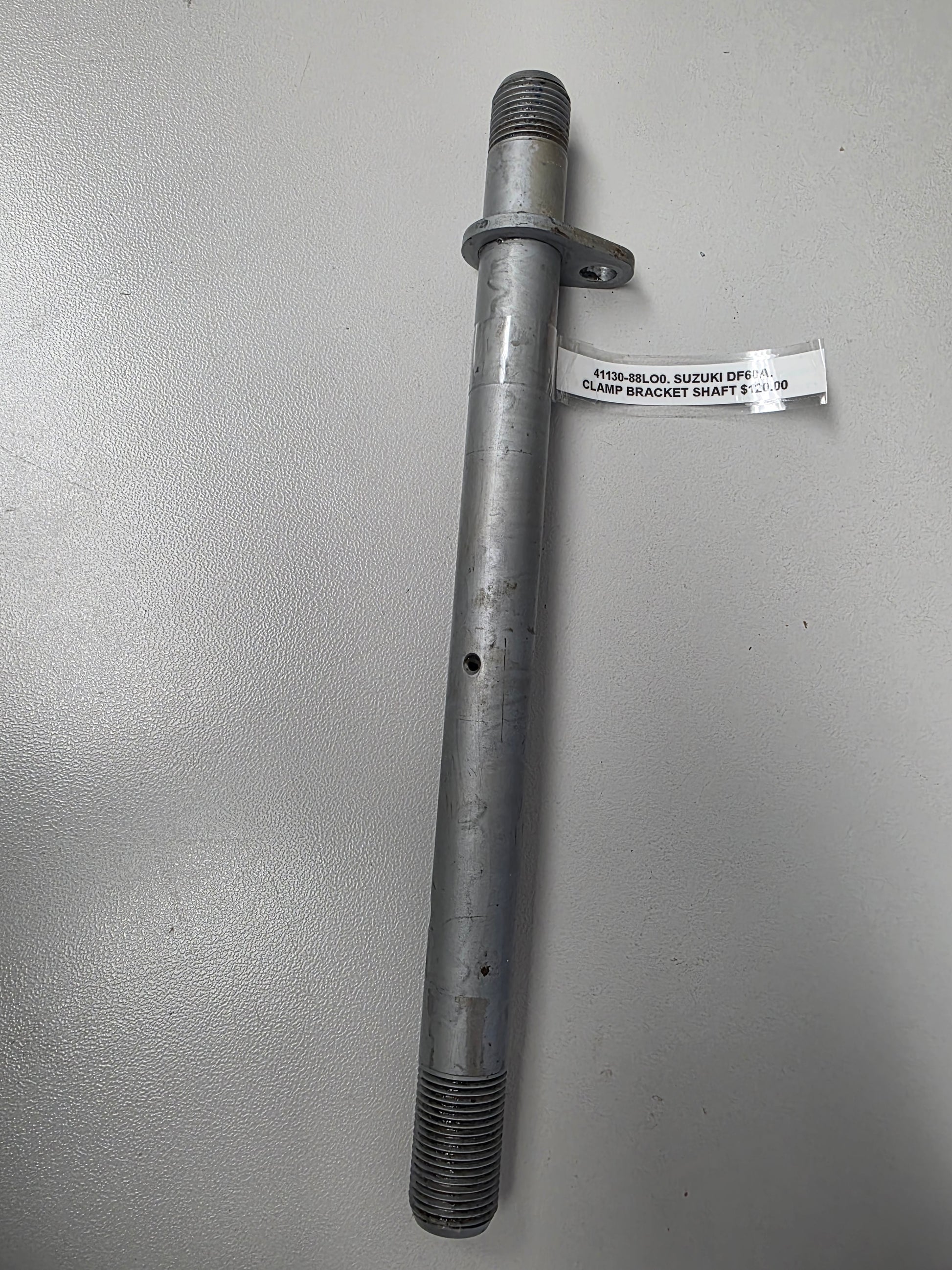

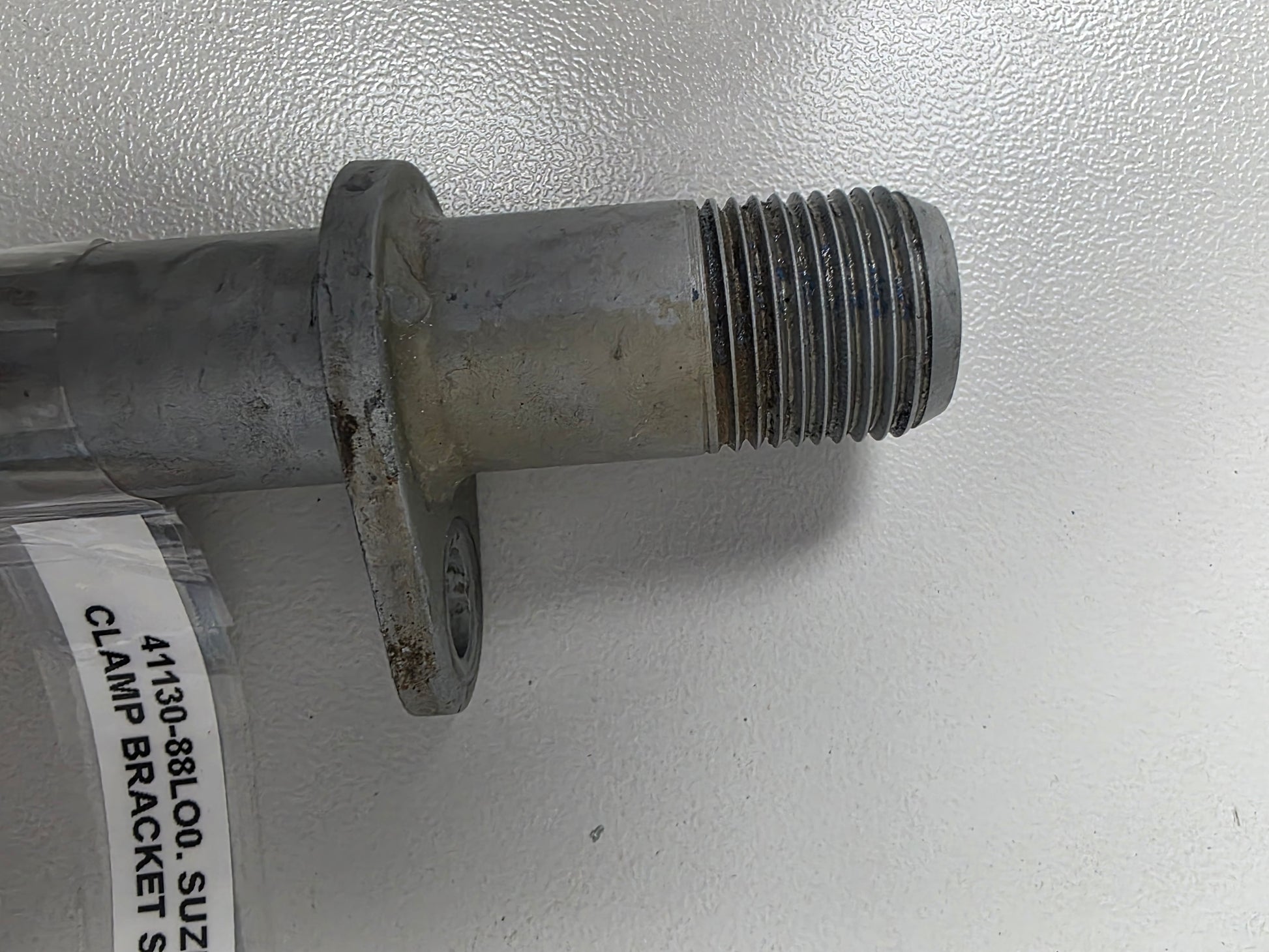

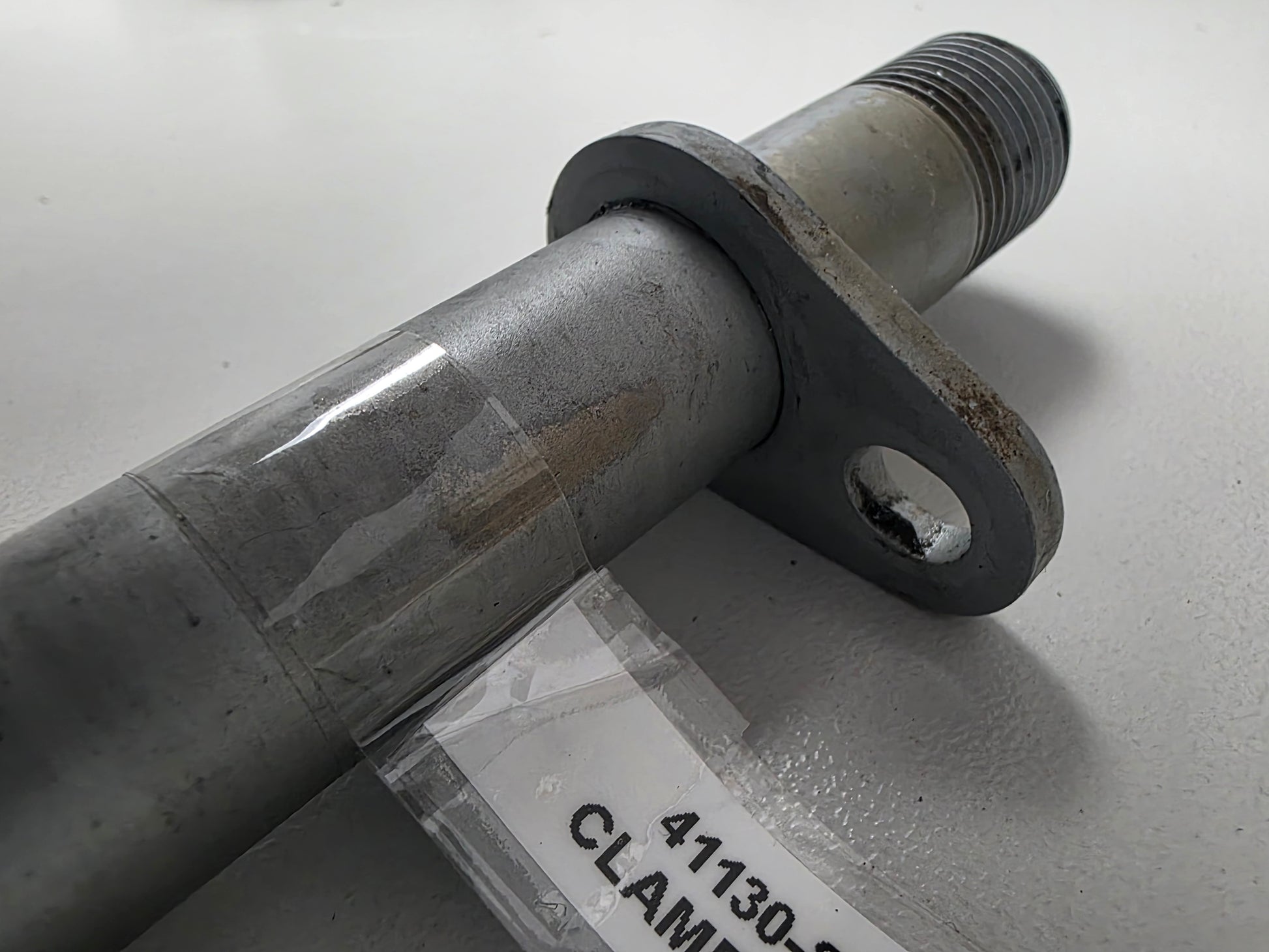

Genuine Suzuki DF40A / DF50A / DF60A Clamp-Bracket Shaft - Part Number: 41130-88L00

A genuine Suzuki transverse clamp-bracket shaft used in the stern-bracket and swivel assembly of early DF40A, DF50A and DF60A four-stroke outboards. The shaft joins the port and starboard clamp brackets and provides the structural axis for the tilt and transom-mounting assembly.

⚙️ Key Features

• Genuine Suzuki OEM clamp-bracket shaft
• Correct part number 41130-88L00
• Used in the DF40A-DF60A stern-bracket assembly
• Precision-machined corrosion-resistant shaft
• Works with the matching clamp brackets, washers, nut and end caps

🚤 Compatibility

• Suzuki DF40A early-production model families
• Suzuki DF50A early-production model families
• Suzuki DF60A T, TH, QH, WT and WQH model families where 41130-88L00 is listed
• Documented 2010 DF60A applications beginning VIN 06002F-010001
• Documented 2010-2011 clamp-bracket catalogues
• Later DF40A / DF50A / DF60A models commonly use 41130-88L10

🔌 Function

The shaft ties both clamp brackets together and forms the main structural pivot across the transom bracket, maintaining alignment during trimming, tilting and steering loads.

⚠️ Common Signs of Failure

• Shaft is bent
• Corrosion damages the bearing surfaces
• Clamp brackets develop side play
• Shaft nut will not retain torque
• Tilt movement becomes stiff
• End caps or washers no longer seat correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 41130-88L00 is the documented early 88L-series shaft
• 41130-88L10 is a later or alternate shaft used on applicable later models and configurations
• The 88L10 shaft is not a universal supersession without confirming clamp-bracket and VIN configuration

OEM / Related Numbers

• 41130-88L00
• 41130-88L00-000
• 41130-88L10 later / alternate shaft
• 41111-88L11-0EP starboard clamp bracket
• 41121-88L00-0EP port clamp bracket
• 41135-93J11 shaft washer
• 09159-22006 shaft nut
• 41153-94500 end cap

Aftermarket / Verified Equivalents

• No verified branded aftermarket shaft
• Genuine Suzuki 41130-88L00 is the direct replacement for early assemblies
• Genuine 41130-88L10 is an alternate later OEM part only where the VIN catalogue specifies it
• Used genuine shafts must be checked for bending, corrosion and worn bearing surfaces

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
