41470A25 Oil Injection Warning Module | Genuine Used Part

41470A25 Oil Injection Warning Module | Genuine Used Part

$300.00 AUD
$300.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

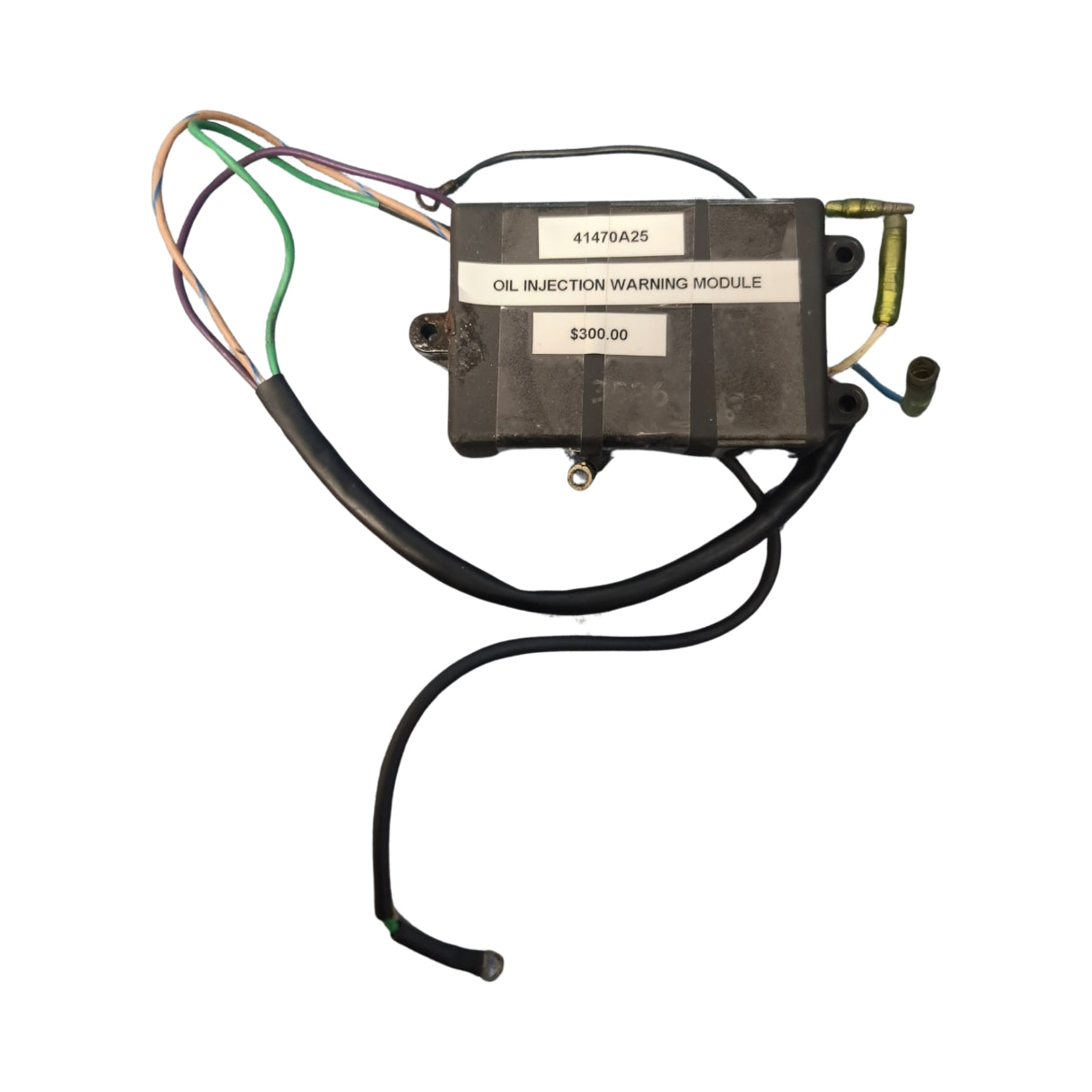

Genuine Mercury Oil Injection Warning Module - Part Number: 41470A25

A genuine Mercury oil injection warning module used in selected two-stroke outboard oil-injection alarm systems. This module monitors oil-injection and warning-circuit signals and activates the warning horn when a low-oil or oil-system fault condition is detected.

⚙️ Key Features

  • Genuine Mercury oil injection warning module
  • Correct Mercury part number 41470A25
  • Module assembly for Mercury two-stroke oil-injection warning systems
  • Related to 41470A22 and 41470A26 warning-module family references
  • Must be matched by serial-numbered wiring diagram and warning-horn circuit

🚤 Compatibility

Commonly used on

  • Mercury and Mariner two-stroke outboard oil-injection warning systems

Typically suits

  • Engine models:
  • Mercury V-135 two-stroke oil-injection warning-module applications
  • Mercury V-150 EFI / XRi oil-injection warning-module applications
  • Mercury V-175 two-stroke oil-injection warning-module applications
  • Mercury V-200 EFI / XRi oil-injection warning-module applications
  • Mercury 135HP / 150HP / 175HP / 200HP / 225HP two-stroke oil warning systems where the serial-numbered diagram specifies 41470A25
  • Mercury V-150 EFI - serial 0G760300 to 0G960499 detonation / temperature sensor electrical family using oil injection warning module 41470A25
  • HP Range: commonly 135HP - 225HP V6 two-stroke oil-injection applications where specified
  • Engine Type: Mercury / Mariner two-stroke outboard
  • System Type: Oil injection warning and alarm module
  • Serial Note: Confirm module number, wiring colours, warning horn circuit and exact Mercury serial-numbered electrical diagram before installation.

🔌 Function

The module monitors oil-injection and warning-system inputs, then activates the warning horn circuit when a low-oil or oil-system fault condition is detected.

⚠️ Common Signs of Failure

  • Warning horn does not sound during test or fault condition
  • Constant false oil alarm
  • Intermittent oil warning with verified oil level
  • Alarm module fault after sensor and wiring checks
  • Oil warning circuit not responding to test input
  • Heat or water damage to module casing
  • Incorrect alarm behaviour after engine harness inspection

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 41470A26 later related oil injection warning module reference
  • 41470A25 listed oil injection warning module reference
  • 41470A22 earlier related warning module reference
  • 41470A20 earlier related warning module reference
  • 41470A15 earlier related warning module reference

OEM / Related Numbers

  • 41470A25
  • 41470-A25
  • 41470A26
  • 41470-A26
  • 41470A22
  • 41470-A22
  • 41470A20
  • 41470A15
  • Oil injection warning module assembly
  • Low oil warning module assembly

Aftermarket / Verified Equivalents

  • Aftermarket low-oil warning modules are available for selected 41470-family Mercury applications
  • Direct replacement must be verified by module label, wire colours and engine serial number

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
