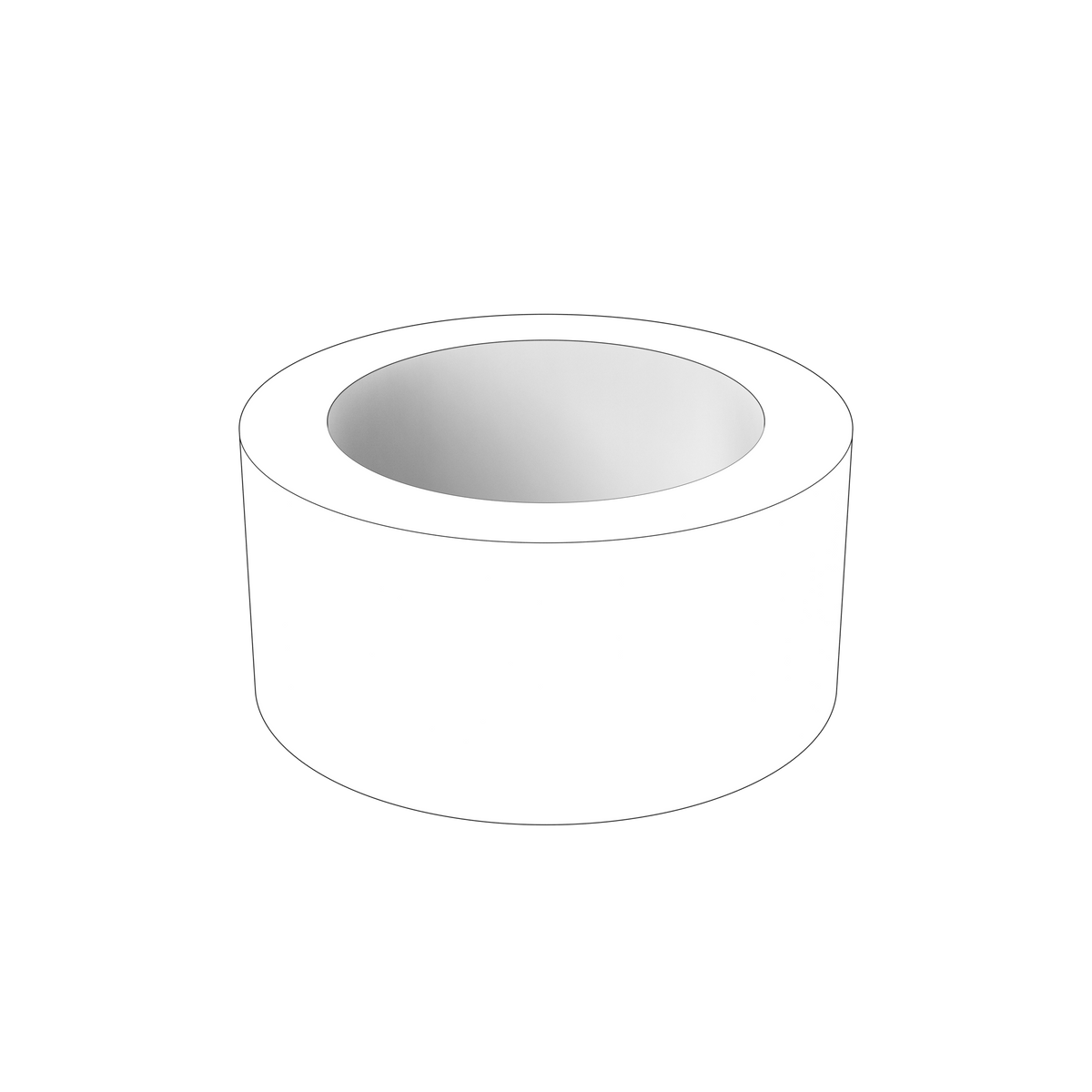

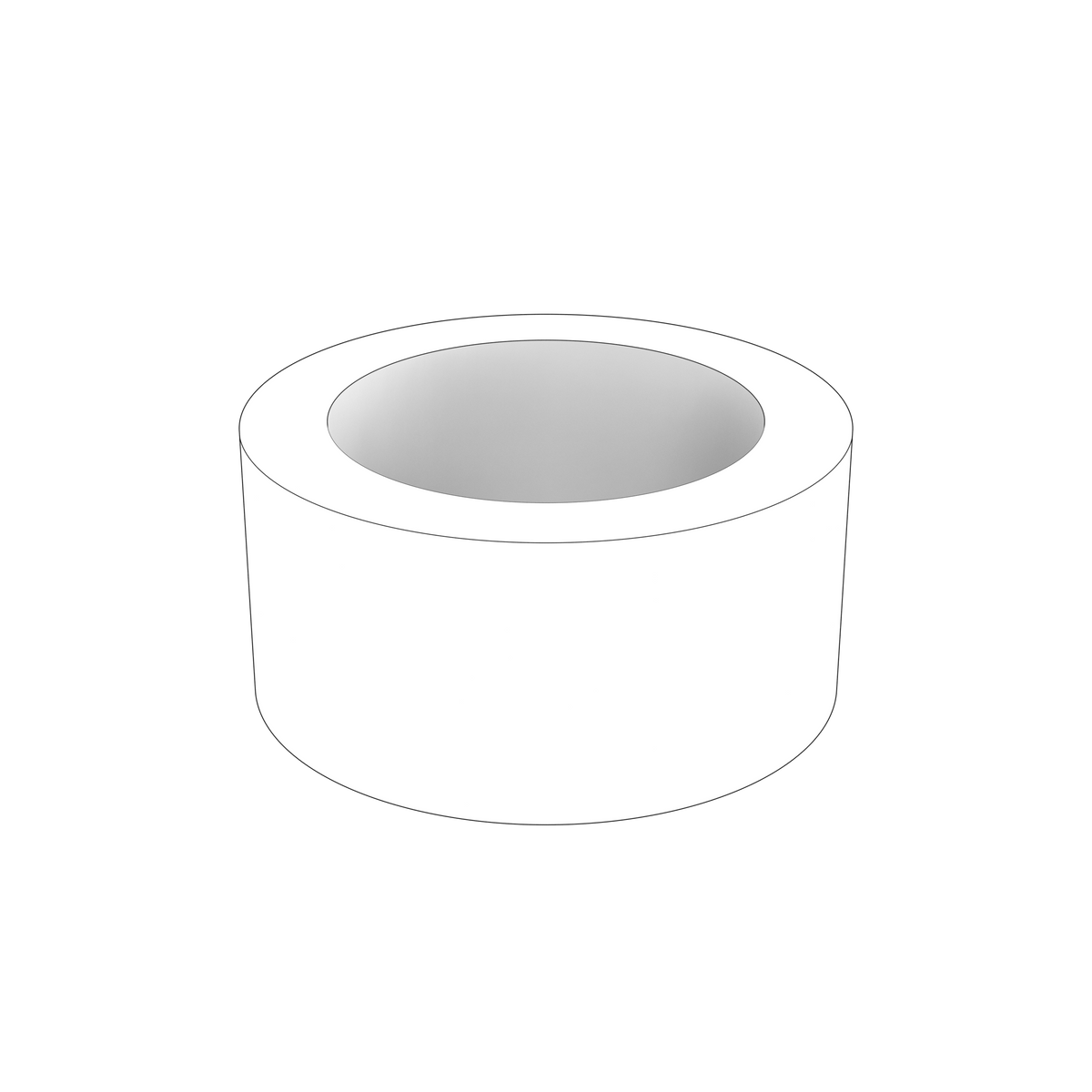

422217 Spacer Sleeve | Genuine Volvo Penta Part

422217 Spacer Sleeve | Genuine Volvo Penta Part

$15.69 AUD
$15.69 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta spacer sleeve from the Engine group, weighing 0.009 kg and listed for 139 applications across the TAD, TD, TWD, TID, THD and D series.

🚤 Compatibility

  • Engine Family: TAD, TD, TWD, TID, THD, D, DH

Full model list at the end of this description.

⚙️ Key Features

  • 0.009 kg
  • 139 applications across six engine series
  • Less than half the weight of spacer sleeve 422202
  • Quantity varies by assembly, most commonly 12

🔌 Function

Sets the correct spacing on a shaft or bolt so the assembly is clamped at the right stack height.

⚠️ Common Signs of Failure

  • Assembly loosening because the stack height has changed
  • Sleeve faces fretted, stepped or bell-mouthed
  • Sleeve crushed or cracked from overtightening
  • Component running out of alignment after reassembly

🛠️ Service Notes

  • Spacer sleeve 422202 is the heavier sleeve supplied within water pump 844635, so make sure which one the assembly takes
  • Measure the old sleeve before fitting, as a sleeve of the wrong length leaves the joint either slack or crushed

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta TID121KG, TID121KGP, TID121KP, TID121KPB, TID121L, TID121LG, TID121LGP, TID121LP, TID121LPB, TID121FG, TID121K, TID121K-87
  • Volvo Penta TD100G-85, TD100A, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85
  • Volvo Penta TID100KG, TID100KGP, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
  • Volvo Penta TD120C, TD120A, TD120G, TD120GG PP, TD120HP, TD120HPP, TD120GG
  • Volvo Penta TD121G-87, TD121GGP-87, TD121G, TD121GG, TD121GGP, TD121GP, TD121GPB
  • Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
  • Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
  • Volvo Penta TAD1030P, TAD1030G, TAD1030GE, TAD1030V, TAD1030VE
  • Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
  • Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
  • Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
  • Volvo Penta TAD730G, TAD730P, TAD730V
  • Volvo Penta TD610G, TD610M, TD610V
  • Volvo Penta TD70G, TD70B, TD70G-83
  • Volvo Penta THD102KB, THD102KD, THD102K-KB
  • Volvo Penta TWD1210G, TWD1210P, TWD1210V
  • Volvo Penta TWD1211V, TWD1211P, TWD1211G
  • Volvo Penta D100A, D100B
  • Volvo Penta TAD1031G, TAD1031GE
  • Volvo Penta TAD1230G, TAD1230V
  • Volvo Penta TD630ME, TD630VE
  • Volvo Penta TD730ME, TD730VE
  • Volvo Penta TID120FG, TID120HPP
  • Volvo Penta TID60DG, TID60D
  • Volvo Penta TID61AG, TID61AGP
  • Volvo Penta TWD1230ME, TWD1230VE
  • Volvo Penta TWD630ME, TWD630VE
  • Volvo Penta TWD740GE, TWD740VE
  • Volvo Penta D120A
  • Volvo Penta D45BPP
  • Volvo Penta D70B
  • Volvo Penta DH10A
  • Volvo Penta TAD1032GE
  • Volvo Penta TAD1231GE
  • Volvo Penta TAD1232GE
  • Volvo Penta TAD740GE
  • Volvo Penta TAD741GE
  • Volvo Penta TD1010G
  • Volvo Penta TD1030VE
  • Volvo Penta TD1210G
  • Volvo Penta TD45B
  • Volvo Penta TD60D-83
  • Volvo Penta TD640VE
  • Volvo Penta TD710G
  • Volvo Penta TID70G
  • Volvo Penta TWD1010G
  • Volvo Penta TWD1030ME
  • Volvo Penta TWD1031VE
  • Volvo Penta TWD1231VE
  • Volvo Penta TWD730ME
  • Volvo Penta TWD731VE
